A5/A3â„¢ Service Manual 046-001141-00 4 - 45
Calibration System Calibration

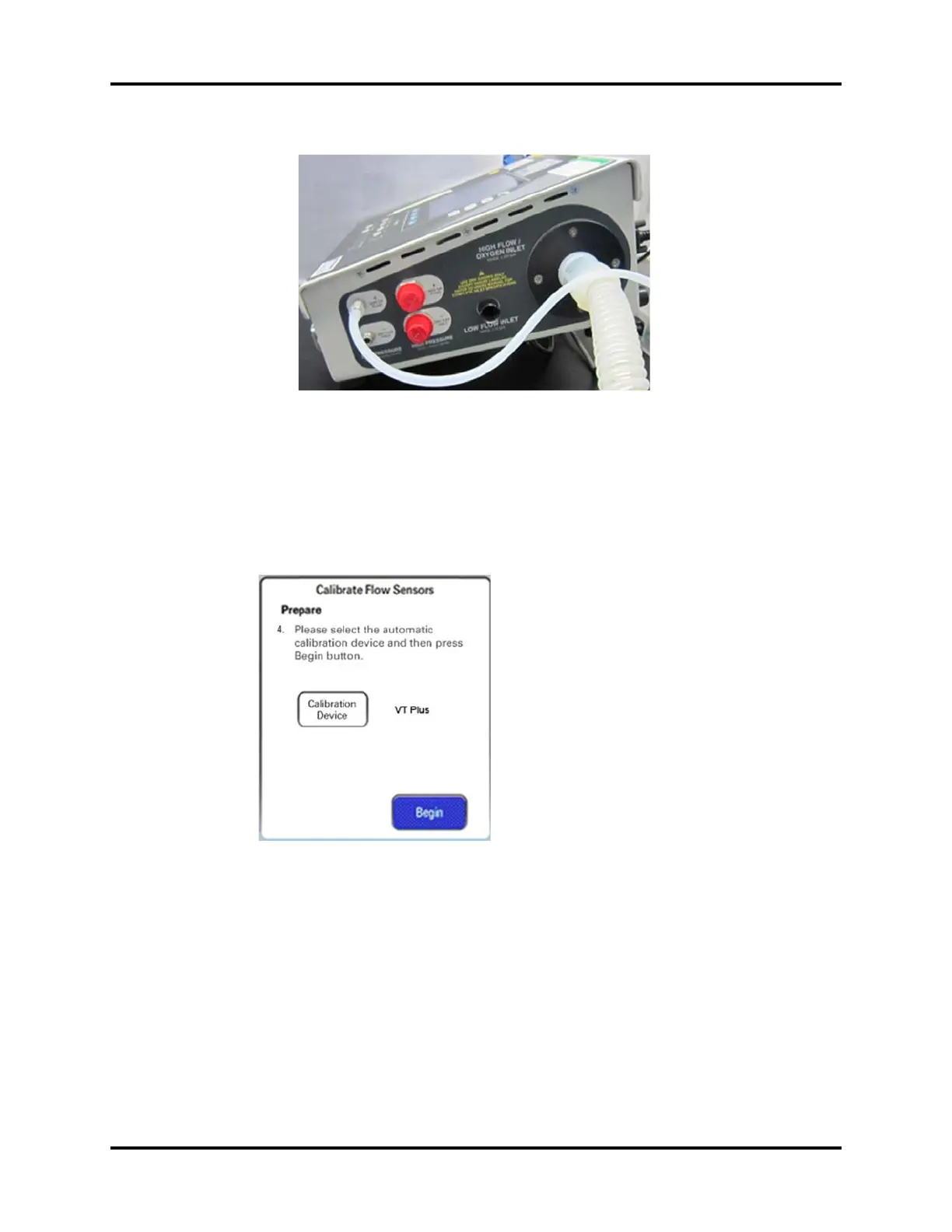

FIGURE 4-52 Pneumatic connections with the calibration device (VT-Plus)
6. Let the anesthesia machine calibration device be powered and manually zero the calibration
device first.
7. Set up the calibration device.
Refer to step 5. of ‘‘Auto Calibration’’ on page 4-19
8. Press the Next button to open the menu shown below.
FIGURE 4-53
9. After selecting the desired auto calibration device, select Begin to access the calibration screen
shown below. During the calibration, you can select Cancel to stop the calibration.
