System Calibration
Cal
ibration
4 - 58
046-001141-00
A5/A3™ Service Manual

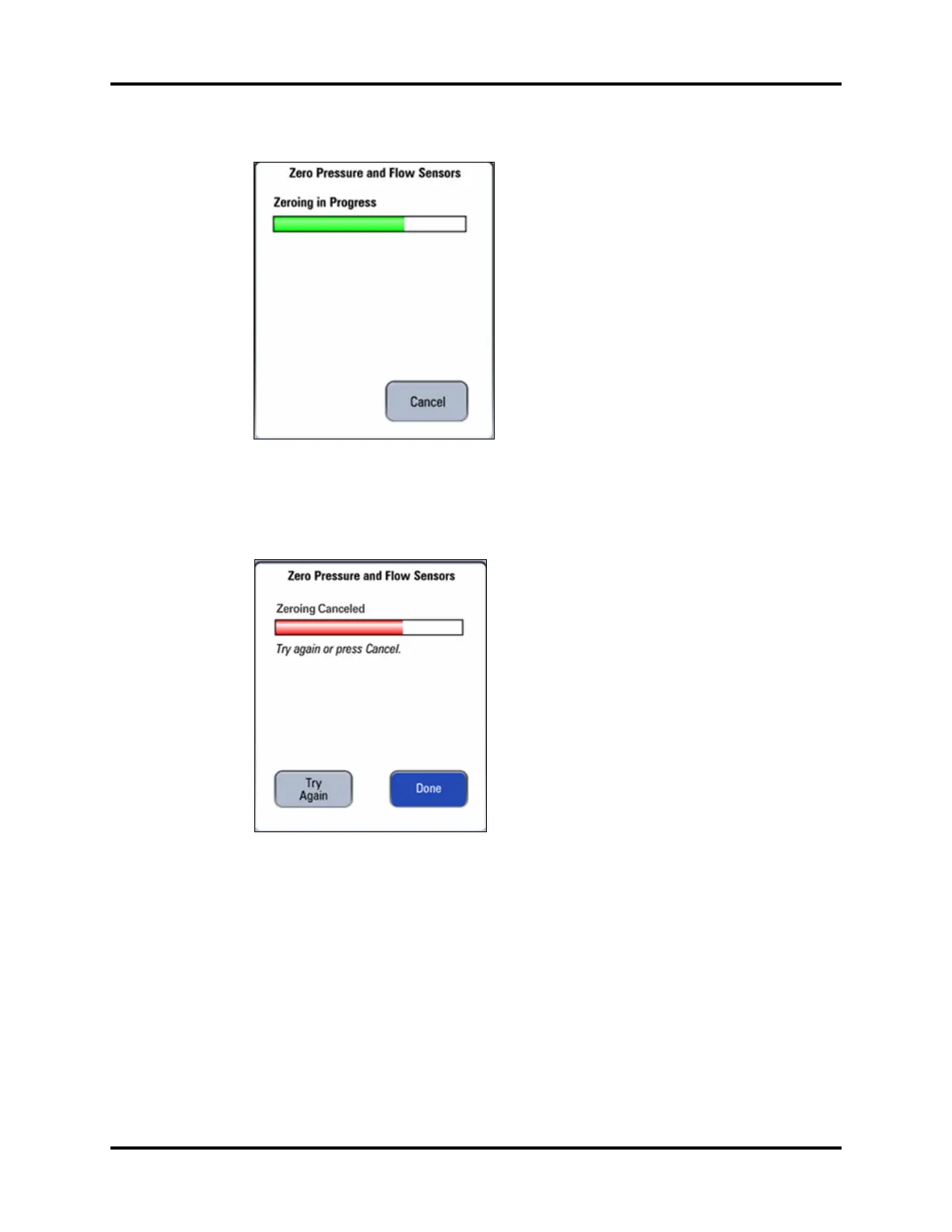

FIGURE 4-70
3.
The scree
n shown below is displa
yed if the ongoin
g zeroing is canceled. Select
T
r
y Again to do
the zeroing again.Select Done to exit the zeroing screen.
FIGURE 4-71
4.
The scre
en shown below is displa
ye
d if the zer
oing has failed. Select
Try Again to do the z
eroing
again.Select Done to exit the zeroing screen.
243
245
