Disassemble the Assemblies Repair and Disassembly
6 - 6 046-001141-00 A5/A3™ Service Manual
6.2.1.7 Remove the ORC Assembly
1. Open the service door.
2. Unplug the tubes from ORC assembly.
3. .Unscrew the two screws on the ORC assembly to remove the assembly.

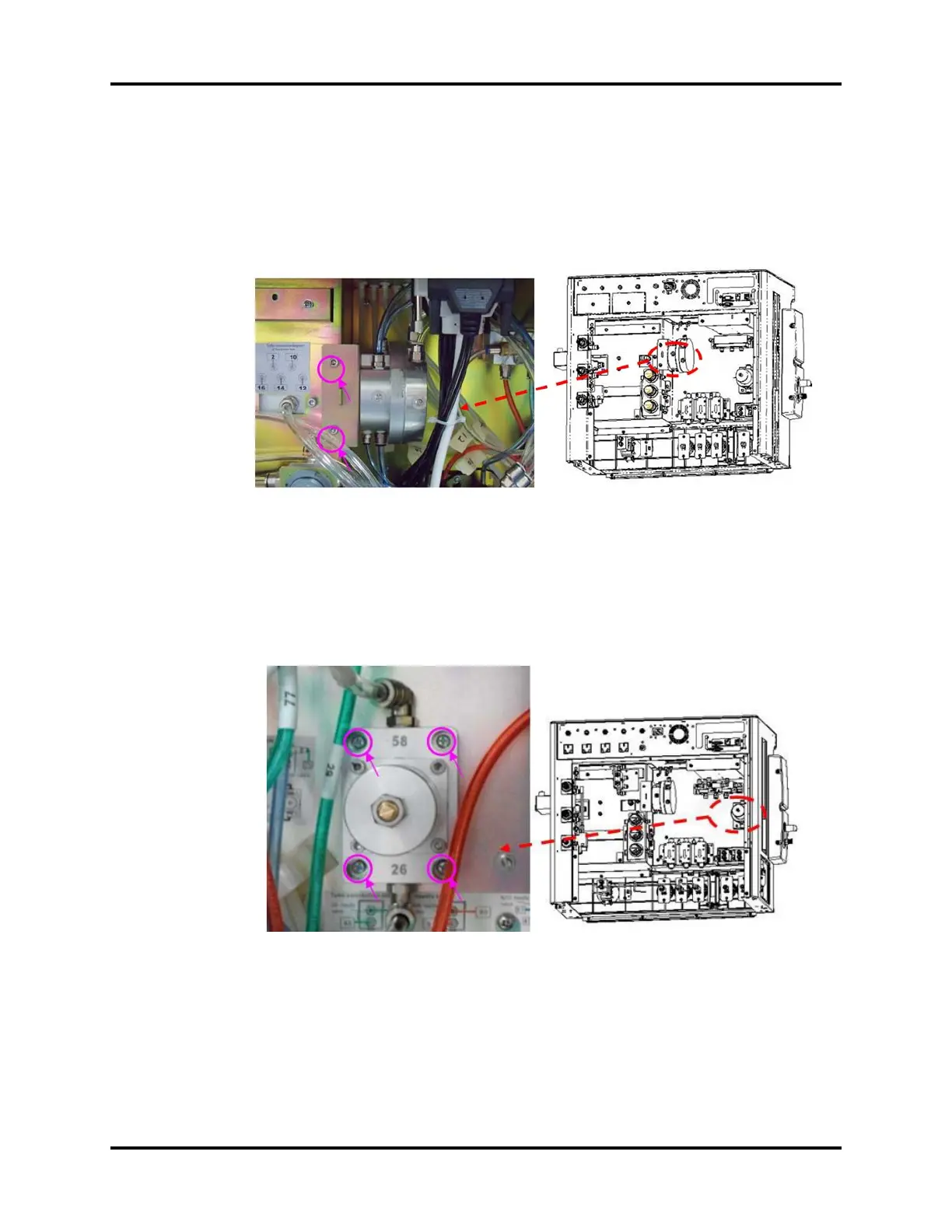

FIGURE 6-8
6.2.1.8 Remove the Back Pressure Valve Assembly
1. Open the service door.
2. Unplug the tubes from back pressure valve assembly.
3. Unscrew the four screws on the back pressure valve assembly to remove the assembly.
FIGURE 6-9
