A5/A3™ Service Manual 046-001141-00 6 - 7
Repair and Disassembly Disassemble the Assemblies
6.2.1.9 Replace the Lithium-ion Battery
1. Open the service door.
2. Unscrew the two screws on the battery box cover, and then you can take out the lithium-ion
battery.
3. Place the new lithium-ion battery into the battery box in the original direction to complete
battery replacement.

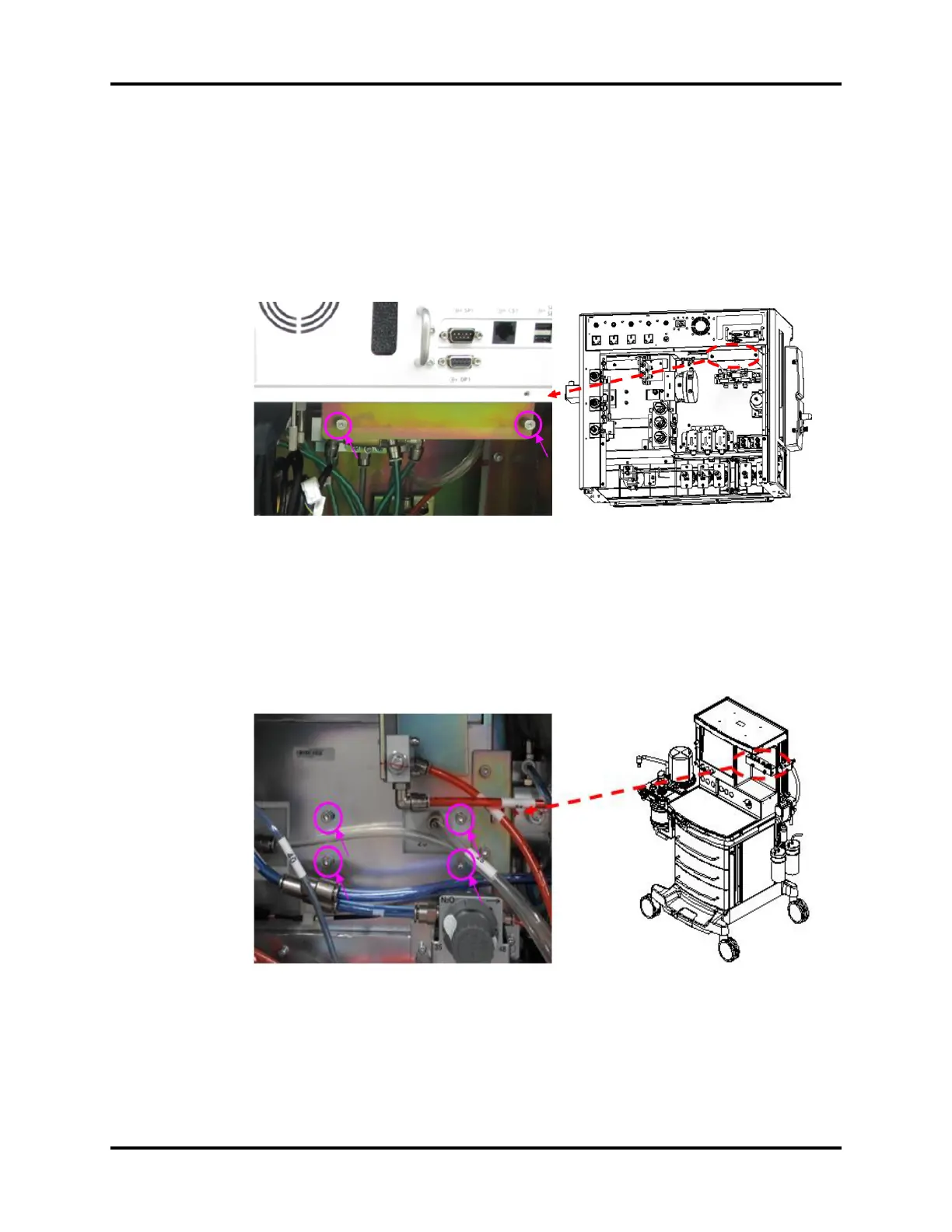

FIGURE 6-10
6.2.1.10 Remove the Vaporizer Manifold
1. Open the service door.
2. Unplug the tubes from the vaporizer manifold.
3. Unscrew the four screws and remove the vaporizer manifold.
FIGURE 6-11
