A5/A3™ Service Manual 046-001141-00 6 - 31
Repair and Disassembly Disassemble the Assemblies

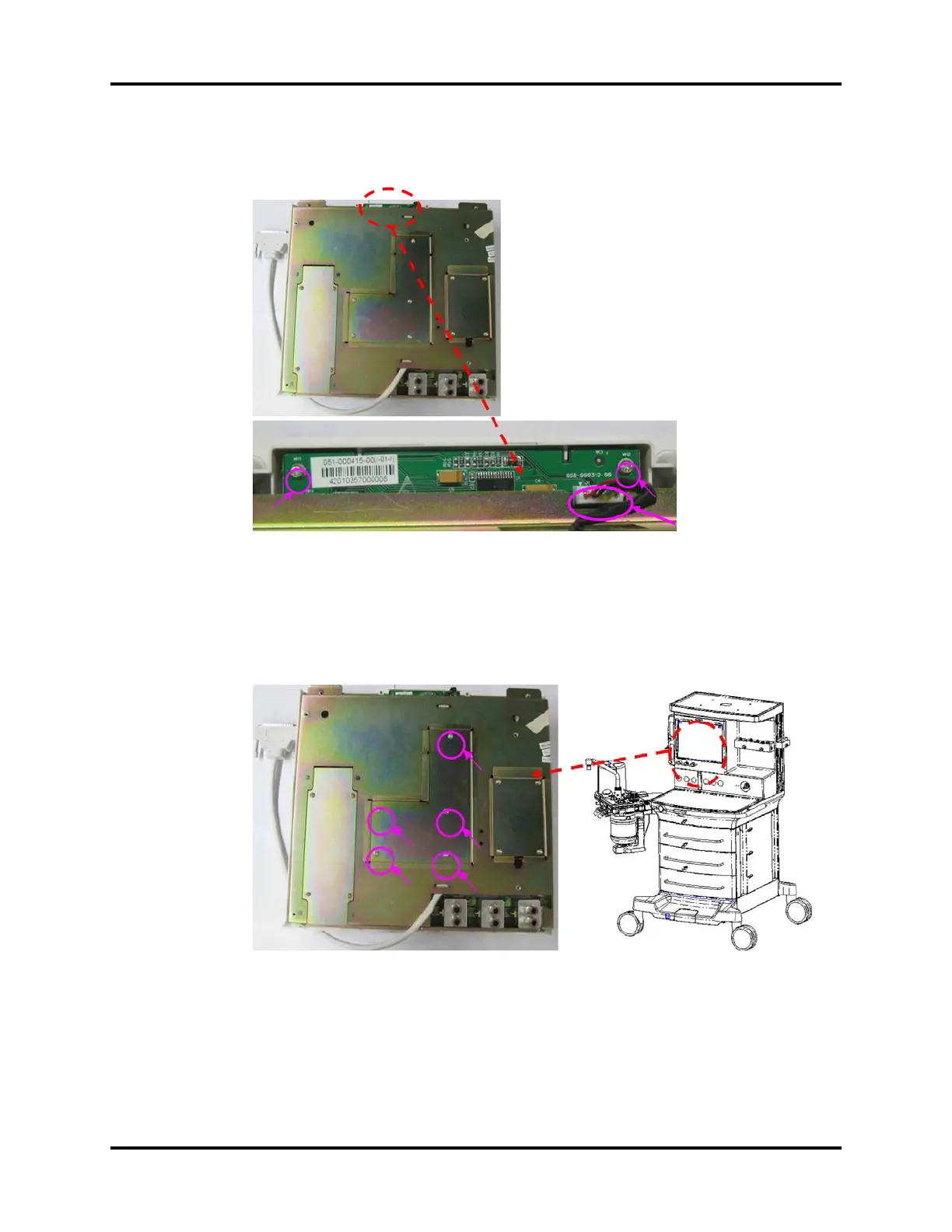

3. Remove the two mounting screws on the alarm lamp board to remove the board.
FIGURE 6-55
6.2.4.2 Remove the Display Adaptation Board
1. Remove display assembly and refer to “Disassemble the Display” on page 6-29..
2. Unscrew the five screws on the cover plate of the display mount.
FIGURE 6-56
3. Unplug the related cables from the display interface board.
4. Remove the four screws on the display interface board and remove the board.
