Disassemble the Assemblies
Repair and Disassemb
ly
6 - 32
046-001141-00
A5/A3™ Service Manual

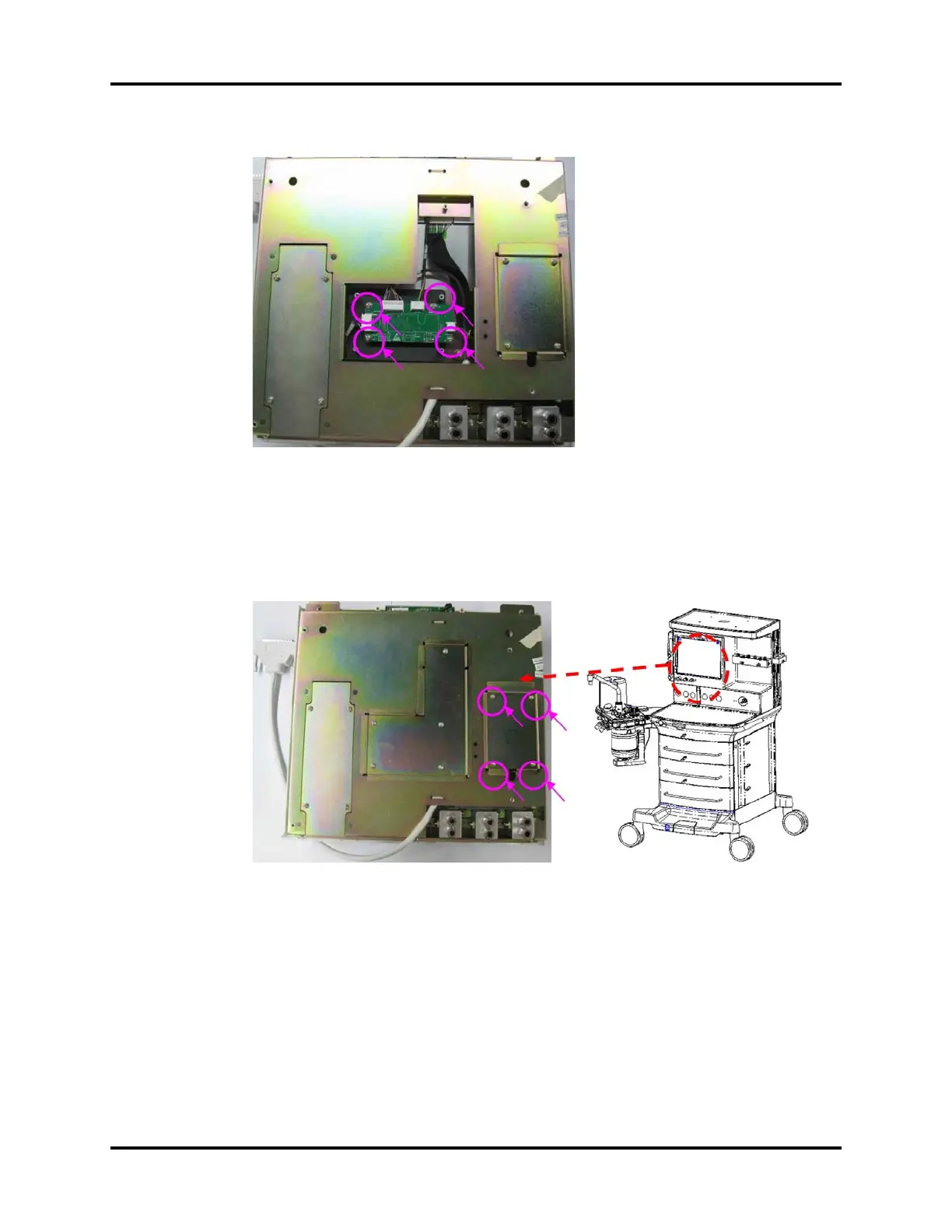

FIGURE 6-57
6.2.4.3
Remo
ve the
T
ouch Screen Con
trol Board
1.
Remove displa
y assembly.
2.
Remove the f
our screws and the cover pl
ate of the touch screen contr
ol board.
FIGURE 6-58
3.
Unplug the re
lated cables from
the touch scr
een control boar
d.
371
