A5/A3™ Service Manual 046-001141-00 1 - 25
Theory of Operation Gas Flow
1.3.4.5 Flow Display Assembly
The electronic flowmeter (26) and total flow meter (50) constitute the flow display assembly. Gases
from the flow adjust and control assembly and mixed gas going through the anesthetic agent
delivery device (vaporizer) are outputted. The electronic flowmeter (26) measures and displays the
flow of each gas. The total flow meter (50) displays the total gas flow.

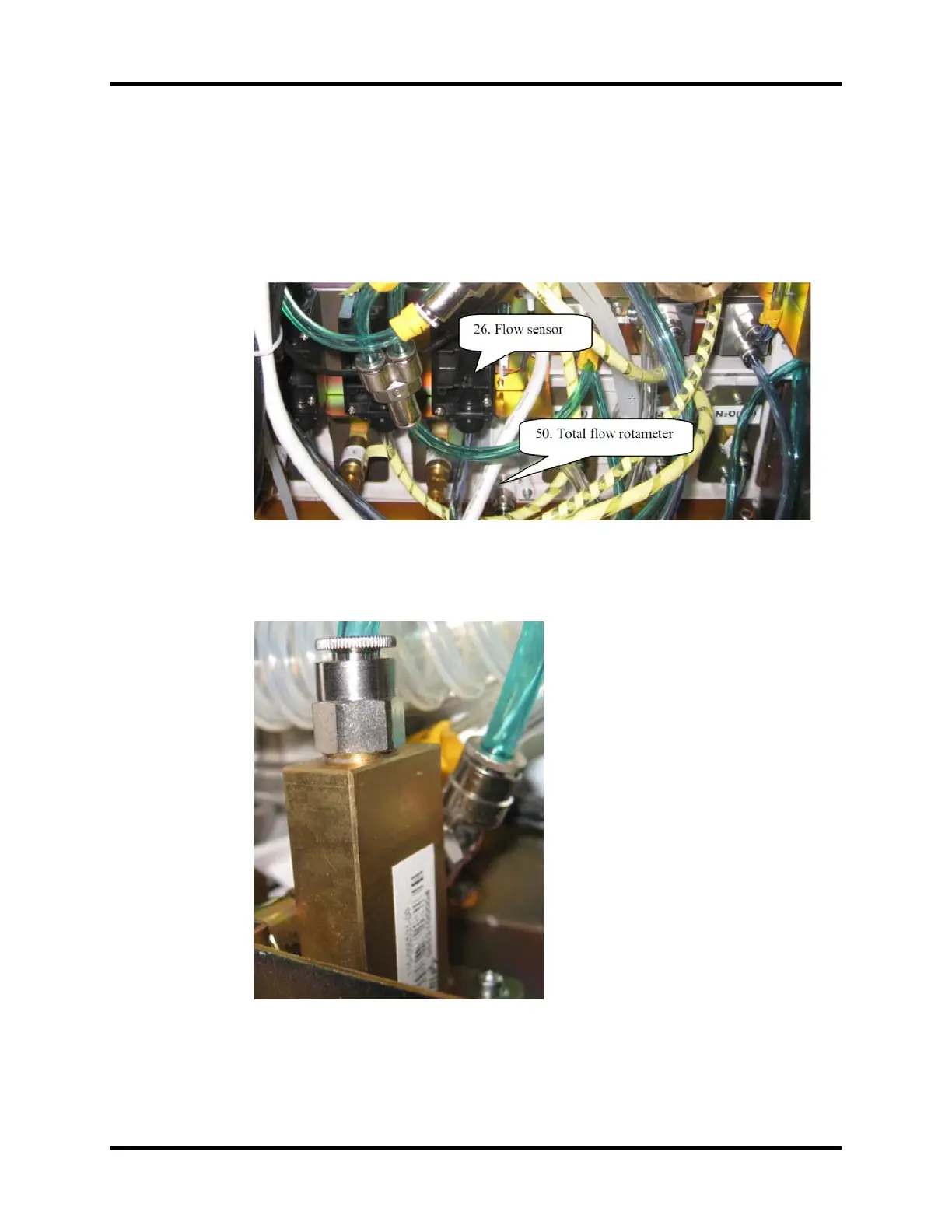

FIGURE 1-13 Flow Display Assembly
1.3.4.6 O2 Flush Button Assembly
FIGURE 1-14 O2 Flush Button Assembly
