A5/A3â„¢ Service Manual 046-001141-00 7 - 11
Replacement Parts Introduction

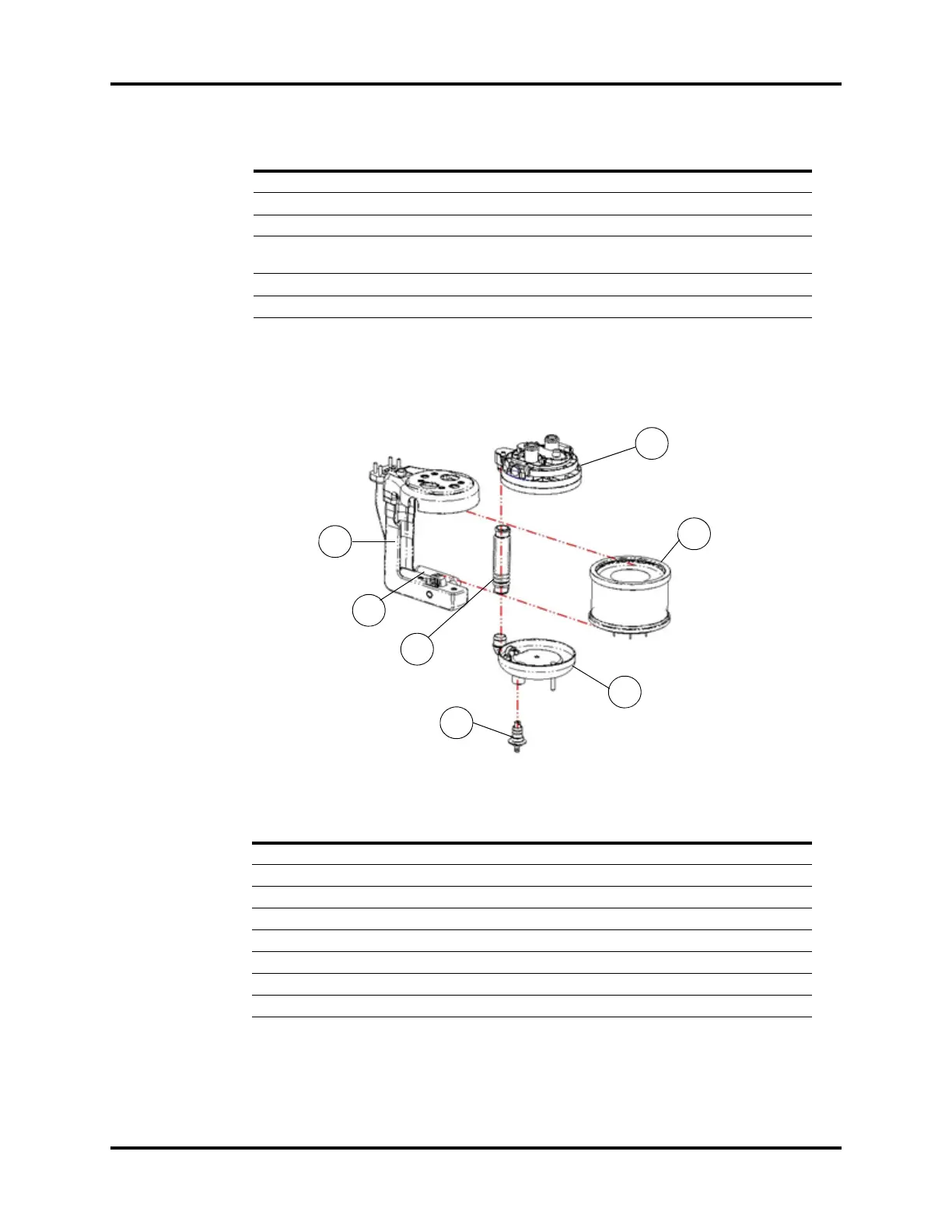

7.1.2.6 A5/A3 Pre-pak Absorber Canister Assembly
11 APL Valve Assembly 801-0631-00062-00
12 Auto/Manual ventilation switch 801-0631-00065-00
13 One-Way Valve 801-0631-00104-00
14
Bag Arm - Fixed Height, A series or
Bag Arm -Flexible arm assembly
115-017033-00(8 C) or
115-028041-00
15 Bellow check valve membrane weight 0601-20-69772
16 Test port 043-001285-00
FIG.NO. DESCRIPTION PART NUMBER
FIG.NO. DESCRIPTION PART NUMBER
1 CO2 Absorber Hose, A series 801-0631-00092-00
2 CO2 Absorber Base Drain Valve, A series 801-0631-00112-00
3 CO2 Absorber Base, A series 801-0631-00100-00
4 CO2 Absorbent Canister, A series 801-0631-00066-00
5 CO2 Bypass Assembly, A series 115-036378-00
6 Prepak Handle FRU 115-015765-00
7 L-shape Bracket Assembly 115-017030-00 (8 C)
/ CO2 Canister Switch 010-000024-00
3
4
5
2
1
7
6
