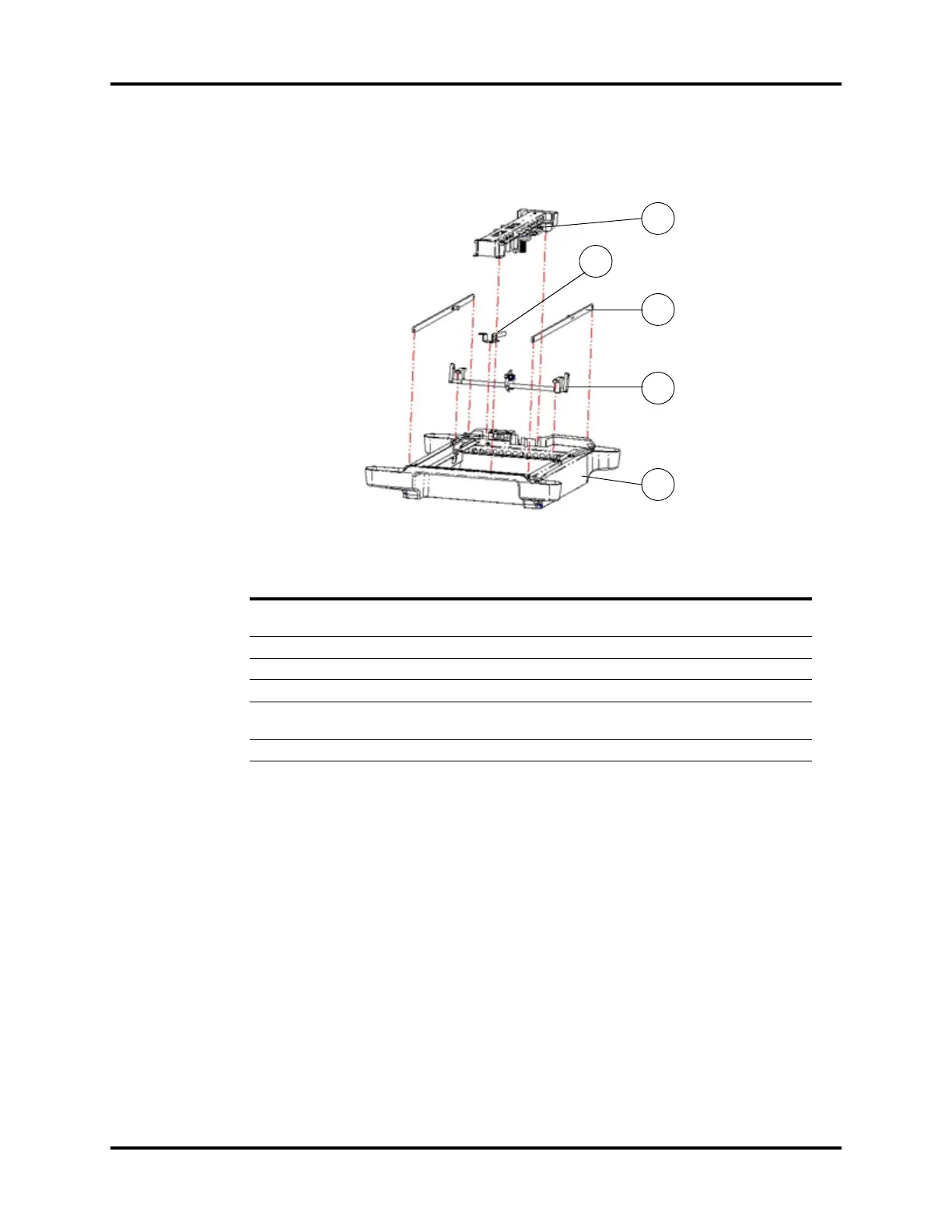

7.1.2.13 Base Assembly (A5)
FIG.NO. DESCRIPTION PART NUMBER
1 Brake Assembly (A5 only)
801-0631-00094-00(Original A5)
115-016692-00(New A5 Only)
2 Connector of Brake (A5 only) 801-0631-00095-00
3 Indicator Drive Plate (A5 only) 801-0631-00072-00
4 Principal Axis of Brake (A5 only) 801-0631-00096-00
5 Base of Chasis Assembly (A5 only)
801-0631-00097-00(Original A5)
115-016691-00(New A5 Only)
/ Front Cover for A3 base 043-001808-00
1
2
3
4
5
To Next Page
