Cleaning and Disinfection Maintenance
9 - 20 Operator’s Manual of Anesthesia System
•Volume Exchanger
• Breathing System Body
• Bag Arm
•O
2
sensor support
•Bypass
•CO
2
Absorbent Canister
• Inspiration connector
• Expiration connector
• Flow sensors
•Inspiration valve
• Expiration valve
• Seals and sealing rings
If the components are damaged, worn and torn, contact your service personnel or Mindray.
9.7.3.4.1 Volume Exchanger
1. As shown in the figure, pull the unlocking button outward.

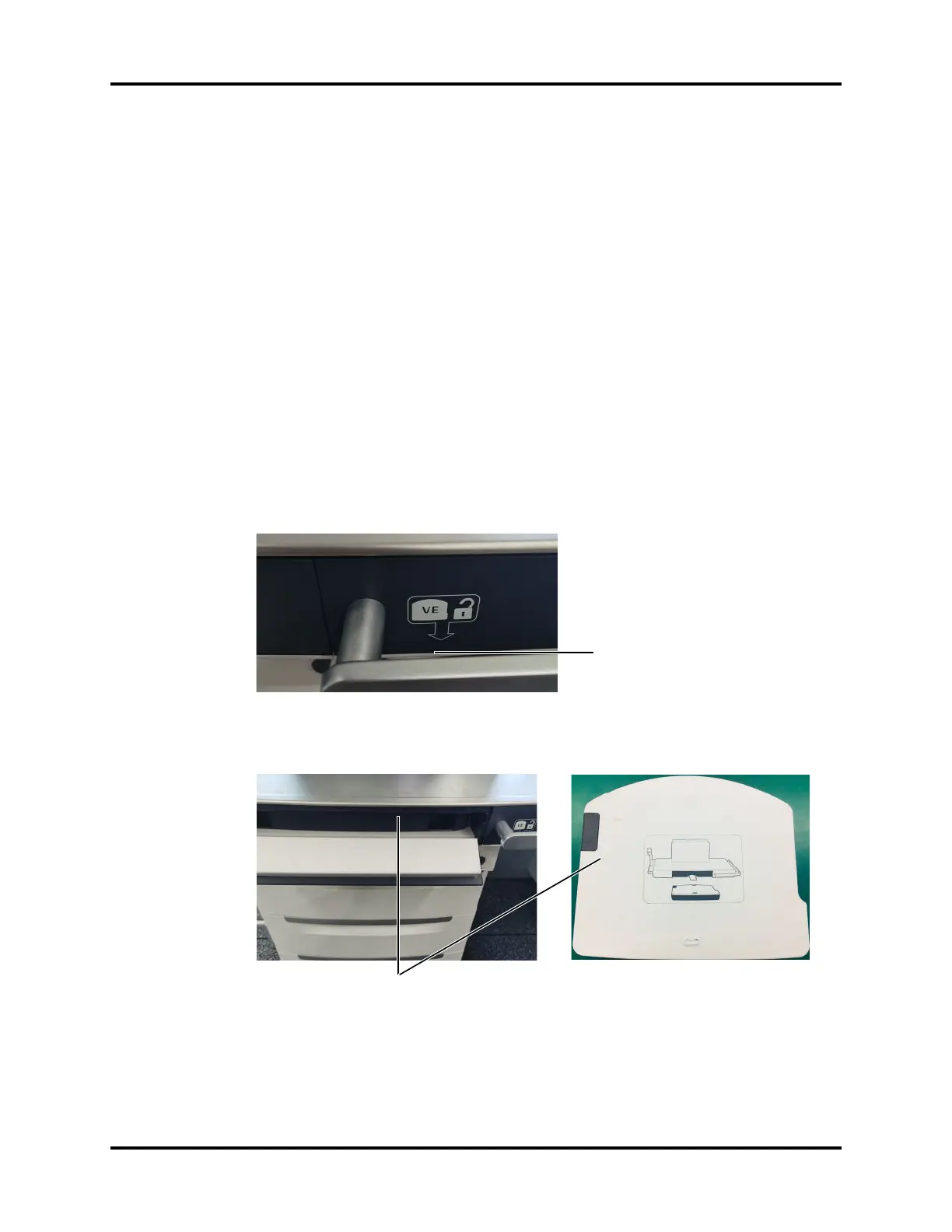

Figure 9-19 Open the volume exchanger cover
2. Put in the volume exchanger following the screen-printed instructions.
Figure 9-20 Put in the volume exchanger
3. Close the volume exchanger cover.
