Anesthetic Gas Scavenging System (AGSS) Installation and Disassembly
3 - 10 Operator’s Manual of Anesthesia System
• When the gas path of the patient monitor does not meet the biological compatibility standard,
the patient monitor needs to scavenge the waste gas to the AGSS. Use the adapter as shown
below.

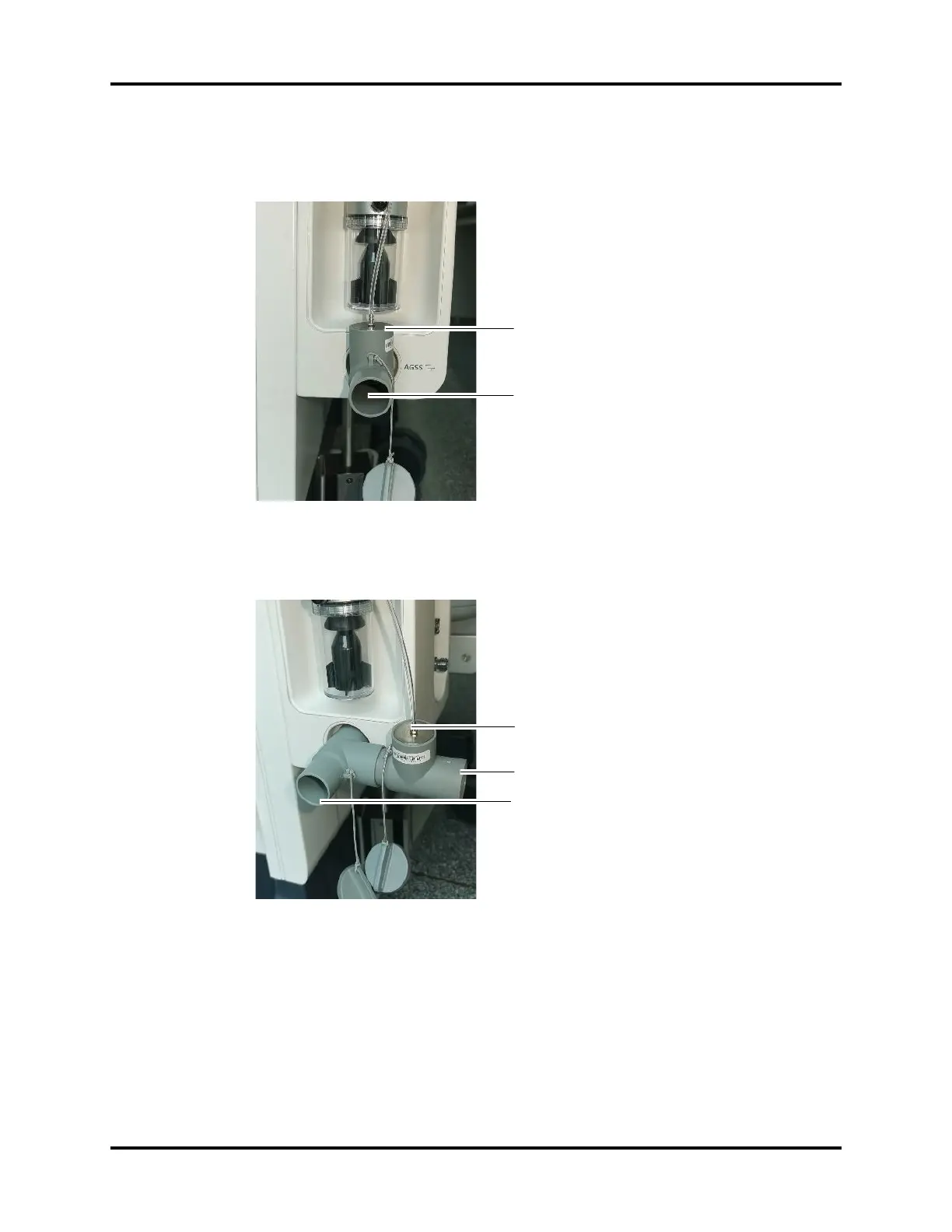

Figure 3-10 Passive AGSS (connecting to the patient monitor)
• When both the patient monitor and ACGO circuit need to scavenge the gas to the AGSS, use two
adapters (one adapter as Figure 3-9and one adapter as Figure 3-10) as shown below.
Figure 3-11 Passive AGSS (connecting to the patient monitor and ACGO circuit)
Connecting to the patient
monitor via sampling tube
Connecting to the hospital's
waste gas scavenging system
Connecting to the patient
monitor via sampling tube
Connecting to the ACGO circuit
Connecting to the hospital's
waste gas scavenging system
