Mindray iPM-9800 - Main Support Assembly (for Li-Ion Battery)

6-13
6.4.3 Main Support Assembly (for Li-ion Battery)

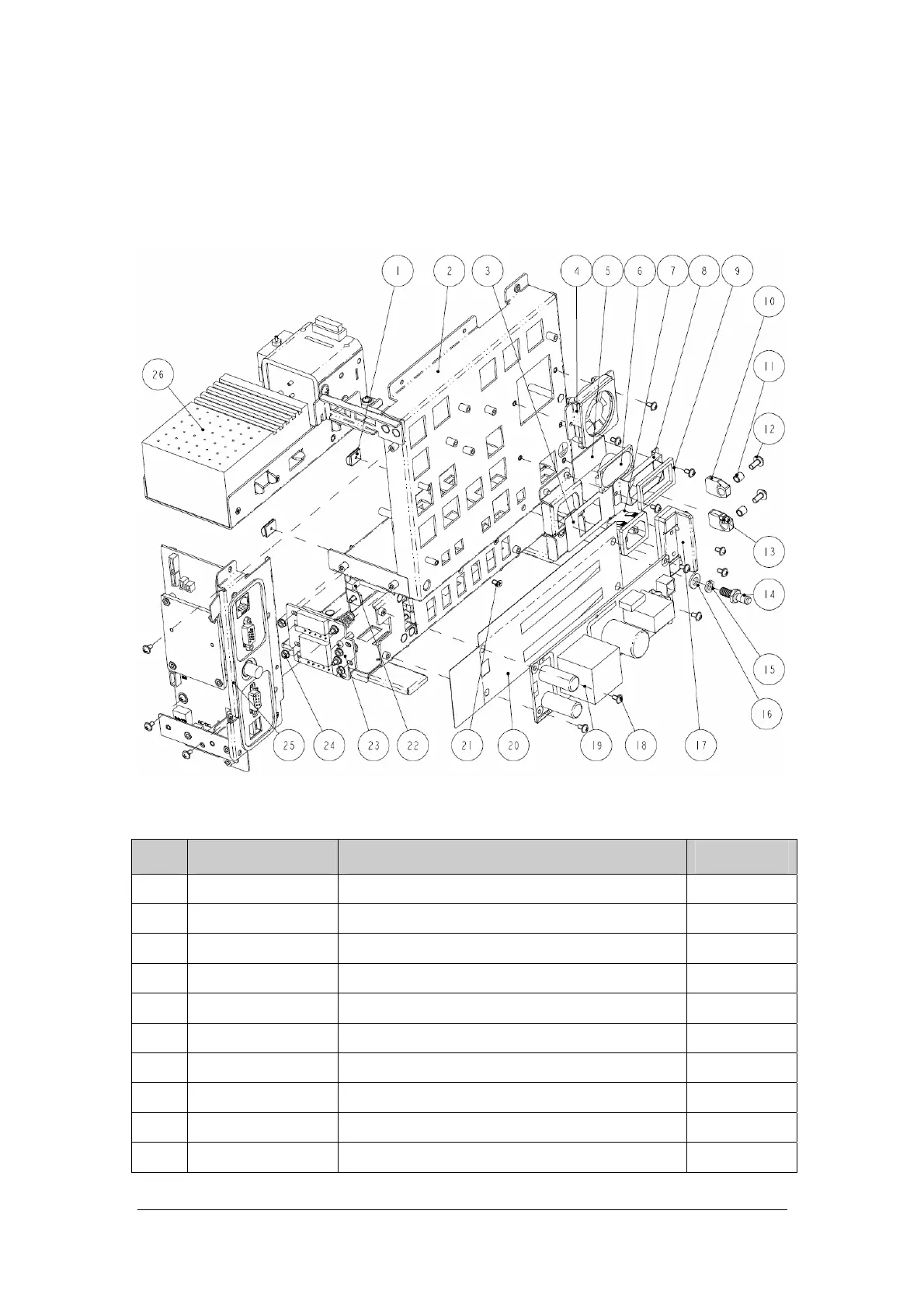

Exploded View
Parts List
SN P/N Description Qty
1 0000-10-10996 Beryllium copper leaf 92-047 2
2 9211-20-87260 Main support (for li-ion battery) 1
3 9211-20-87294 Power socket insulating plate 1
4 9211-30-87332 Fan assembly 1
5 8002-20-36218 Speaker pad cushion 1
6 020-000001-00 Speaker & cable 1
7 9211-20-87221 AC power connector 1
8 9211-20-87262 Speaker rack 1
9 6006-20-39418 Speaker cushion 1
10 9211-20-87256 Battery latch 2
