Mindray iPM-9800 - Screen Assembly (with Anti-Glare Screen)

6-5
6.3.2 Screen Assembly (with Anti-glare Screen)

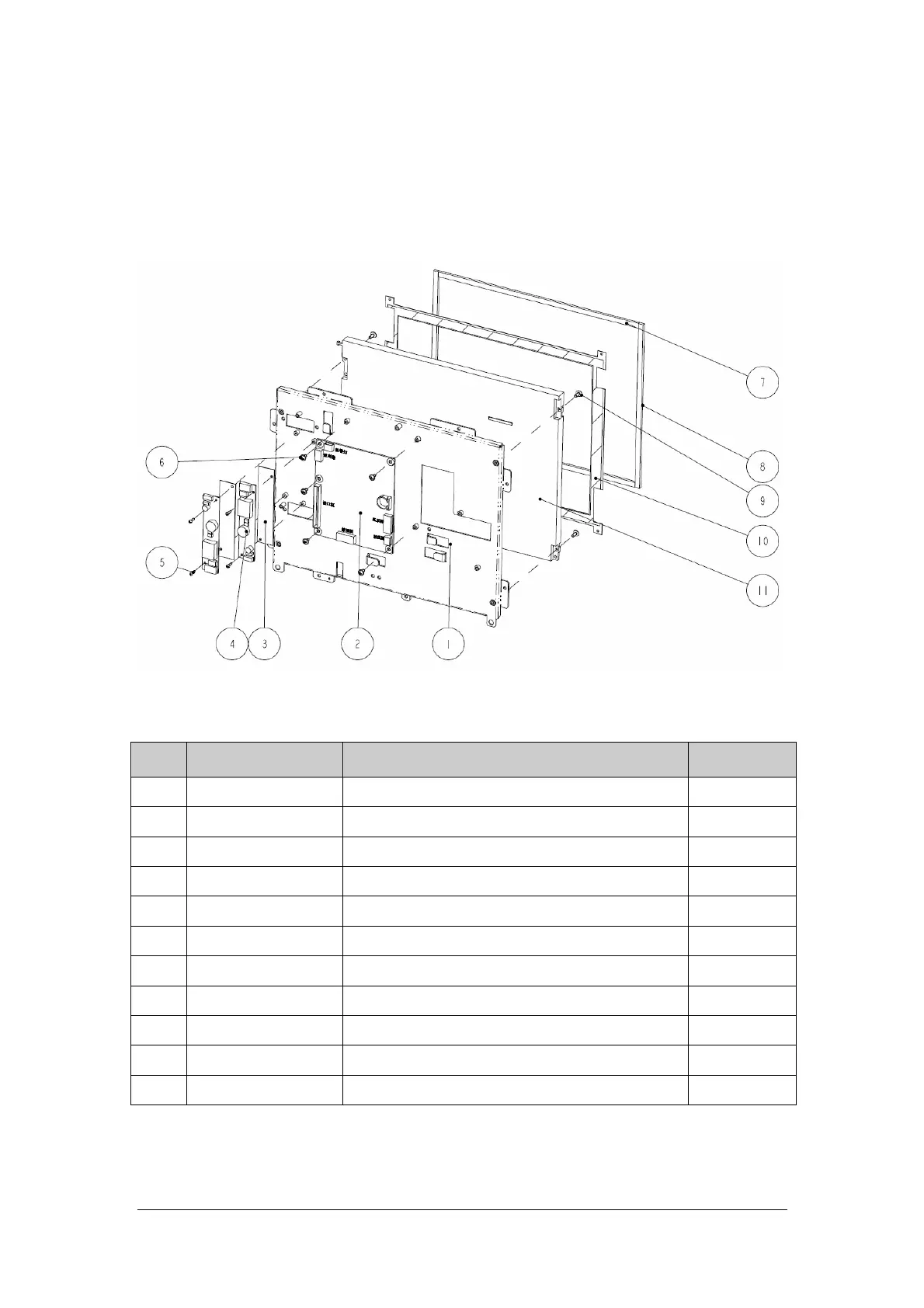

Exploded View
Parts List
SN P/N Description Qty
1 9211-20-87251 12.1” screen mounting rack 1
2 9211-30-87302 Main board 1
3 7000-20-24417 Backlight board insulating sheet 2
4 0000-10-11020 Inverter DC/AC12VDC/500Vrms 6mA 2
5 M04-002405--- Crosshead screw M2×6 4
6 M04-004012--- Crosshead screw M3×6 5
7 6802-20-66740 Screen dust-proof strip 3 2
8 6802-20-66741 Screen dust-proof strip 4 2
9 M04-004015--- Crosshead screw M3×8 4
10 6802-20-66795 Screen protection sheet 1
11 0010-10-42633 LCD, TFT 12.1" 800*6003.3V 200cd/m2 1
