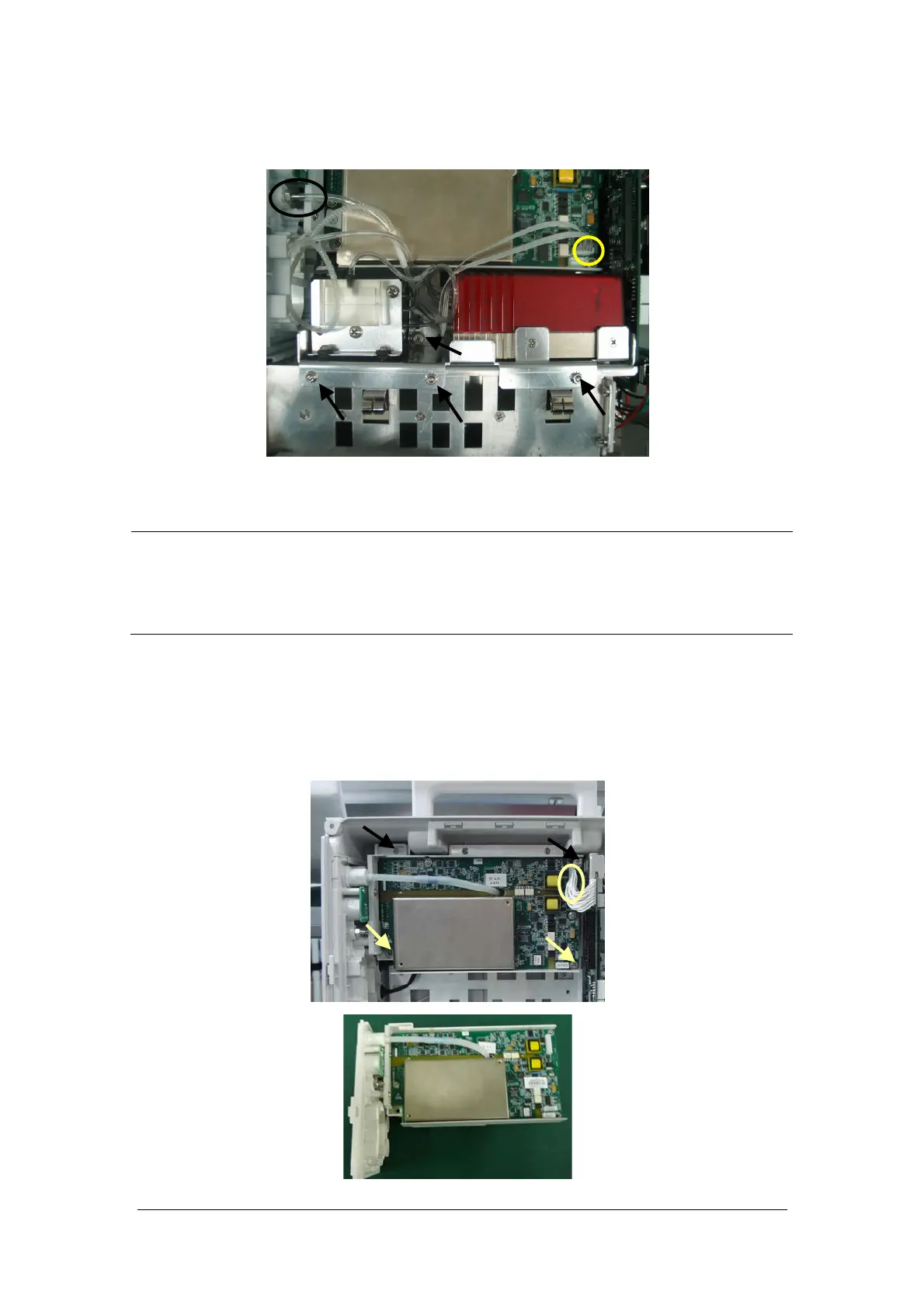

3. Unplug the cable from the multi-parameter board. Unplug the tubing from the gas
nipple. Then unscrew the three nuts and one screw and pull out the AG assembly.
NOTE
z You can cut part of the tubing if it is hard to be removed from the gas nipple.
z Avoid damaging the tubing and cable when taking out the watertrap assembly.
z When reinstalling, fix the tubings with plastic clamp and do not fold the tubings.
5.5.4 Removing the Multi-parameter Board Assembly
Unplug the cable from the multi-parameter board. Then unscrew the four M3×6 screws
and pull out the multi-parameter assembly.
