Mindray iPM-9800 - Lead-Acid Battery Interface Board Assembly

6-24
6.4.12 Lead-acid Battery Interface Board Assembly

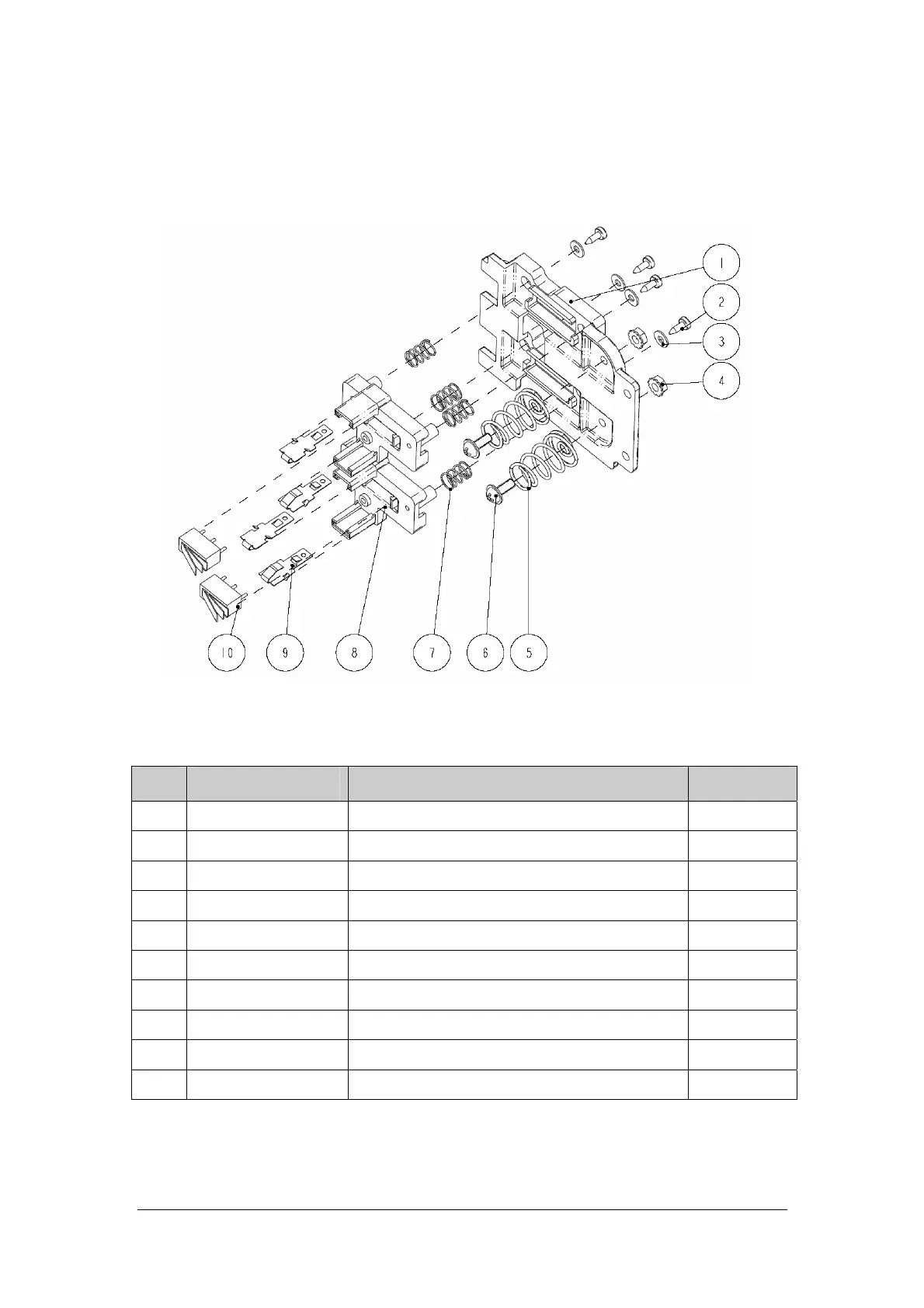

Exploded View
Parts List
SN P/N Description Qty
1 9211-20-87278 Lead-acid battery connector mounting plate 1
2 M04-051003--- Crosshead tapping screw PT2.0×6 4
3 M04-021000--- Flat washer GB97.2 2.5 4
4 M04-011002--- Hex nut assy M3 2
5 9211-20-87364 Spring 2
6 M04-004015--- Crosshead screw M3×8 2
7 8002-20-36151 Adjusting spring 4
8 8002-20-36152 Adjustable rack 2
9 8002-20-36154 Leaf 4
10 M07-00043S--- SWITCH Snap-action 250V 1.5A 12.8*6.5 DIP 2
