5.6.8 Disassembling the CO2 assembly

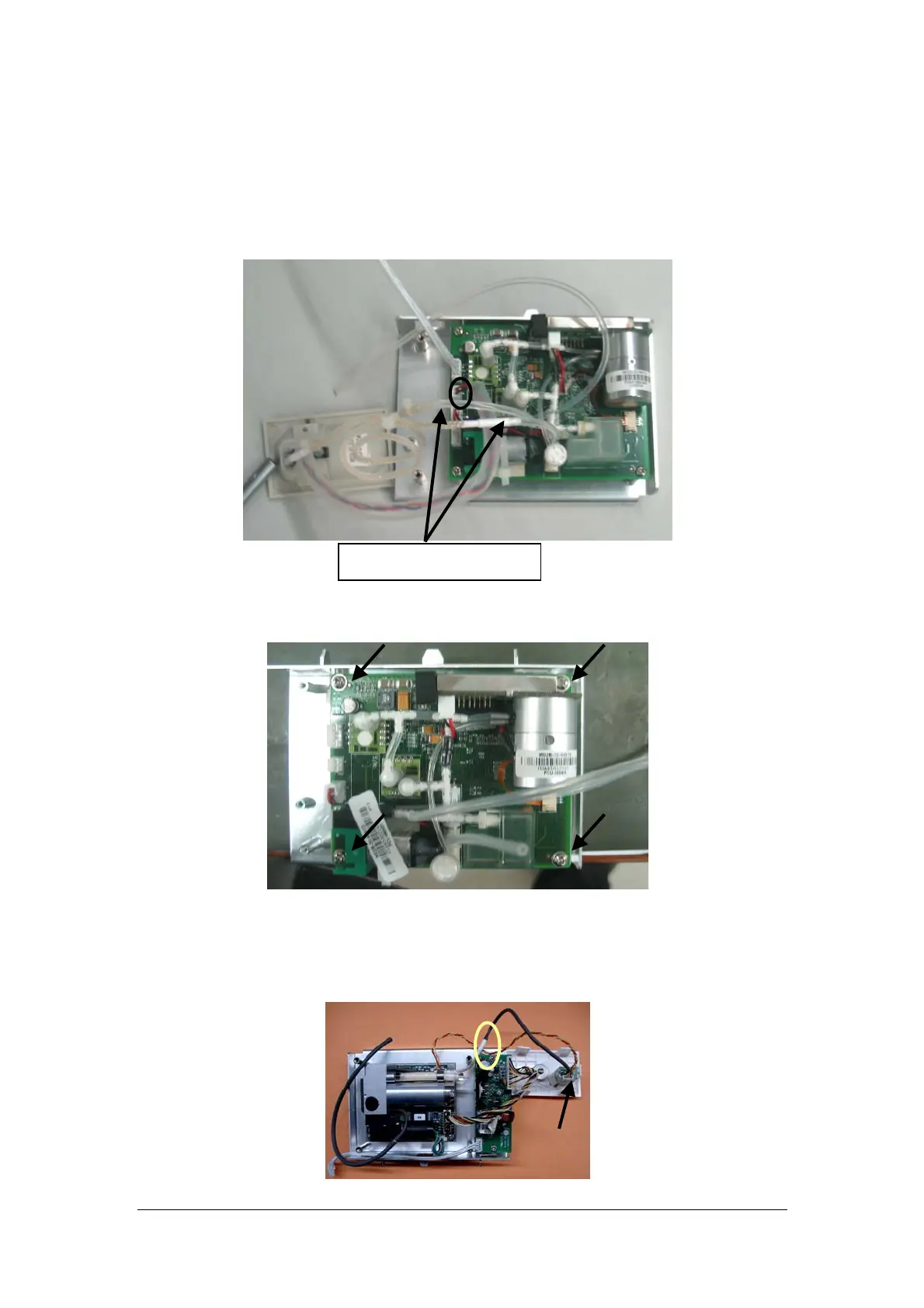

1. To disassemble the Mindray CO2 assembly:
Unplug the watertrap cable and tubings to take out the watertrap assembly.
Unscrew the four M3×6 screws to take out the Mindray CO2 module.
2. To take out the microstream CO2 assembly:
Unplug the sensor cable and the tubing. Then take out the microstream CO2 front
panel assembly.
Unplug these two tubings
