Mindray iPM-9800 - Further Disassembly

5-18

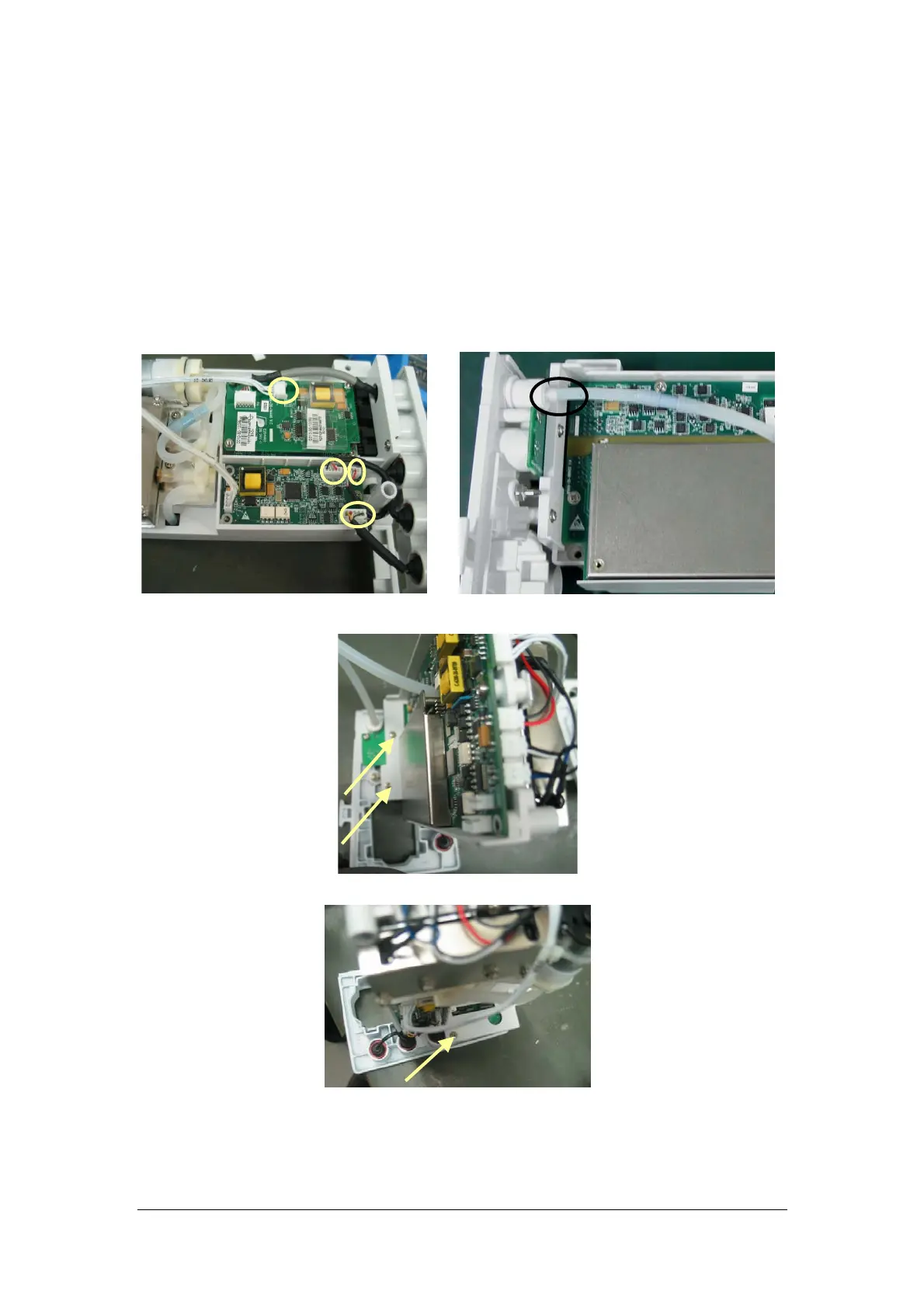

5.6 Further Disassembly
5.6.1 Disassembling the Parameter Front Panel Assembly
To remove the parameter front panel assembly:
1. Unplug the C.O. cable and IBP3/IBP4 cable from the C.O./IBP module. Unplug the
OEM SPO2 cable. Unplug the tubing from the NIBP connector.
2. Unscrew the three M3×6 screws to take out the front panel assembly.
