Mindray iPM-9800 - Fan Assembly

6-22
6 9211-20-87263 AG module mount 1
7 M04-011002--- M3 nut with spring washer 3
8 9200-21-10605 AG module box 1
9 9200-10-10531 O
2
module 1
10 9211-20-87301 O
2
module mount 2
11 3001-10-06985 Washer 4

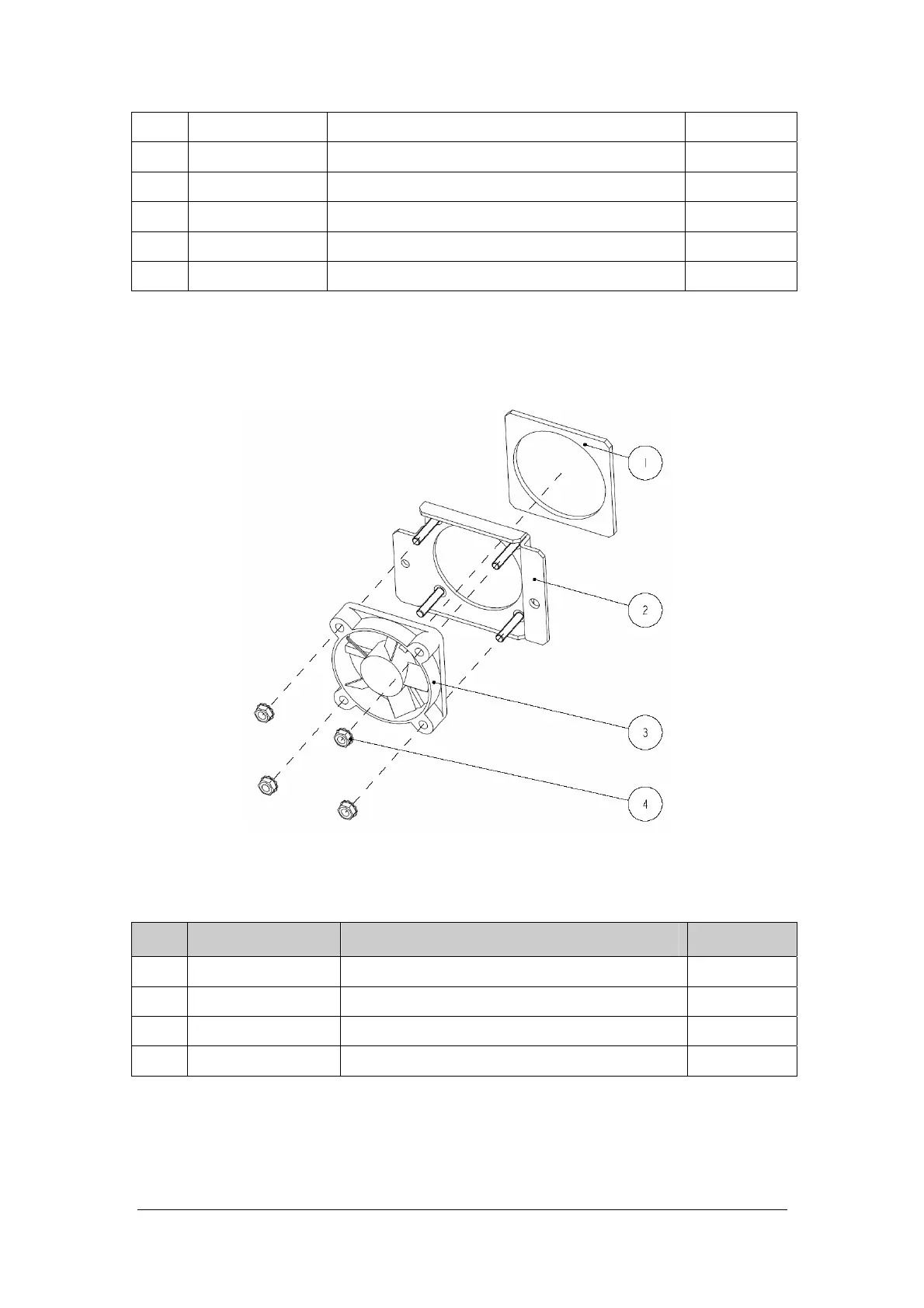

6.4.10 Fan Assembly
Exploded View
Parts List
SN P/N Description Qty
1 6006-20-39434 Fan cushion 1
2 9211-20-87261 Fan support 1
3 024-000001-00 Fan & cable 1
4 M04-011002--- Hex nut assy M3 4
