5-33

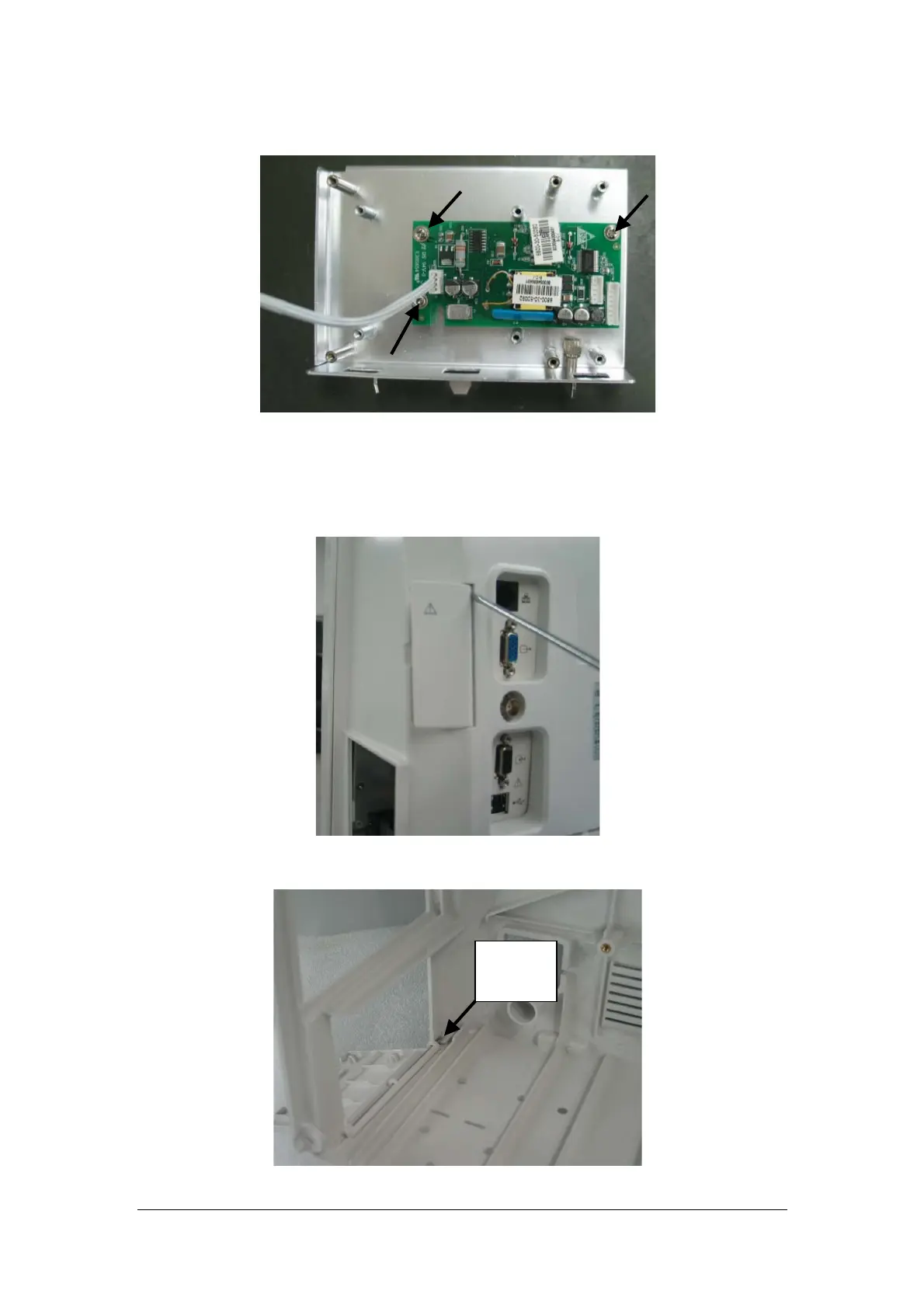

Unscrew the three M3×6 screws to take out the mainstream CO2 module.

5.6.9 Disassembling the Rear Housing Assembly

1. Open the CF card door and take out the CF card. Then pry the CF card door with a

flat-bladed screwdriver.

2. Open the battery door. Then poke the pin out with a flat-bladed screwdriver.

Poke out

the pin

Table of Contents7
Safety11
Safety Information11
Danger12
Warnings12
Cautions12
Notes13
Equipment Symbols13
Theory of Operation15
Introduction15
System Connections16
Mounting the Patient Monitor16
Connectors for Peripheral Devices17
Main Unit18
Power Board (AC/DC)18
Battery Interface Board18
Power Management and Interface Board19
Main Board19
Recorder Board19
CF Board19
Wireless Access Point19
Key Board19
Touchscreen Board19
Alarm LED Board19
Multi-Parameter Board20
And IBP Module20
CO2 Module20
AG Module21
Testing and Maintenance23
Introduction23
Test Report24
Recommended Frequency25
Visual Test26
Power on Test27
Module Performance Tests27
Mainstream CO Tests27
Sidestream and Microstream CO Module Test28
ECG Tests29
Resp Performance Test30
NIBP Tests31
IBP Tests34
Spo Test36
Test36
Temp Test36
AG Tests37
Nurse Call Relay Performance Test40
Analog Output Performance Test40
Electrical Safety Tests41
Enclosure Leakage Current Test42
Earth Leakage Current Test42
Patient Leakage Current Test43
Patient Auxiliary Leakage Current Test43
Touchscreen Calibration44
Recorder Check44
Factory Maintenance45
Accessing Factory Maintenance Menu45
Setting Trends Length45
Debug45
Software Version46
Monitor Information46
Device Configuration47
Wireless AP Configuration47
Program Upgrade48
Troubleshooting49
Introduction49
Part Replacement49
Patient Monitor Status Check49
Software Version Check50
Technical Alarm Check50
Troubleshooting Guide50
Power On/Off Failures50
Display Failures51
Alarm Problems52
Key and Knob Failures53
Recorder Failures53
Interface Failures54
CF Card Problems55
Power Supply Failures55
Network Related Problems57
Software Upgrade Problems58
Repair and Disassembly59
Tools59
Preparations for Disassembly59
Separating the Front and Rear Half of the Monitor60
Disassembling the Front Housing Assembly61
Removing the Main Board61
Disconnecting the Knob Encoder62
Removing the Key Board62
Removing the Alarm LED Board63
Removing the LCD Assembly63
Disassembling the Rear Housing Assembly67
Removing the Recorder67
Removing CO2/AG Assembly69
Removing the Multi-Parameter Board Assembly74
Removing the Main Support Assembly75
Further Disassembly76
Disassembling the Parameter Front Panel Assembly76
Removing the IBP/C.O. Module79
Removing the OEM SPO2 Module80
Removing the Multi-Parameter Board81
Removing the Pump/Valve Assembly83
Disassembling the Main Support Assembly84
Disassembling the Interface Board Assembly88
Disassembling the CO2 Assembly89
Disassembling the Rear Housing Assembly91
Parts93
Introduction93
Main Unit94
Exploded View94
Parts List94
Front Housing Assembly95
Front Housing Assembly (with Anti-Glare Screen)95
Screen Assembly (with Anti-Glare Screen)97
Front Housing Assembly (with Touchscreen)98
Screen Assembly (with Touchscreen)100
Rear Housing Assembly101
Exploded View101
Parts List101
Main Support Assembly (for Lead-Acid Battery)103
Main Support Assembly (for Li-Ion Battery)105
Interface Board Assembly107
Parameters Front Panel Assembly108
Multi-Parameter Board Assembly110
Wireless AP/CF Card Assembly111
Artema AG Module112
Artema AG Module (with O )113
Fan Assembly114
Li-Ion Battery Interface Board Assembly115
Lead-Acid Battery Interface Board Assembly116
Mindray Sidestream CO2 Module117
Oridion Microstream CO2 Module118
Mainstream CO2 Module119
Others120
Replaceable Parts121
Main Unit121
Cables123
