Structure and Assembly/Disassembly 8-21

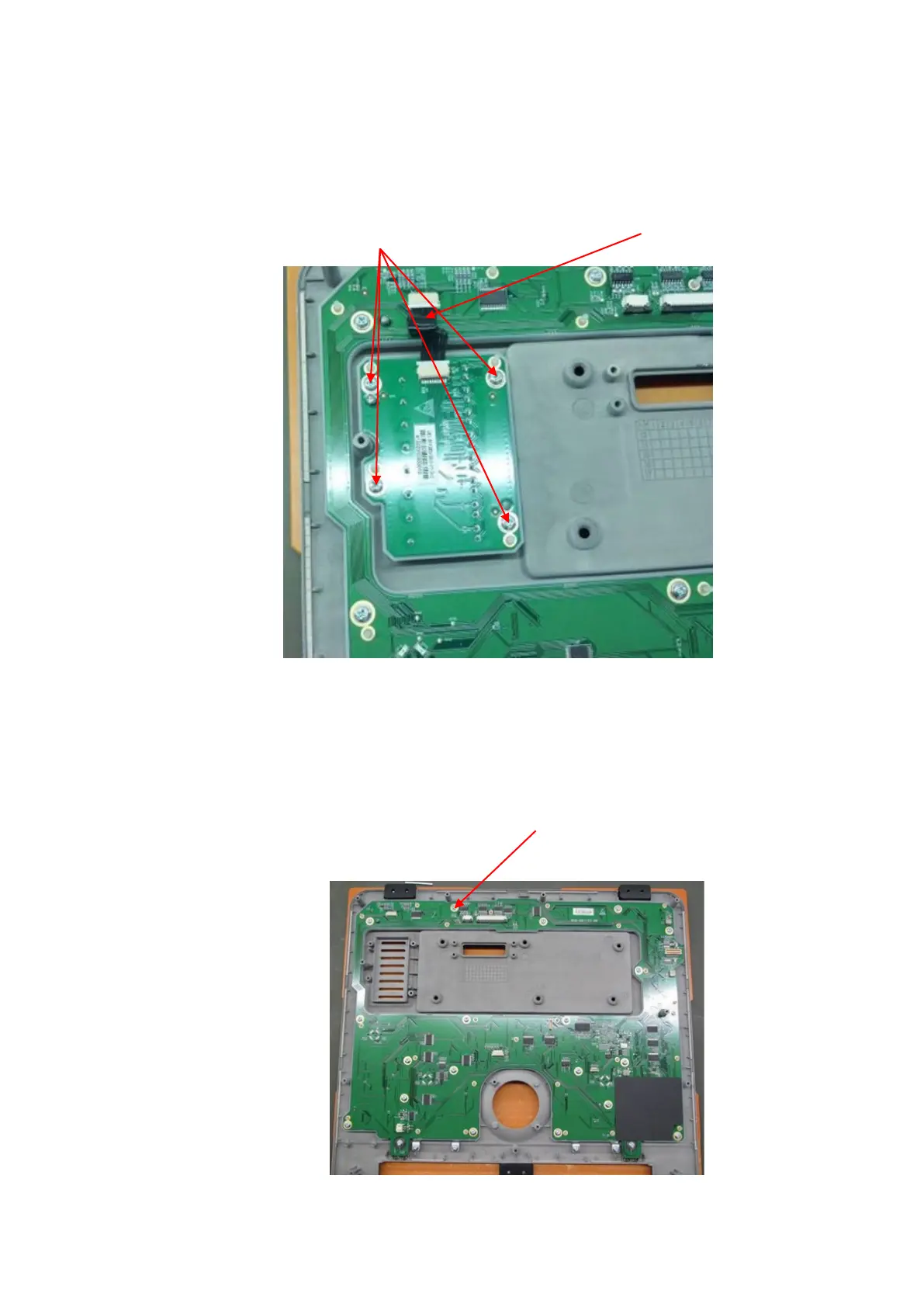

6. Disassemble TGC board

Unscrew 4 screws on TGC board (M3 X 6 stainless steel cross panhead screw). Unplug STC

connecting cables. Remove TCG board.

7. Disassemble the control panel PCBA

Unscrew 20 screws (M3 X 6 stainless steel cross panhead screw) on control panel PCBA.

Remove control panel PCBA.

M3 X 6 stainless steel cross panhead screw (20 screws)

M3 X 6 stainless steel cross

panhead screw (4 screws)

STC connecting cable
