Mindray M9 User Manual

8-36 Structure and Assembly/Disassembly

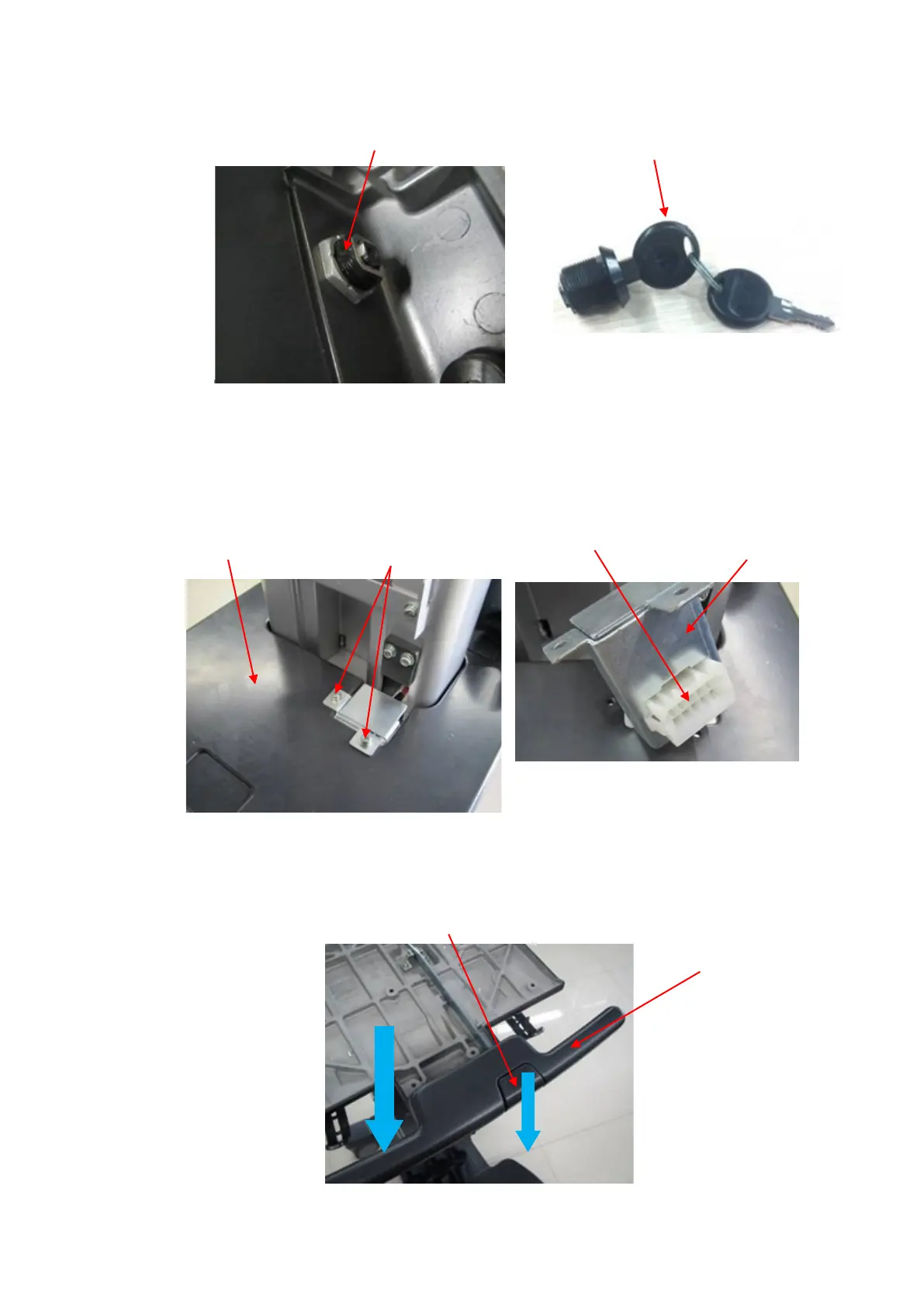

4. Remove spring cable
a) Remove the fixing bracket of spring cable
Unscrew 2 screws (M4 X 12 cross panhead screw) on the base, and take out the bracket
of spring cable.
b) Remove spring cable
Press gas spring button. Press the device to the lowest by the handle.
Hexagon screw
Drawer lock
Gas spring
Handle
The socket of
spring cable
Fixing bracket of
spring cable
Trolley base
M4X12 cross panhead
screw (2 screws)
