Mindray M9 User Manual

System Installation 3-13
2.
Connecting terminal of connecting cable
4. Press scan trigger button to receive barcode when ultrasound device is running (without
installing driving program). For more operation details, see relevant barcode reader manual.
3.4.5.2 2-D Barcode Reader
 Install the connecting cable

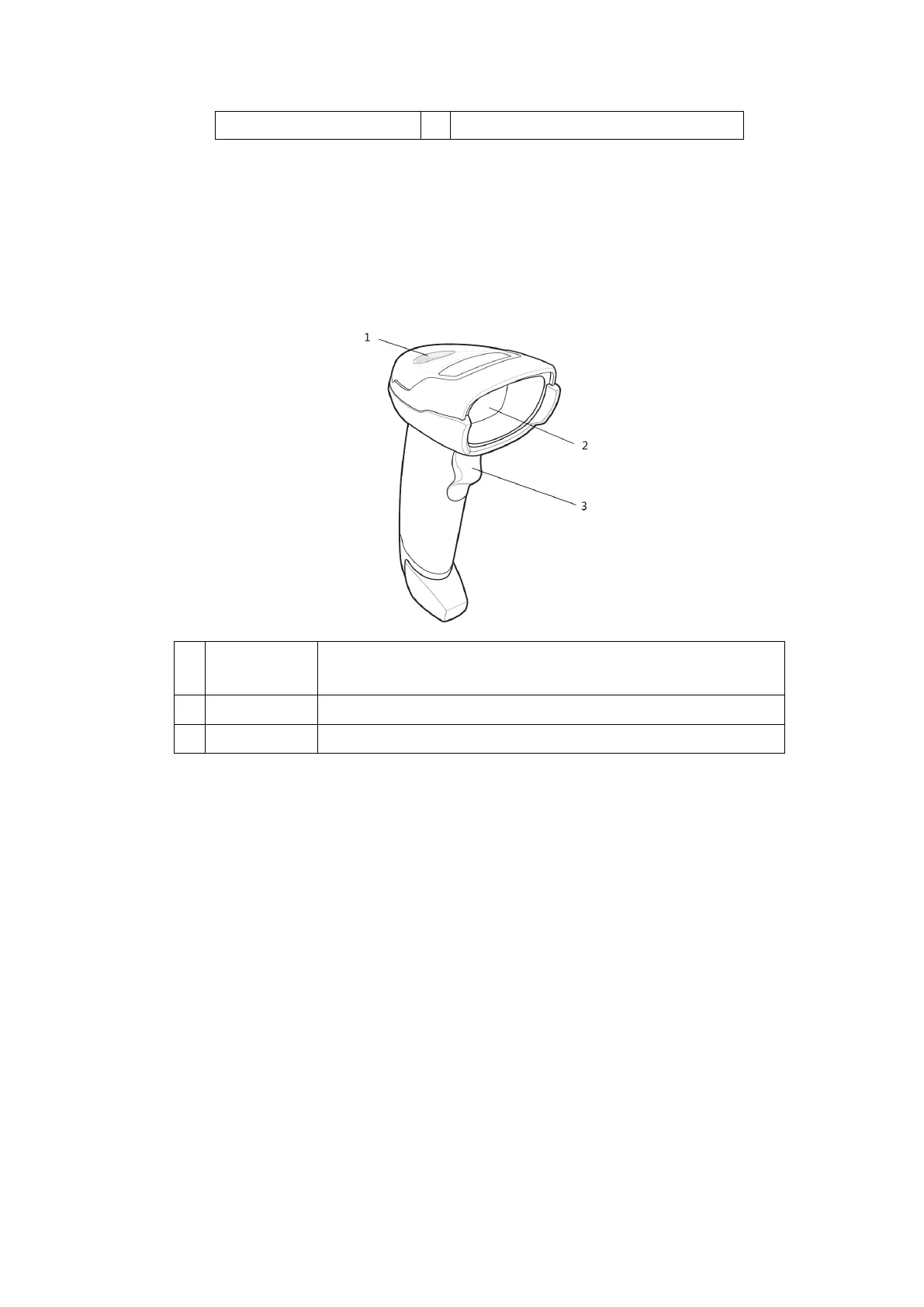

1. The appearance of barcode reader. Each part of the barcode reader: LED indicator, scan
window and scan trigger button.
1. LED Green: A barcode was successfully decoded.
Red: A data transmission error or reader malfunction occurred.
2. Scan window Scan the barcode.
3. Trigger Press to decode
2. Plug connecting terminal of the cable to the port of the barcode reader. Ensure the contact
works well.
3. Connect USB terminal of the connecting cable to the USB port of main unit.

Mindray M9 Specifications

General

Type	Portable Ultrasound System
Battery	Rechargeable lithium-ion battery
Battery Life	Up to 90 minutes
Display	15.6 inch high resolution LED monitor
Imaging Modes	B, M, Color, Power, PW, CW
Transducers	Linear, Convex, Phased Array
Transducer Ports	3
Probe Connectors	3
Connectivity	DICOM, USB, HDMI
Operating System	Windows-based
