A - 8 Operator’s Manual
A Barcode Reader
A.2.2 Setting Up the Digital Imager Reader

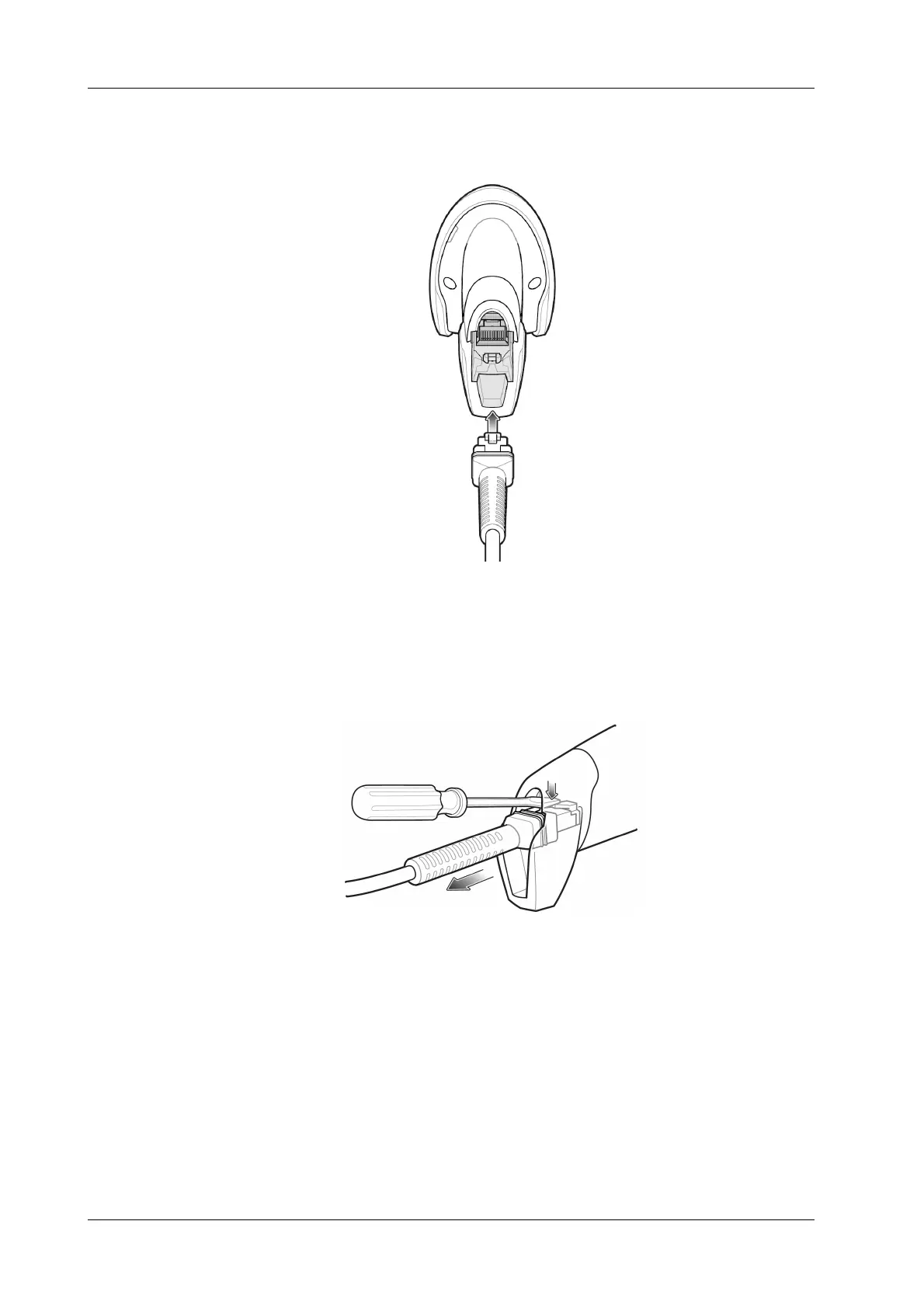

Installing the Interface Cable
Perform the following procedure:
1. Plug the interface cable modular connector into the cable interface port on the bottom of the
reader handle and ensure the connector is properly secure.
2. Connect the other end of the interface cable to the host.
Removing the Interface Cable
Perform the following procedure:
1. Using the tip of a screwdriver or some other tools with a sharp head, depress the cable’s
modular connector clip.
2. Carefully slide out the cable.
A.2.3 Setting
The reader has factory settings, for details see “A.5 Parameter Defaults”.
The reader supports some user-defined functions as introduced below.
For more details, please contact the SYMBOL reader agents or Mindray Customer Service
Department.

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
