Mindray MX7 User Manual

2 - 8 Operator’s Manual
2 System Overview
2.7 Introduction of Each Unit

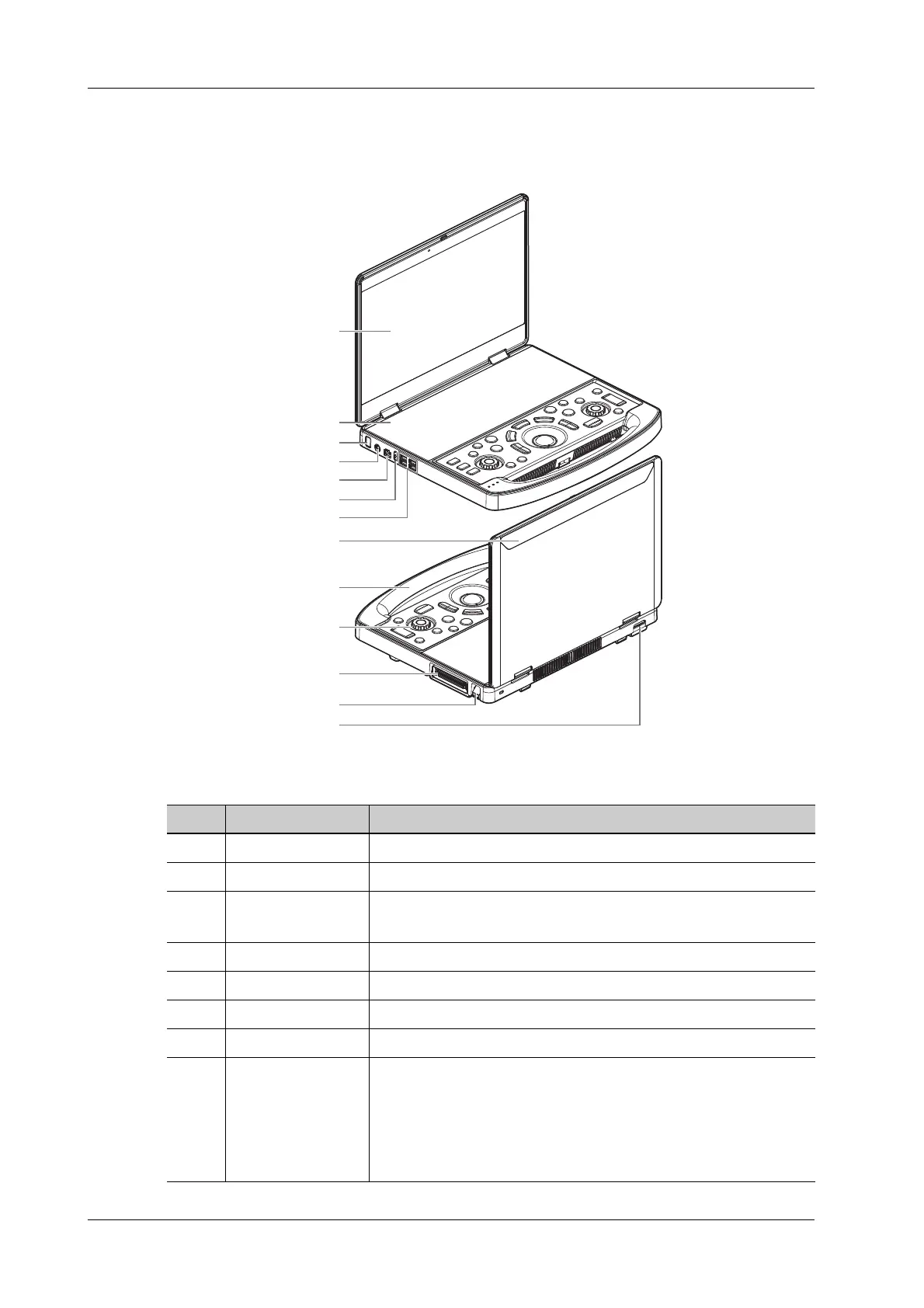

Figure 2-1 Overview
No. Name Description
1. Display Displays the images and parameters during scanning.
2. Touch screen Screen-touching operator-system interface or control.
3. Power button/Power
indicator
Used for turning on/ off the power.
The indicator lights up when the system is powered on.
4. S-Video S-Video signal output.
5. Network port Connects to network.
6. HDMI Used for extending the monitor.
7. USB ports Connects USB devices.
8. Secondary Display Displays battery capacity, AC power status, and product model,
etc.
NOTE:
The actual remaining time of the battery varies depending on
the actual operating modes.
1
2
3
4
5
6
7
8
9
10
11
12
13

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
