4 - 28 Operator’s Manual
4 Setup
4.5.2 View Management
• Click to select the views in the list. The image, annotation, body mark and measurement
settings can be checked on the right.
• Click to select a user-defined protocol in the list. Click [Add View] to add a view template to
the protocol.
4.5.3 Create a New Protocol
You can create user-defined protocols and customize the automated procedure.
Perform the following procedure:
1. In the iWorks preset screen, click [Add Protocol] to create a new protocol.
Or, select an existing protocol and click [Copy] to customize the protocol based on the
previous template.
2. Enter the protocol name, type and select the application region.

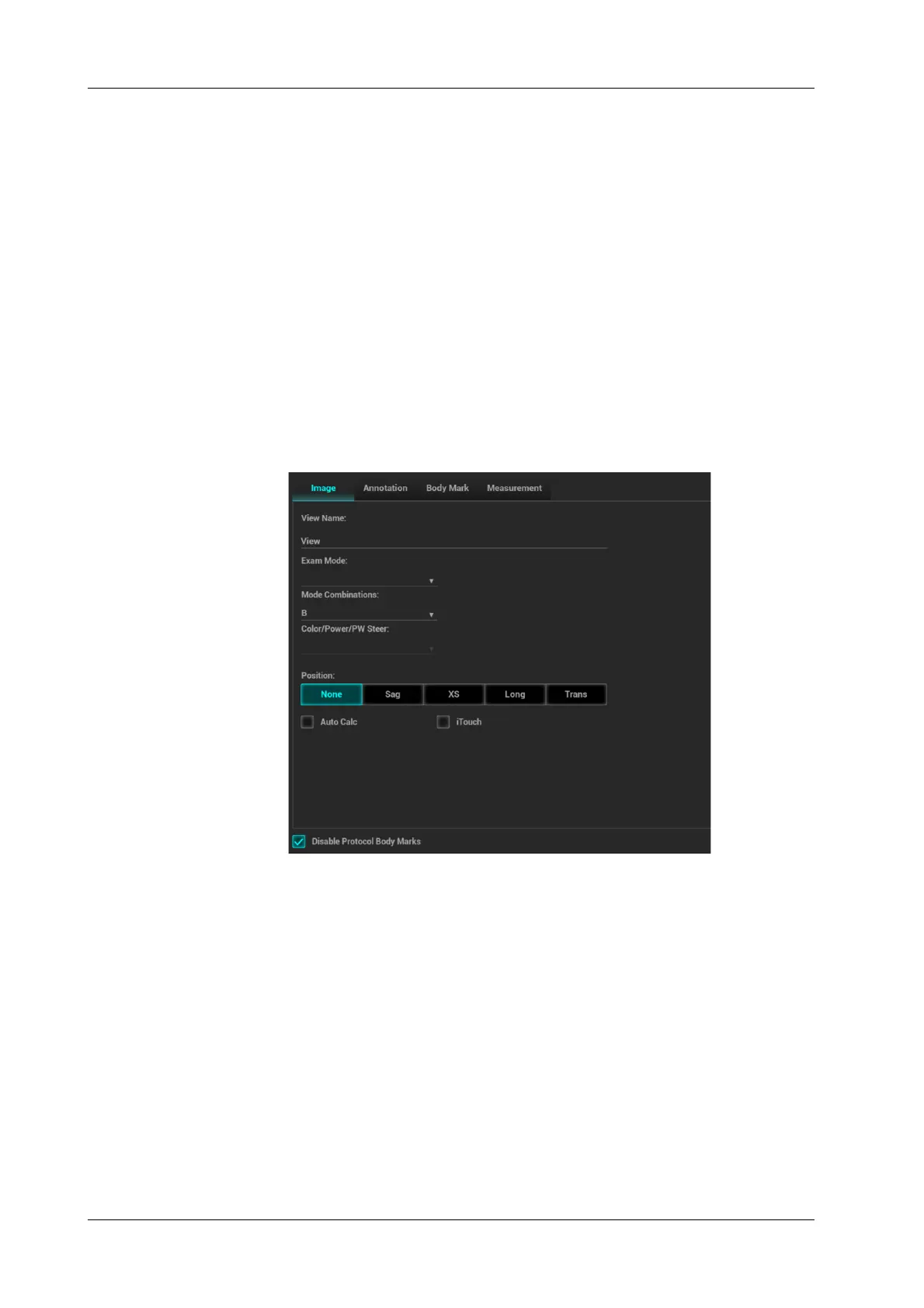

3. Click [Add View] to enter the view name and perform image settings:
– In the measurement setting, if “Measurement on next section” is selected, the system will
save two section images after finishing the section operation. One of the two sections will
include the measurement result
– Select the checkbox of “Disable Protocol Body Marks” for body mark display settings.
4.6 Stress Echo Preset
4.6.1 Protocol Edit
You can create, edit, delete, copy, export and load the Stress Echo protocols using the Protocol
Editor dialog box.
