Mindray MX7 User Manual

2 System Overview
Operator’s Manual 2 - 13

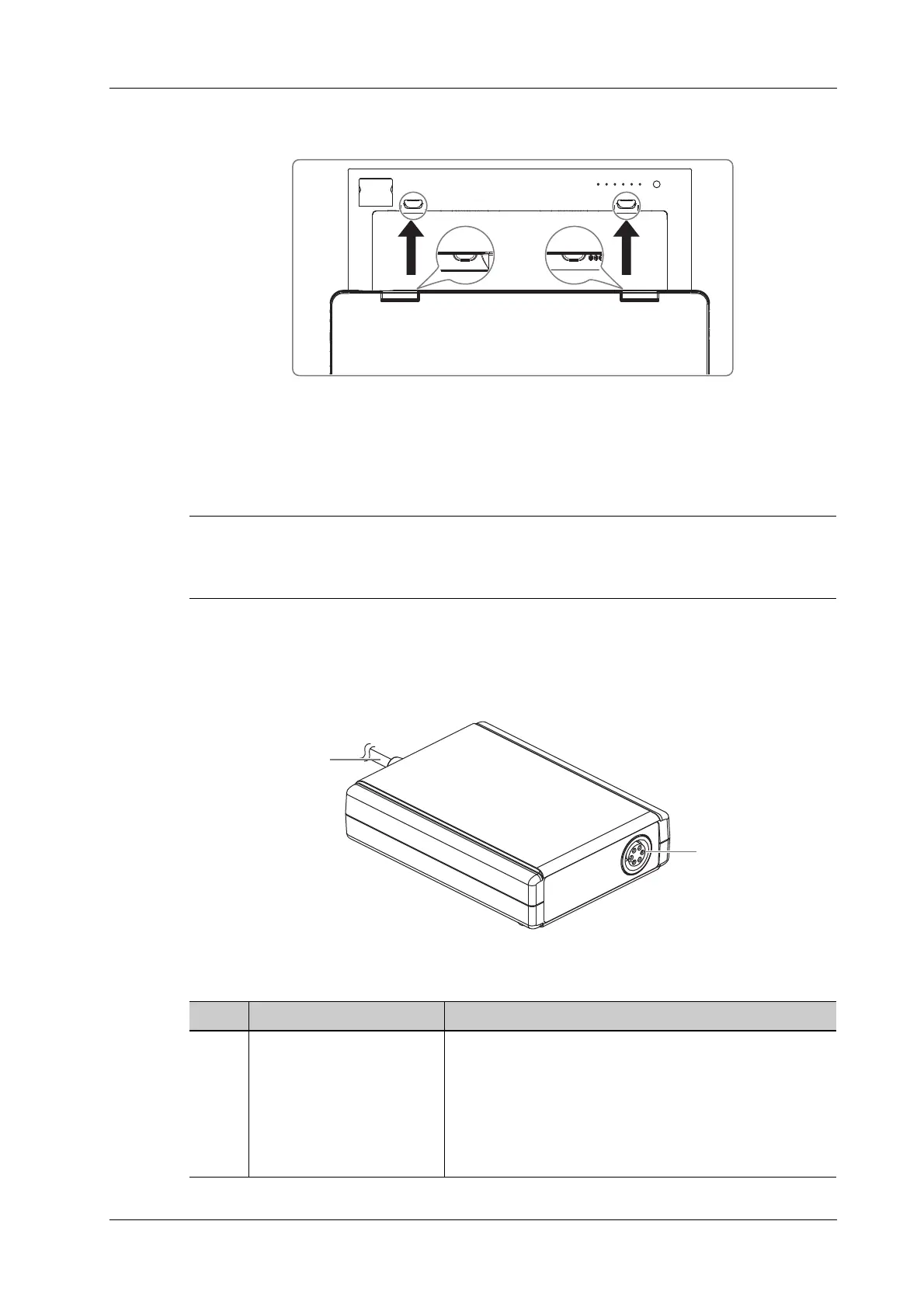

2.9.2 Installing the U-Bank
1. Place U-Bank to a flat and solid platform.
2. Align the grooves of the system with the tabs of U-Bank.
3. Push the system in the arrow direction as shown in the figure above until the system is locked
in place.
TIP:
To remove the U-Bank from the system, press the detach lever of U-Bank and lift up slightly the
system by holding the system’s handle.
2.10 ECG Module Overview
Figure 2-4 ECG module
No. Name Description
1. USB cable Connects to the USB port of the system.
NOTE:
• Ensure the system is powered off before connecting the
ECG module.
• The ECG module is only for use with the specified
system.
1
2

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
