3 System Preparation
Operator’s Manual 3 - 9
1. Place the printer appropriately.
2. Connect the power cord of the printer to a receptacle. Connect the USB port of the system to
the USB port of the printer with USB cable.
3. Load a paper roll and turn on the system and printer.
4. Add a print service:
a. Open [Setup] > [Print] screen.

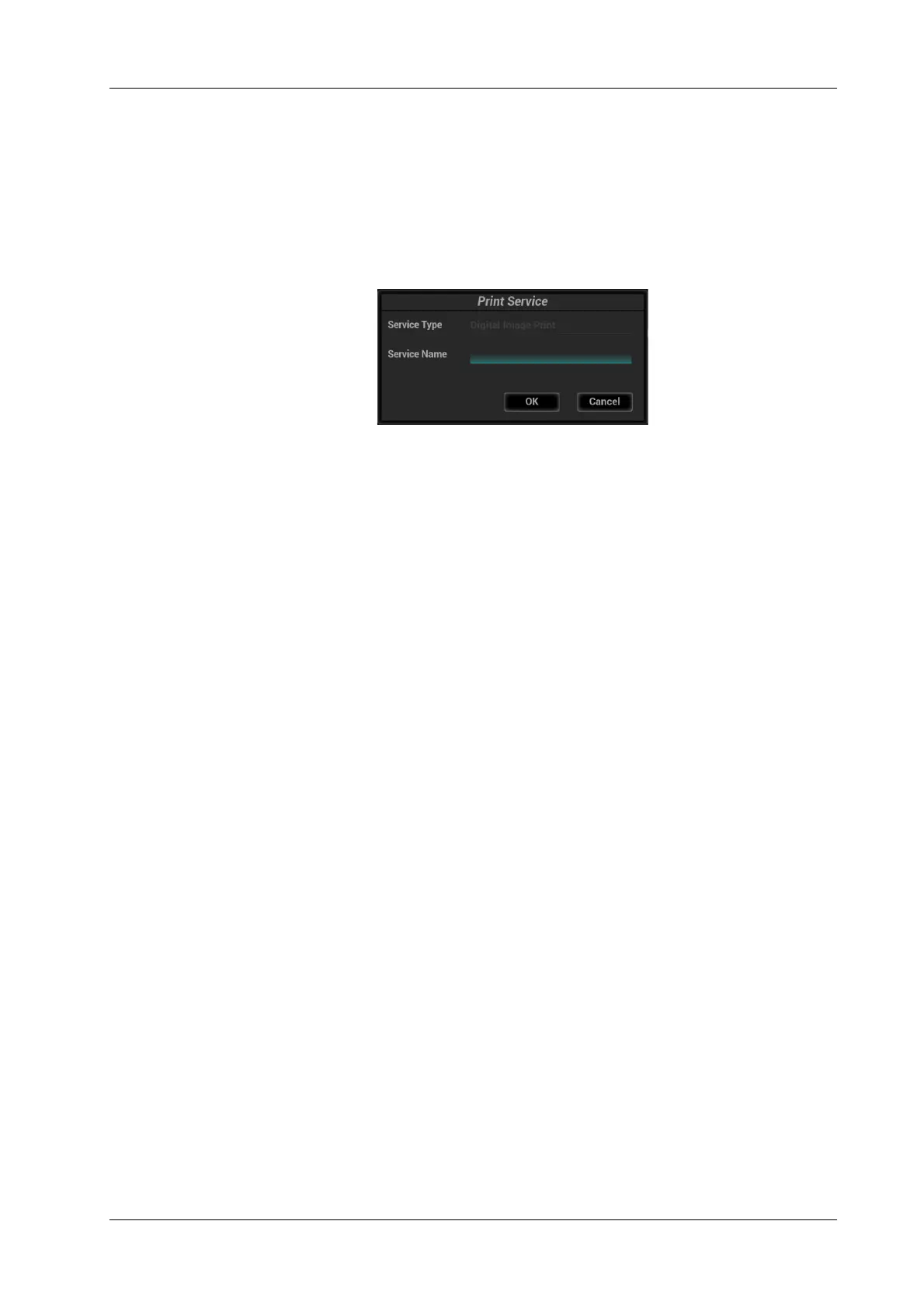

b. Click [Add Service] to enter the page.
c. Select the service type and enter the service name manually.
d. Click [OK] to return to the page.
e. Select the target printer from the drop-down list in the “Property” box and set other
printing properties.
f. Click [OK] to complete.
3.8.3 Connecting a Wireless Printer
The system supports the wireless graph/text printer for the report print.
Perform the following procedure:
1. Plug the printer power cord to an appropriate outlet.
2. Power on the system and the printer.
3. Make sure the ultrasound machine and the printer are connected to a same LAN, and turned on
the W-LAN function of the printer.
4. Select [Setup] > [Print] to choose the report to be printed. Select the printer from the wireless
printer list, and set the printer.
5. Click [Save] to exit the preset and make the settings effective.
