3 - 8 Operator’s Manual
3 System Preparation
3.7 Connecting the Footswitch
The system supports USB port-type foot switches.
The function of the foot switch can be preset. For details, see “4.1.7 Key Configuration”.
3.8 Installing a Printer
• Printers listed in Section 2.6.4 have drivers installed already.
• If the printer driver is required, please contact Mindray Customer Service Department or sales
representative.
• Please refer to the accompanying manuals of the printers for more details.
3.8.1 Connecting a Graph/Text Printer

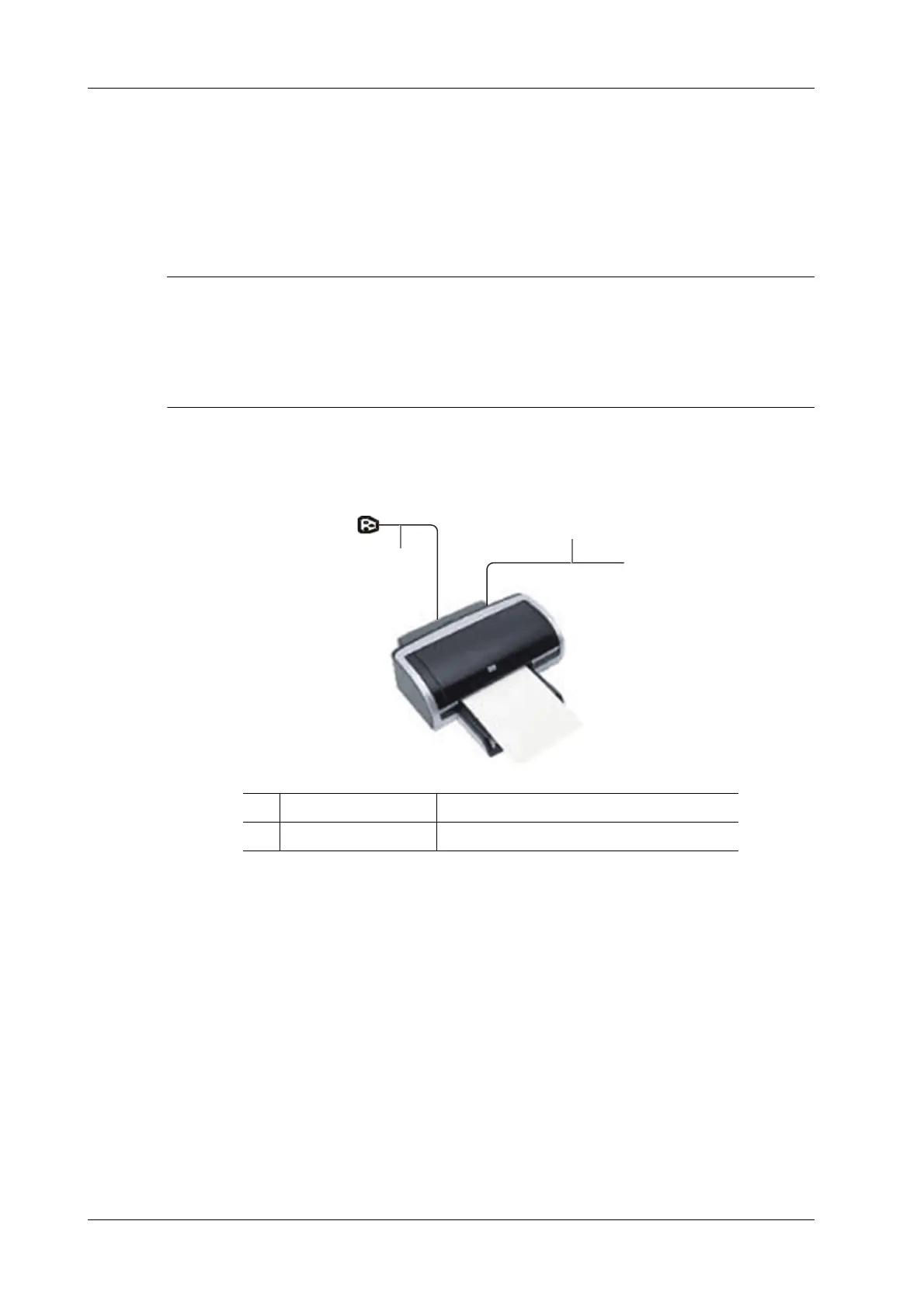

As shown in the figure below, a graph/text printer has a power cord and data cable. The power cord
shall be directly connected to a wall receptacle as required.
Perform the following procedure:
1. Connect the data cable to USB port of the ultrasound device.
2. Power on the system and the printer.
3. Preset the default report printer and its attribute:
a. Open [Setup] > [Print] screen.
b. Select the “Report Print” column in the Service Type list.
c. In the “Property” frame, select printer from the driver list next to “Printer” in the lower
screen and set the items.
d. Click [Save] after you have finished setting.
3.8.2 Connecting a Video Printer
The digital video printers that system supports consist of the B/W printers and color printers.
Perform the following procedure:
1 Power supply cable Connect to power supply.
2 Data cable Connect to the USB port of this system.
To Next Page
