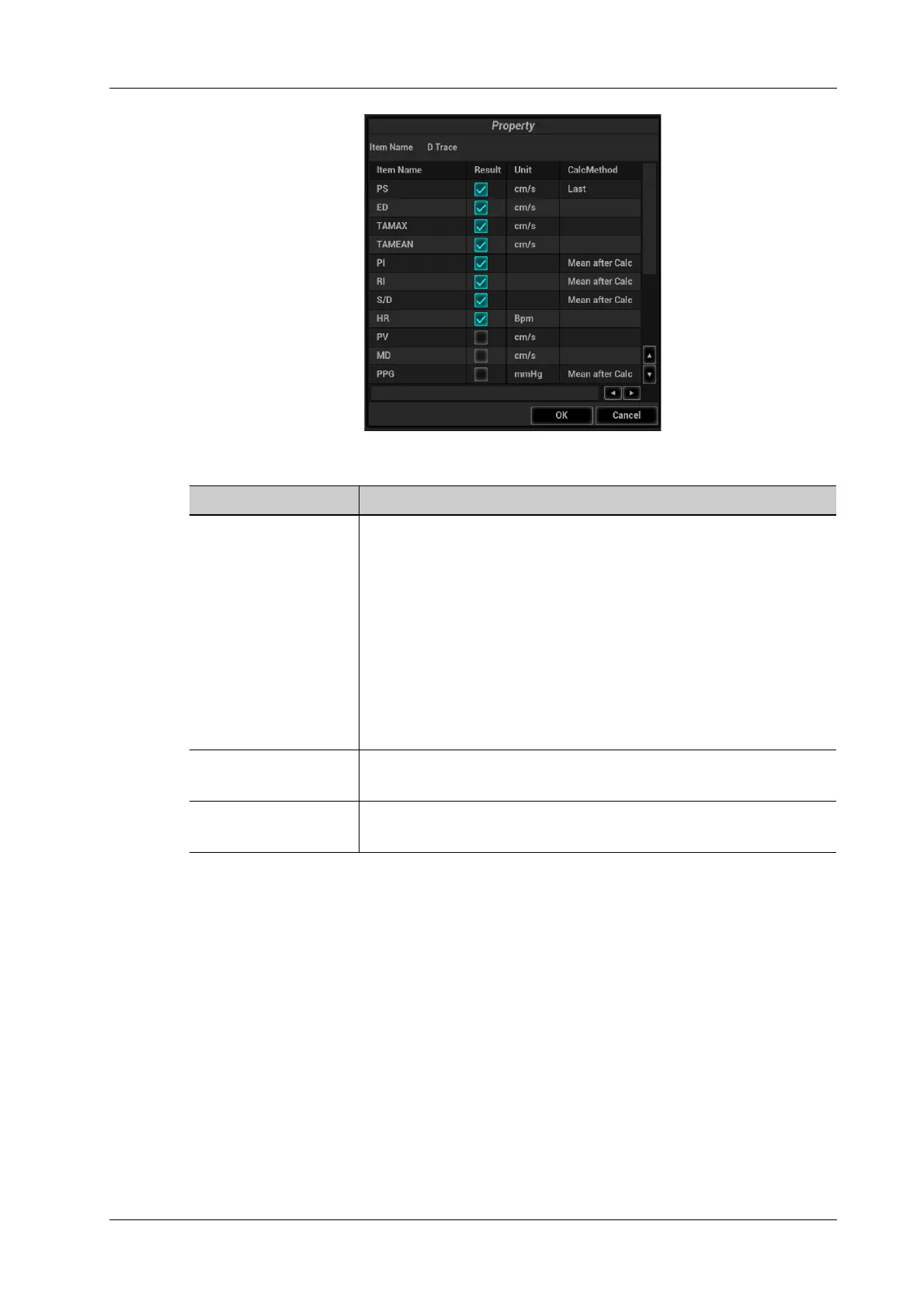

Descriptions of the attributes are shown in the following table:
c. Click [OK] to confirm the setting.
7. Select the measurement sequence.
– [Repeat]: after the current measurement is completed, the system automatically activates
the current tool again.
– [Next]: after the current measurement is completed, the system automatically activates the
next tool in the menu.
– [None]: after the current measurement is completed, the cursor can be moved over the
whole screen. And the cursor will automatically return to the menu of the corresponding
measurement.
8. Click [OK] to confirm.
Item Description
Item Name & Result Results obtained from D trace are listed. The selected items will be
displayed in the results window after measurement.
• If PV is selected, other results become deselected (except the
temporary result “velocity”).
• Some results, such as PS and ED, can be derived via a simple
method (e.g., Velocity), but others, such as TAMAX, can only be
derived via complicated methods such as Manual, Spline, Auto, etc.
• Only Vel. is available in [Method] if only PS or ED is selected.
• Methods for obtaining PS and TAMAX simultaneously (trace, spline
and auto) should be chosen if both PS and TAMAX are selected
(TAMEAN should use auto method).
Unit Select the measurement unit.
Click “Unit” column of each item to select.
CalcMethod Select the measurement method for the tool.
Click “CalcMethod” column of each item to select.
