11-19

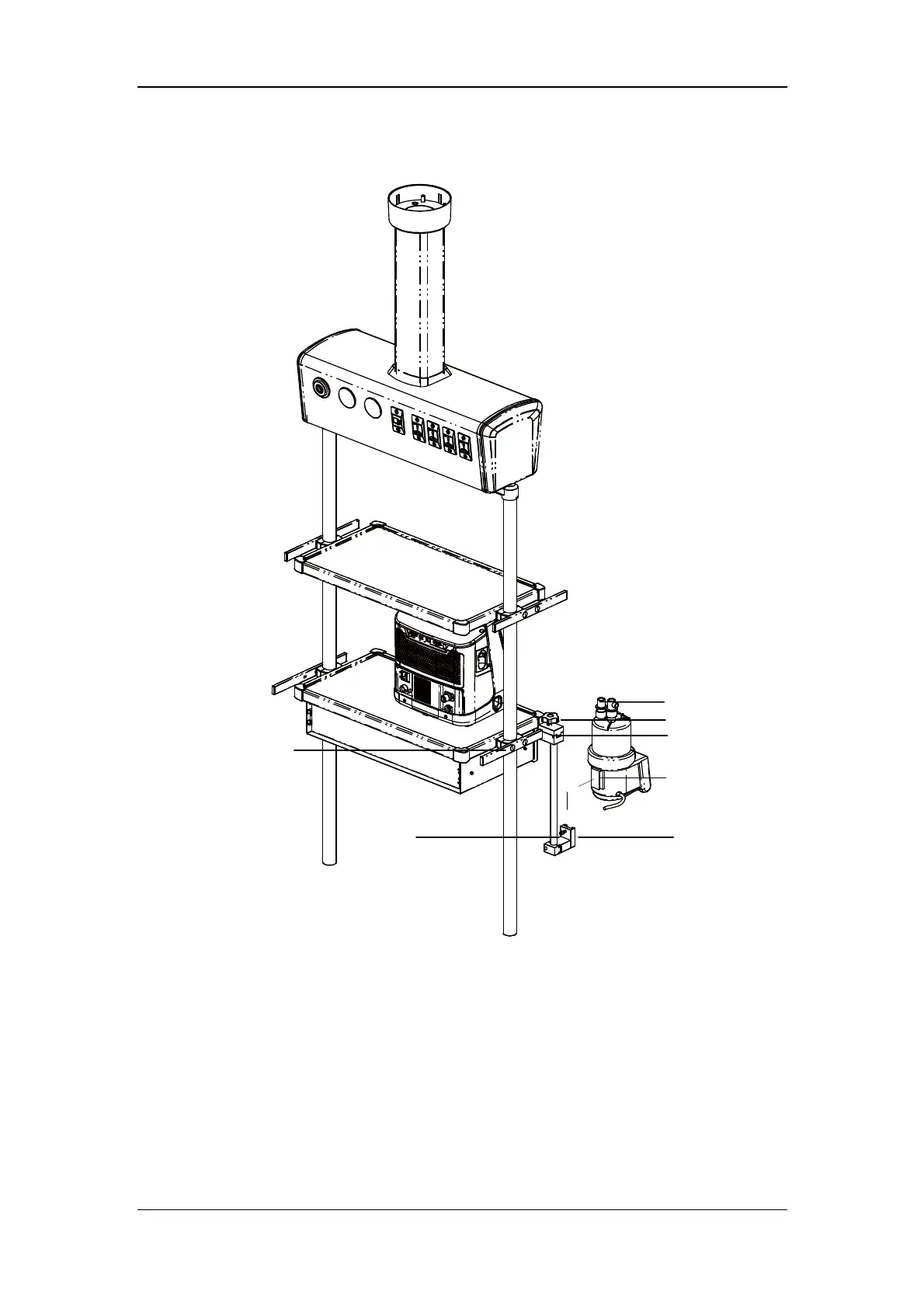

11.2.9.1 Humidifier on the Pendant
A. Humidifier B. Fixing block knob C. Fixing block
D. Humidifier mounting plate E. Humidifier bracket slot F. Screw
G. Beam
 To disassemble the humidifier from the pendant:
1. Disconnect the tubes from the humidifier.
2. Remove the screw.
3. Lift up the humidifier to remove it from the humidifier bracket fixed seat.
B
D
E
F
A
C
G
