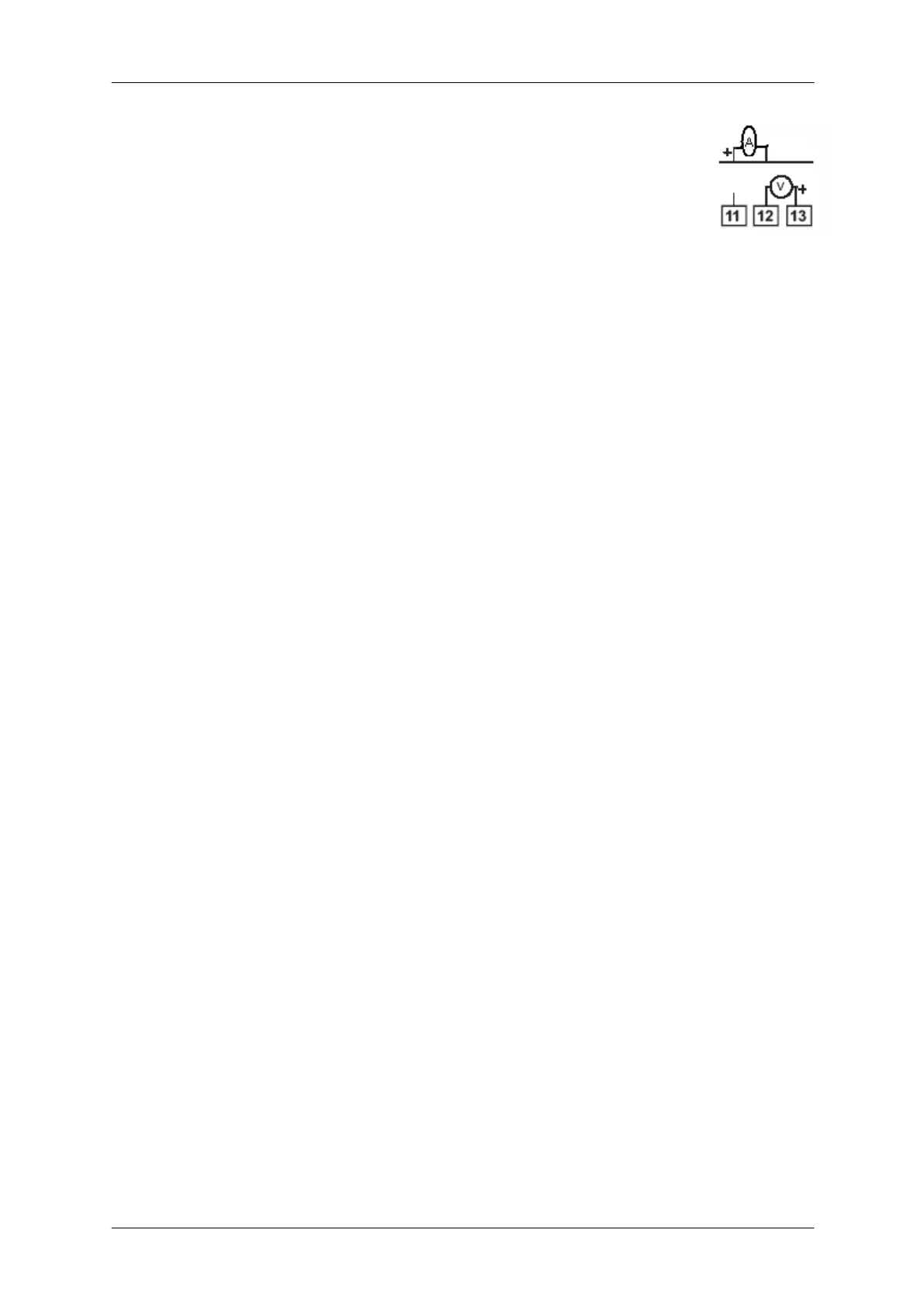

2.5. Connecting Output OUT3
The Out3 is an analog output through which voltage or current can be led
based on the configuration.
Current (0...20mA) ports: 11, 12
Voltage (0...10V) ports: 12, 13
Its current output is configurable 0/4...20 mA, short-circuit proof.
Control range:
-0.5....23 mA
Load:
<
600 Ω
Load effect:
<0.02%
Resolution:
<
1.5 µA
Error:
<0.1%
Its voltage output is configurable 0/2...10V, not permanently short-circuit proof
Control range
0.15...11.5 V
Load:
>
2 kΩ
Load effect:
<0.06%
Resolution:
<0.75 mV
Error:
<
0.1%
Additional error when
using the current output
simultaneously
<
+0.09%
