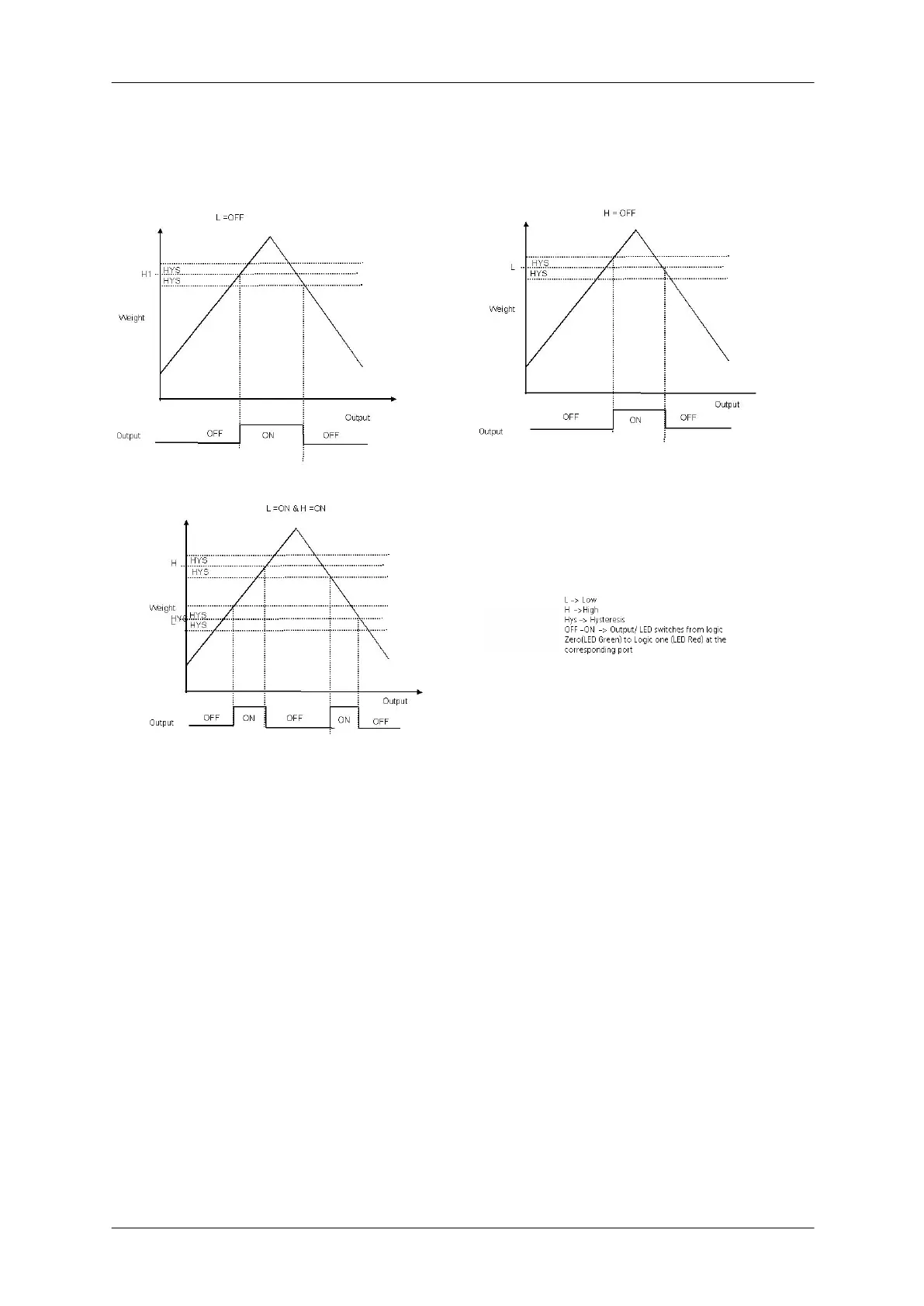

5.2.4. Operating Principle: Limit Value Processing
Note:
The limit values have to be entered in units of weight.
If confout.nO.Act1.(inverse), output will be generated which is inverted to the figure shown above.
With measurement value or signal change with latch selected ( ConF / Lim / Fnc.x = 2, 4), the alarm relay remains
set until it is reset in the error list.
This alarm can be reset via:
di1 or
a limit value or
a key combination.
For this, reset the error list.
After power on or an engineering download, a used input filter has an effect on the gradient of the input signal.
Therefore, valid alarm monitoring can only be processed after a certain rise over time. This time depends on the
value of the filter time constant t.F. For t.F = 0, the monitoring results are valid immediately.
