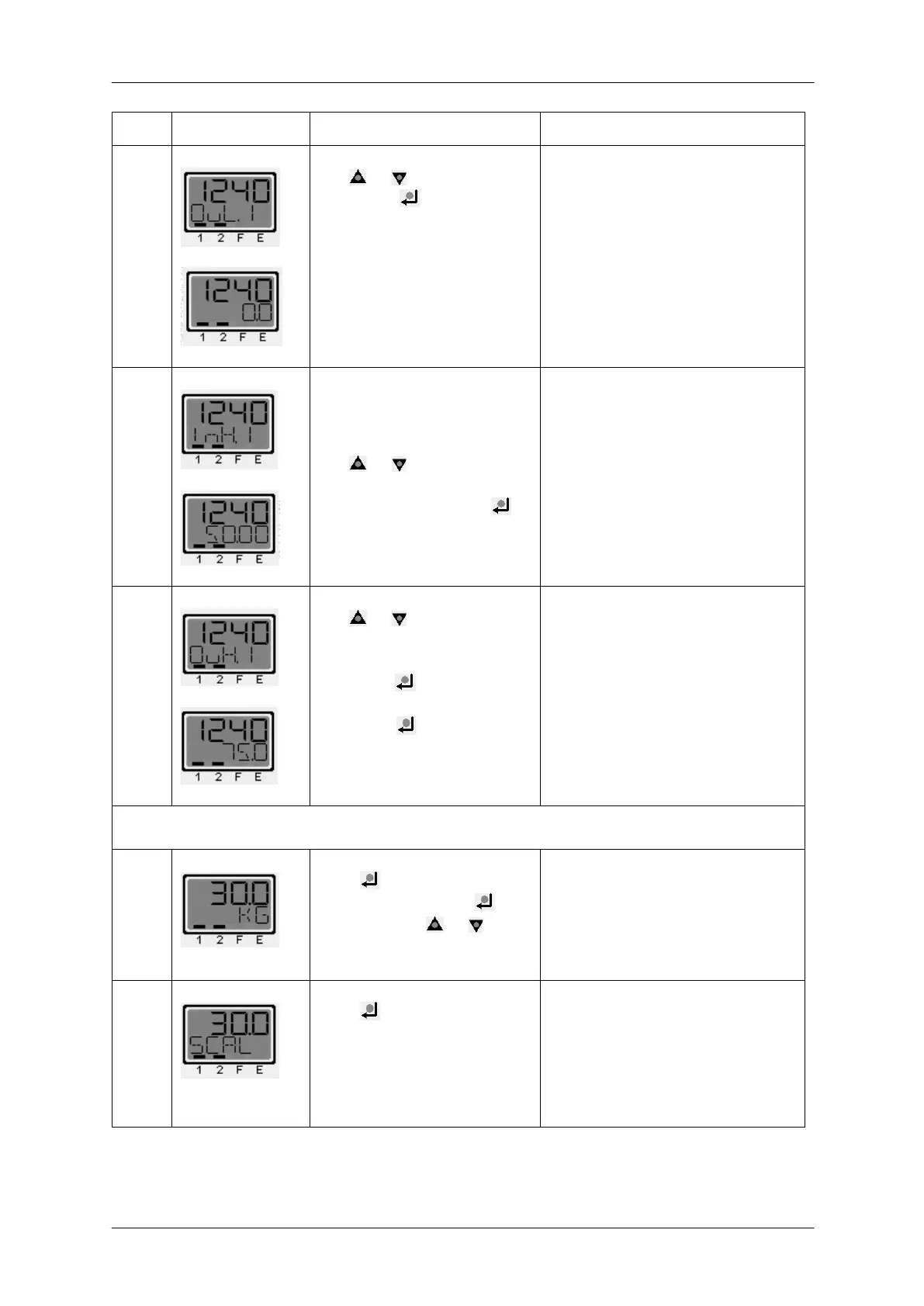

Step
Display Line 2
Operation
Description
4.
OuL.1
Use or and set zero.
Then press .
In this menu level, the display
alternates between OuL.1 and
zero. Setting 0% corresponds to
zero weight.
5.
InH.1
Setting the calibration
weight.
Use or
and set its Pspan
percentage. Then press .
In this menu level, the display
alternates between InH.1 and
percent value.
The span percentage is given as
Pspan [%] = (calibration weight
*100 ) / total load cell capacity.
6.
OuH.1
Use or and set the
calibration weight.
Then press . The display
shows dOnE and moves to
End. Press to go to
normal display mode.
Set the full-scale deflection in
the system.
Dead Load Calibration
7.
kg
Press for more than 3 sec
to display InSt. Press to
go to SEt. Use or and
move to SCAL
After finishing the full-scale
calibration, the dead weight is
shown in display1.
8.
SCAL
Press to move to
calibration by value.
Now the display shows InL.1.
Here, calibration by value can be
performed
