3.2.1.3 Handling VE25_V3, VE32_V3 and VE40_V3
Handling these fittings is somewhat different as compared to the way the two other models are operated,
whereat the new fittings offer significant advantages:
It is by far easier to establish an air-tight connection between hosepipe and connector.
Less effort is required for affixing the hosepipe in the connector (no clamping ring, no union nut).
The only downside of the new parts can immediately be spotted as their most prominent distinction: The
necessity of tools or means of aid for loosening the connection once the hosepipes have been put inside the
connectors. A suiting tool (VEOPENER) will of course always be part of our deliveries. No tools are required,
on the other hand, for the establishment of the connection of hosepipe and connector.
The handling in detail:
1) Again, cut the hosepipe as straight and even as possible. We recommend the use of nippers built for that
purpose (can be ordered with us).
2) Also like above (see there), the connectors have to be affixed to either the showcase wall or to an
intermediate piece/flange using the rubber gasket and the counter nut (make sure that this connection is
air-tight).

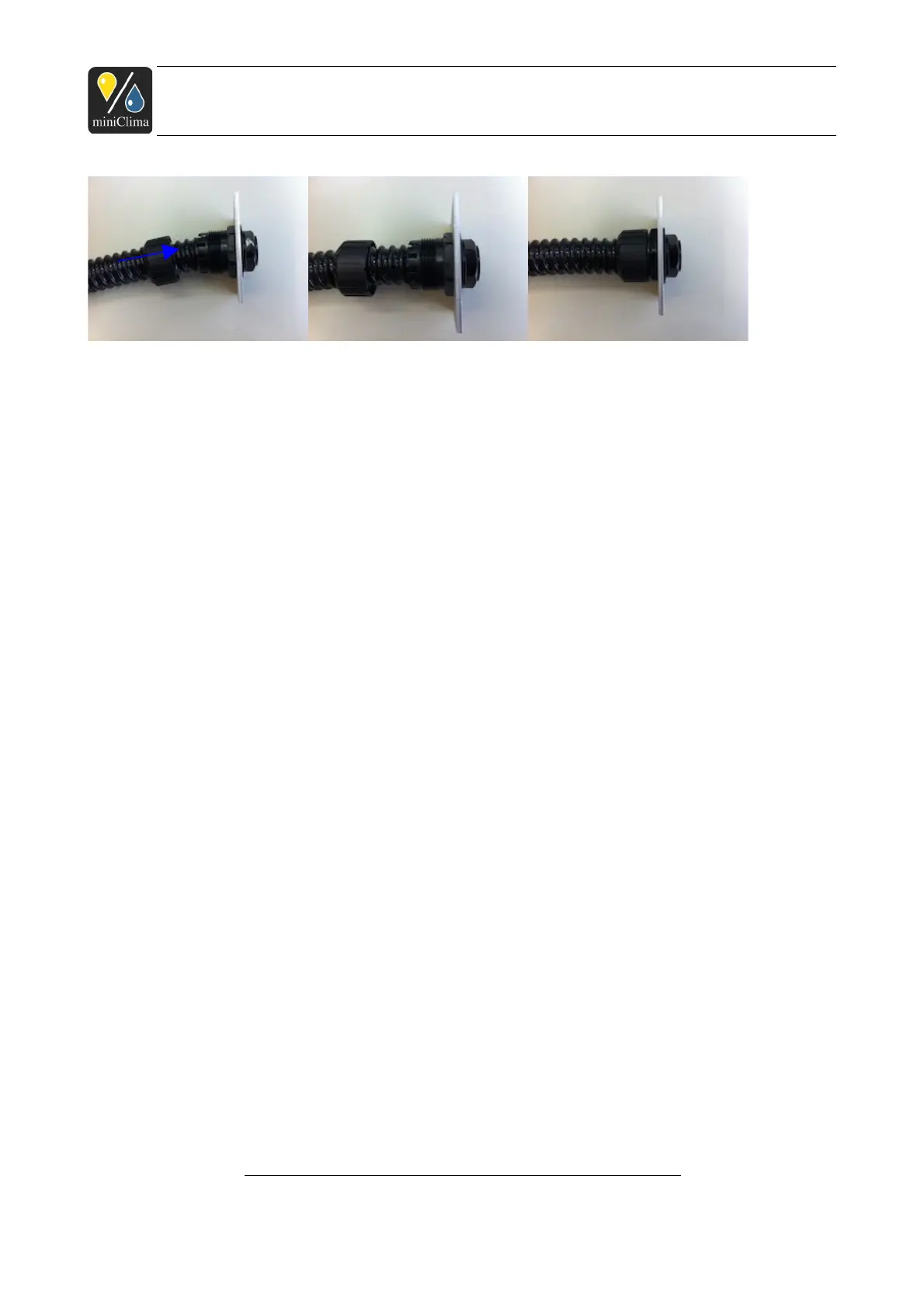

3) Finally, simply press the delivered hosepipe into the connector until it stops. Have the fixing clips of the
connector closed while doing so. There is no need to open them up in the beginning. There is also no
need for the use of any tools for this process.
Applies analogously to the individual products of series EBC10/11/12 (Rev.3). As of 24.11.2014. Subject
to modification.
