MIRCOM TECHNOLOGIES LIMITED, ADC Series: Autodialer Telephone Access Systems Page 20

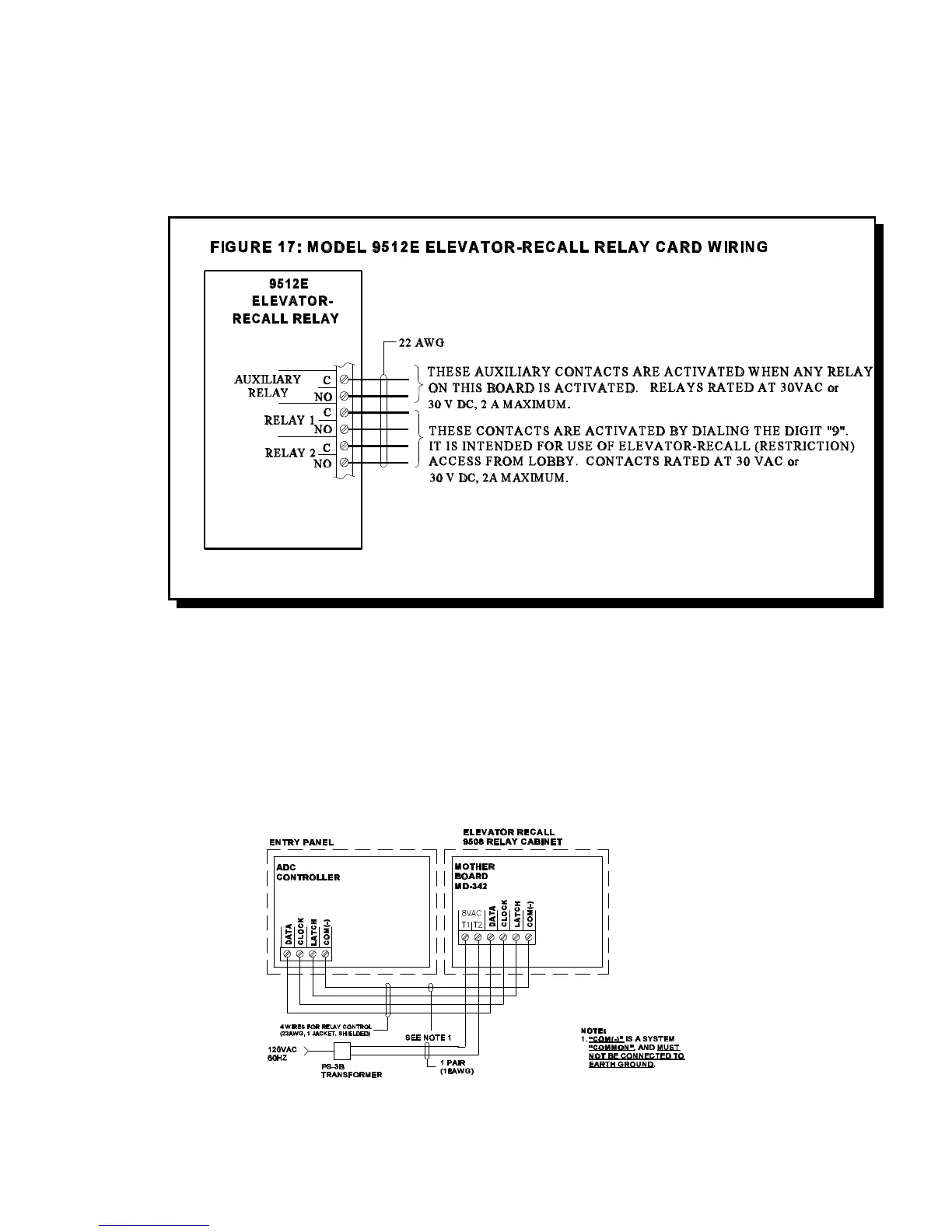

WIRING THE 9512E ELEVATOR-RECALL RELAY CARD
The 9512E Elevator-Recall Relay Card provides Common (C) and Normally Open (NC) contacts marked on the
board silkscreen. The very first relay marked Aux Rly is an auxiliary relay which is activated any time another relay
on the board is activated. The relays available for Elevator-Recall (Restriction) are labelled Relay 1 to Relay 12.
Wiring is achieved at the terminal block which is removable for easy installation.
The following diagram shows the wiring between the ADC Controller and the Elevator Restriction (Recall) Relay
Cabinet motherboard.
