FleX-Net
TM
Installation and Operation Manual
7

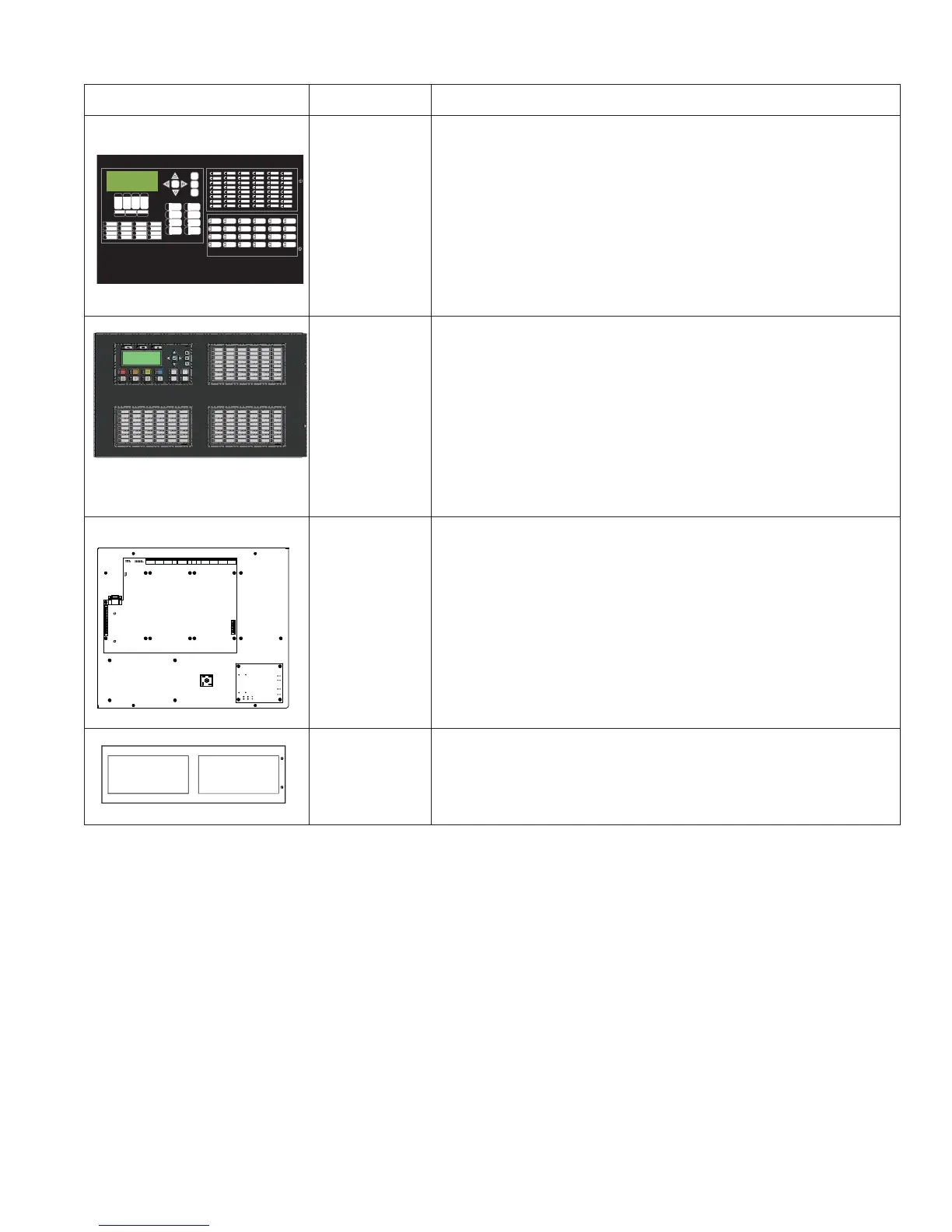

FX-2009-12N
12 Amp Large Main Chassis. This large main chassis comes complete
with one Analog Loop Controller (99 Analog Sensors and 99
Addressable Modules), 4 Class A/B (Style Z/Y) NACs (1.7 Amp each), a
4 line by 20 character back-lit LCD display, 16 zone LED annunciator and
a 12 ampere power supply which charges 17-65 AH batteries. The FX-
2009-12N supports the FNC-2000 Network Controller Module over the
main board plus additional space in the chassis for 8 adder boards. This
chassis mounts in the BB-5008 or BB-5014 black backbox/black door or
BB-5008R black backbox/red door.
This is model does not support any network audio.
FX-2009-12NDS
12 Amp Large Main Chassis. This large main chassis comes complete
with one Analog Loop Controller (99 Analog Sensors and 99
Addressable Modules), 4 Class A/B (Style Z/Y) NACs (1.7 Amp each), a
DSPL-420 4 line by 20 character back-lit LCD display, and a 12 ampere
power supply which charges 17-65 AH batteries. The FX-2009-12NDS
supports the FNC-2000 Network Controller Module over the main board
plus additional space in the chassis for 8 adder boards. This chassis
mounts in the BB-5008 or BB-5014 black backbox/black door or BB-
5008R black backbox/red door.
This is model does not support any network audio.
FX-2000MNS
Consists of a backplate which is mounted into the BBX-FXMNS backbox
and a FX-2000N Fire Alarm Control board and a battery disconnect
board.
ECX-0012
Expander Chassis to use with the FX-2009-12N. It provides space for 12
adder modules and two display modules. This chassis mounts into the
BB-5008(R) or BB-5014 backbox.
ALARM
QUEUE
SUPV.
QUEUE
TROUBLE
QUEUE
MONITOR
QUEUE
A.C. ON
PRE-ALARM
GND FAULT
Mircom FX-2000
Fire Alarm Control Panel
Normal Condition
December 31, 1999
SIGNAL
SILENCE
GENERAL
ALARM
2nd STAGE
AUTO CANCEL
FIRE
DRILL
SYSTEM
RESET
LAMP
TEST
ENTER
MENU
CANCEL
INFO
ZONE
BYPASS
#1
ZONE
BYPASS
#2
ZONE
BYPASS
#4
ZONE
BYPASS
#3
ZONE
BYPASS
#5
ZONE
BYPASS
#6
ZONE
BYPASS
#8
ZONE
BYPASS
#7
ZONE
BYPASS
#9
ZONE
BYPASS
#10
ZONE
BYPASS
#12
ZONE
BYPASS
#11
ZONE
BYPASS
#17
ZONE
BYPASS
#18
ZONE
BYPASS
#20
ZONE
BYPASS
#19
ZONE
BYPASS
#13
ZONE
BYPASS
#14
ZONE
BYPASS
#16
ZONE
BYPASS
#15
ZONE
BYPASS
#21
ZONE
BYPASS
#22
ZONE
BYPASS
#24
ZONE
BYPASS
#23
Cutout to mount
display module
Cutout to mount
display module
