Audio Network Card and Telephone Network Card
90
Audio Network Card and Telephone Network Card

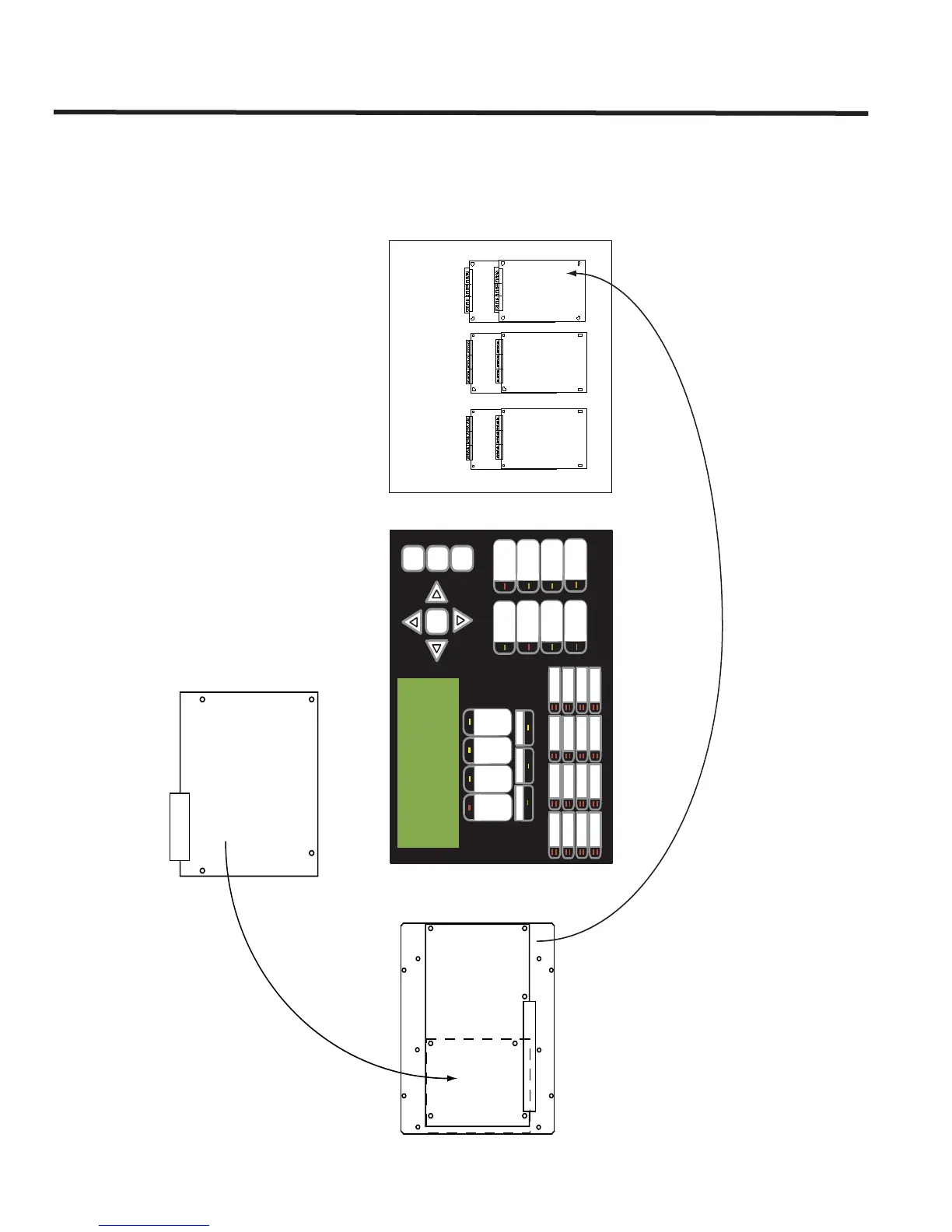

Each Integrated Fire/Audio Cabinet requires an ANC-5000 Audio Network Controller Card. The TNC-5000
Telephone Controller Network card is necessary only if Telephone circuits are required. Below is a diagram for
mounting both audio and telephone cards into the large network fire alarm chassis, FX-2009-12N/DS.
ANC-5000
FX-2009-12N Front Door
Partial Interior View
(to right of main board)
TNC-5000
ALARM
QUEUE
SUPV.
QUEUE
TROUBLE
QUEUE
MONITOR
QUEUE
A.C. ON
CPU FAULT
GND FAULT
SIGNAL
SILENCE
GENERAL
ALARM
ACKNOW-
LEDGE
FIRE
DRILL
SYSTEM
RESET
LAMP
TEST
ENTER
MENU
CANCEL
INFO
LED 0
LED 1
LED 2
LED 3
LED 4
LED 5
LED 6
LED 7
LED 8
LED 9
LED 10
LED 11
LED 12
LED 13
LED 14
LED 15
CONFIGURABLE
SWITCH/LED 3
CONFIGURABLE
SWITCH/LED 7
MGC Network
Fire Alarm Control Panel
Normal Condition
April 20, 2012
5
6 4
8
9 7
Metal plate mounts
over positions 4 to 9
inclusive
TNC-5000 board
mounts over ANC-5000
board
To Next Page
