Mircom flexnet - Integrated Fire;Audio Cabinet Mechanical Installation

FleX-Net
TM
Installation and Operation Manual
77
FleXNet
TM
Mass Notification System (BBX-FXMNS) Enclosure
This enclosure can accommodate all existing modules, except the QMP-5101N Network Master Paging Control
module and the QMT-5302N Master Firefighters’ Telephone. New models, QMP-5101NV vertical mounting master
paging microphone and QMT-5302NV Master Telephone panels are used instead to mount within the BBX-FXMNS
Enclosure. The BBX-FXMNS enclosure includes a backbox and a two part door and display deadfront chassis.

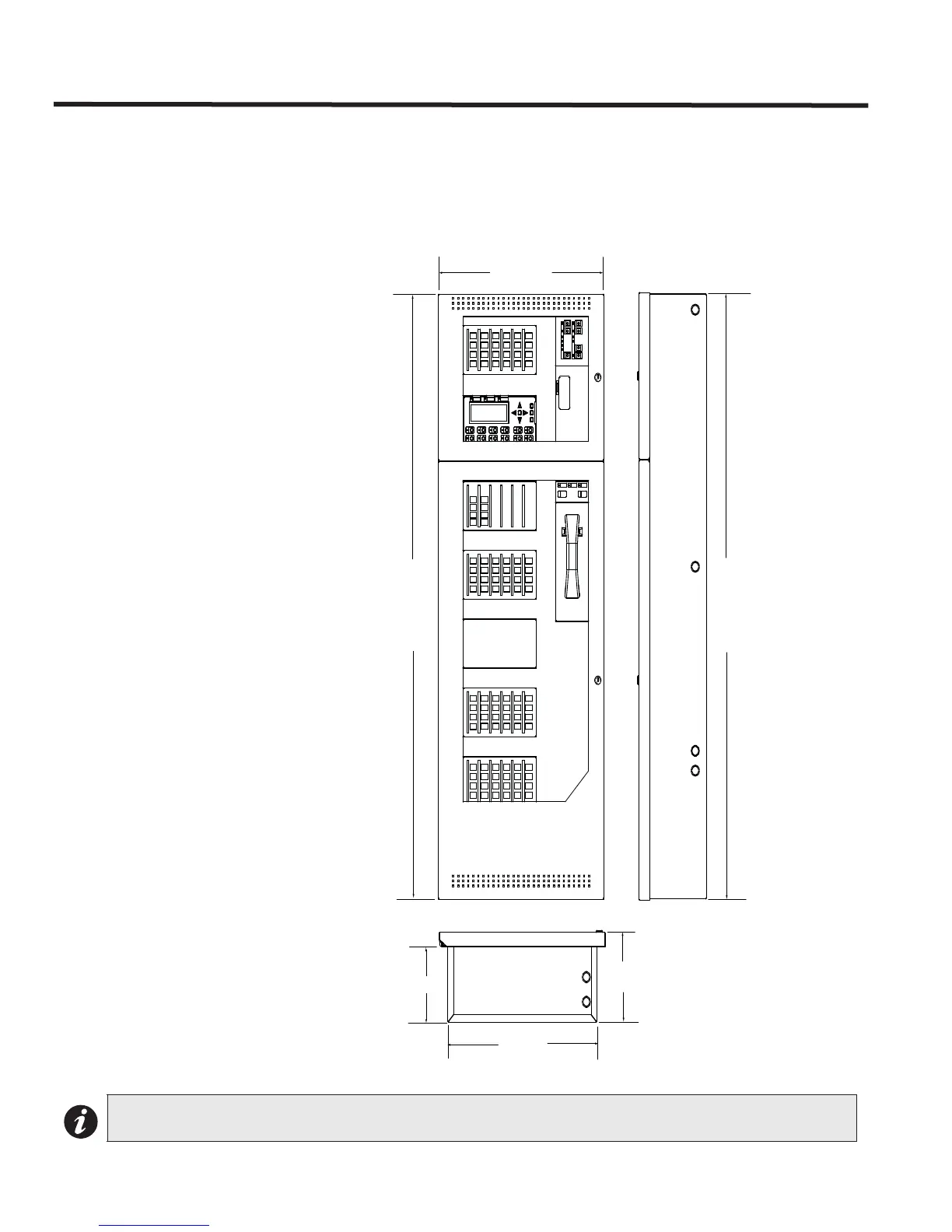

Figure 50: BBX-FXMNS Enclosure
Notes: When using the BBX-FMNS as a Mass Notification System (ACU) refer to Appendix J.
*/$0.*/(
$"--
$-&"3"--
$0//&$5
."45&35&-
5306#-&
$0..0/5&-
5306#-&
'"/%".1&3
9”
7.6”
20”
62.7”
22.4”
61.1”
