FleX-Net
TM
Installation and Operation Manual
73
Typical FleX-Net
TM
System Layouts with Audio
The following figures show two typical applications for the FleX-Net
TM
system with audio.
Figure 48 below shows a typical FleX-Net
TM
system layout with the main lobby control panel as Node 1 and the
combination Fire Alarm and Audio Network systems as Node 2 and 3. The diagram also shows addressable fire
alarm loops, paging and telephone connections and audio cabinets.

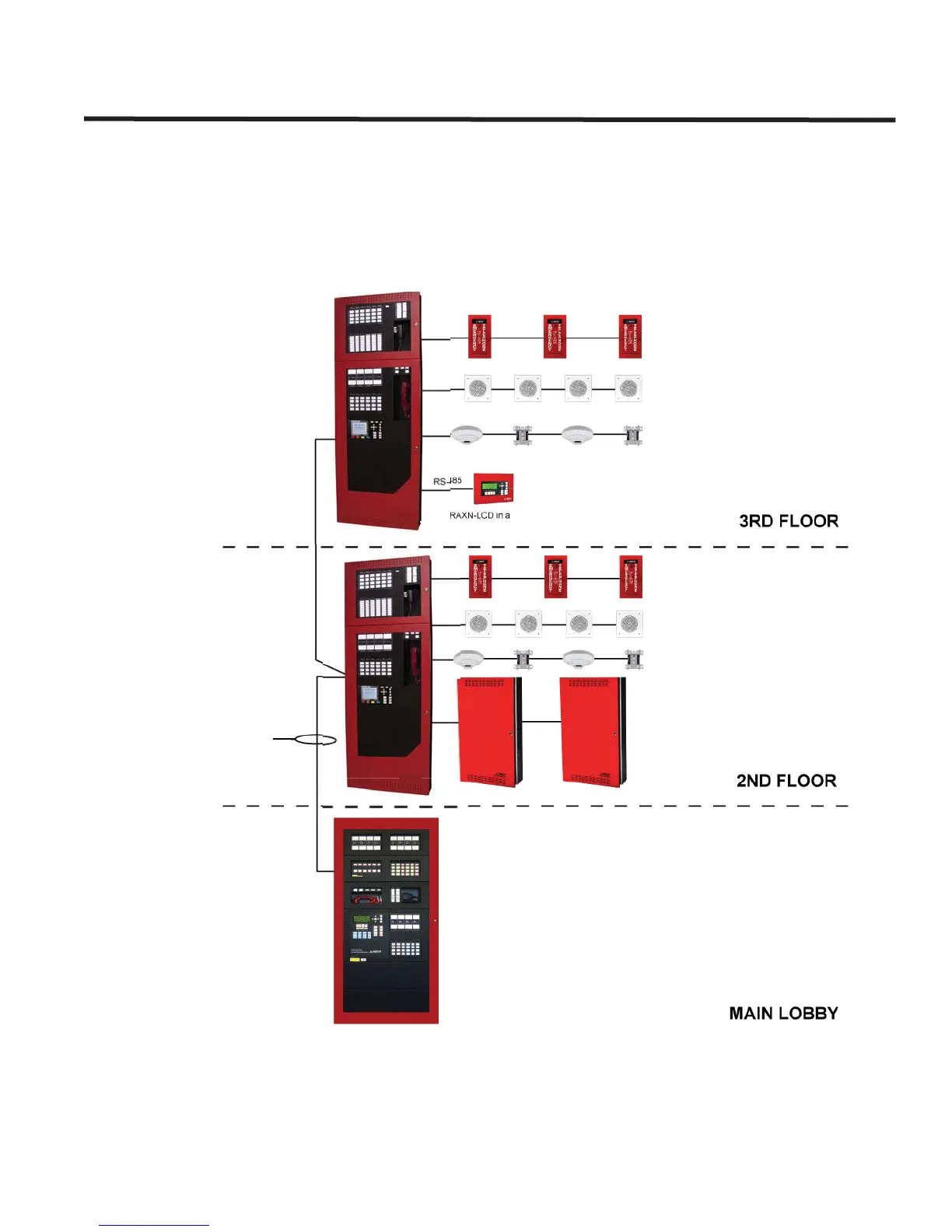

Figure 48: Typical FleX-Net
TM
System with Audio Nodes
1 twisted pair for
ARCnet Network,
Audio and Telephone
Node 1
CACF
Central Alarm and Control Facility
-addressable re alarm control
-master telephone handset
- telephone zone selector modules
-master paging microphone
-paging zone selector modules
-bypass switch modules
-fan damper control modules
-LED annunciator modules
Five Telephone Audio Channels
Audio Channels for paging,
pre-recorded messages and tones
Addressable Loop
Five Telephone Audio Channels
Audio Channels for paging,
pre-recorded messages and tones
Addressable Loop
MMX-BB-1001R
MMX-QBB-5001R
MMX-QBB-5001R
To Next Page
