Typical FleX-NetTM System Layouts with Audio
74
Figure 49 below shows the FleX-Net
TM
fire alarm and audio shown within the Integrated Network Fire/Audio cabinet
as Node 2 and 3. Paging and telephone devices are hooked up to Nodes 2 and 3.

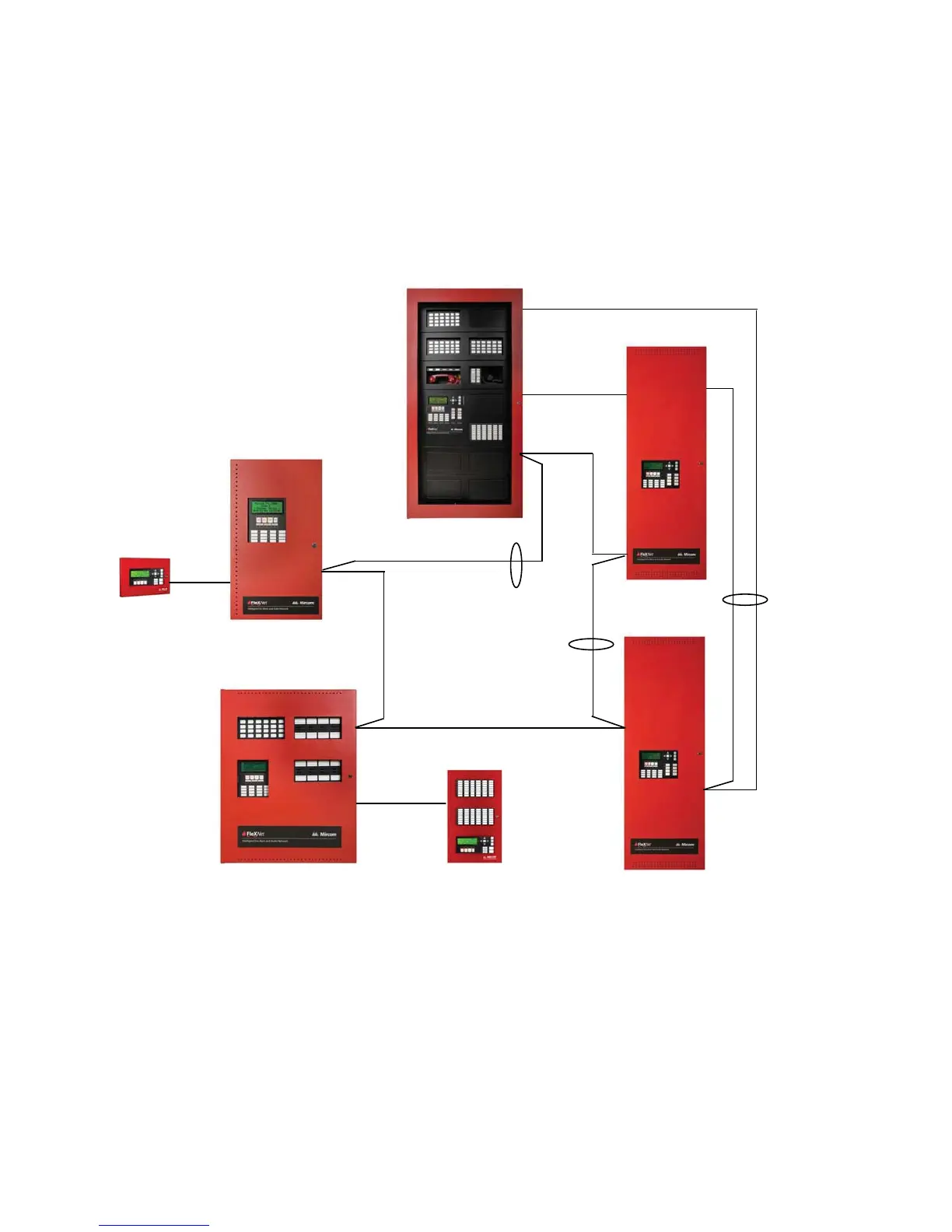

Figure 49: Typical FX-2000N Network System with Audio and Non-Audio Nodes
CACF
Node 1
Node 2
Node 3
Node 4
RAXN-LCD in a BB-1003R
RS-485
RS-485
RAXN-LCD in a BB-1001R
Node 5
BBX-2000R
FX-2017-12N in a BBX-1072AR
FX-2003-12N in a BBX-1024R
BBX-2000R
Optional
1 pair for Paging Audio
1 pair for Telephone Audio
1 pair for ARCnet Network
Class A Wiring
NOTE: Wiring for ARCnet Network, Audio and Telephone can be as
shown (3 pairs) or 1 pair as shown in Figure 46
