Paging Modules
108

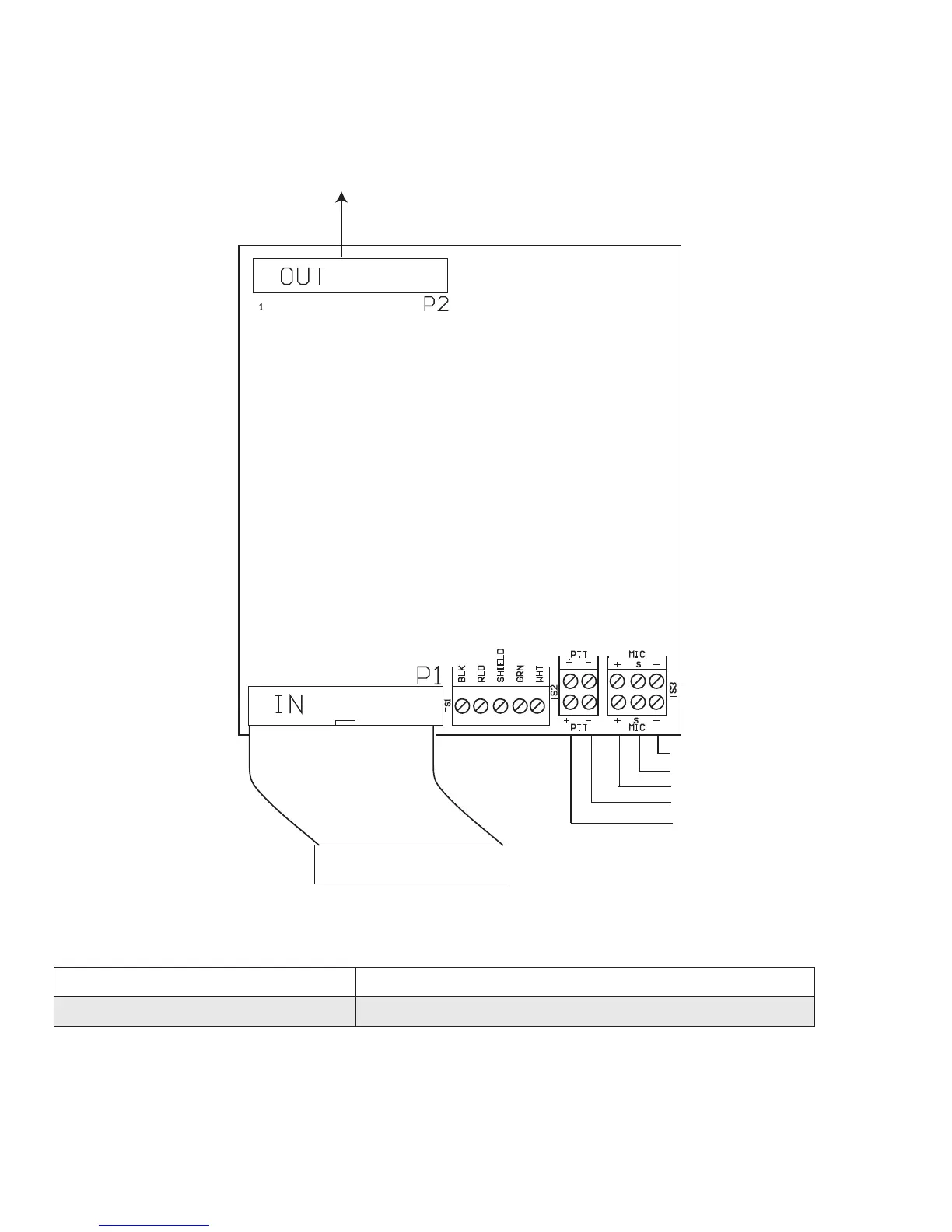

Figure 76: QMP-5101N/V Network Master Paging Control Module Connections and
Terminal Blocks
The interface wiring between the Q
MP-5101N and ANC-5000
is as follows:
The maximum wiring run from the QMP-5101N a
nd the ANC-5000 is 20 feet or 6 metres
.
MIC+, MIC-, SHLD:
18-22 AWG T
wisted Shielded Pair
PTT+, PTT
-:
18-22 AW
G T
wisted Pair
T
O QAZT
-5302
/
DS SELEC
TOR P
ANEL
or NEXT DISPLA
Y MODULE
CABLE CONNECTS
TO
PREVIOUS DISPLA
Y MODULE
WIRED T
O
MICROPHONE
T
O ANC-5000
111
113
Table of Contents
Table of Contents
3
Introduction
5
Additional Features
7
Document Conventions
7
System Components
10
Mechanical Installation and Dimensions
18
Chassis Installation
23
Module Mounting Locations
26
Display and Adder Modules Mounting Locations
28
Module Settings
31
Basic Mode
41
Field Wiring
48
Main Fire Alarm Module Terminal Connections
48
Analog Loop Wiring
50
FNC-2000 Fire Network Controller Module
56
FOM-2000-SP Fiber Optic Network Adder Module
57
Detection Module (DM-1008A) Terminal Connections
58
Signal Module (SGM-1004A) Terminal Connections
59
Relay Module (RM-1008(A)) Terminal Connections
60
Polarity Reversal and City Tie Module (PR-300) Wiring
61
UDACT-300A Main Board Terminal Connections
62
Power Supply Connections
63
Wiring Tables and Information
64
System Checkout
66
Indicators, Controls, and Operation
67
Common Indicators
68
Common Controls
69
Single Stage Operation
71
Two Stage Operation
71
Pre-Signal Operation
72
Circuit Types
73
Configuration
76
Configuration Backup, Query and Fast-Forward
76
OPEN Graphic Navigator Software Package
76
Ethernet Port
76
Boolean Logic Engine
76
Uboot Based Bootloader
76
Typical Flex-Nettm System Layouts with Audio
77
System Components for the Integrated Fire/Audio Cabinet
79
Network Fire Alarm
79
Network Controller Modules
79
Fiber Optics Module
80
Adder Modules
80
Auxiliary Modules
80
Programmable Modules
80
Flexnettm Mass Notification System (BBX-FXMNS) Enclosure
81
Integrated Fire/Audio Cabinet Mechanical Installation
85
Mechanical Installation for the Expansion Audio Cabinet
87
Integrated Fire/Audio Cabinet - Audio Module Placement and Internal Wiring
89
Integrated Fire Alarm Connection
90
Battery Power
90
Transformer Power
90
QBB-5001/R Expansion Audio Cabinet Module Placement
91
QPS-5000N Power Supply Connection
92
Installing and Removing Amplifiers
92
Multiple QBB-5001/R Cabinet Connections
93
Audio Network Card and Telephone Network Card
94
Audio Amplifier Wiring
95
QAA-5230-70/25 Amplifier Wiring
95
QAA-5230S-70/25 Amplifier Wiring
96
QAA-5415-70 and QAA-5415-25 Amplifier Wiring
97
Qaa-5160-70/25
101
Backup Amplifier
103
Displays & Controls
104
Setup
105
QBB-5001/R Amplifier Installation
105
Before Turning the Power "ON
105
Audio Configuration
105
Lobby Enclosures
106
ANC-5000 Audio Network Controller Module
107
ANC-5000 Wiring
108
QMP-5101NV Vertical Paging Control Module
110
Paging Modules
111
QMP-5101N Network Master Paging Control Module
111
QMP-5101N/V Network Paging Wiring
113
Paging Operation
114
TNC-5000 Telephone Network Controller Module
116
TNC-5000 Telephone Wiring
120
QMT-5302NV Vertical Master Telephone
122
QMT-5302N Master Firefighters' Telephone
123
QMT-5302N Connections
124
QAZT-5302/DS Network Firefighters' Telephone Selector Panel
125
Telephone Operation
127
Appendix A: Specifications
128
Compliance
129
ULI/ULC Integrated Fire Alarm and Audio Panel Specifications
130
Appendix B: Power Supply and Battery Calculations
132
Raxn-Lcd/Raxn-Lcdg
133
Appendix C: DIP Switch Settings
134
ANC-5000 Board with Ethernet Port, Address Setting (DIP SWITCH SW1)
135
ANC-5000 Board Without Ethernet Port, Address Setting (DIP SWITCH SW1)
135
ACN-792M Loop Adder Module (CPU) Address Setting (DIP SWITCH SW1)
135
RAXN-LCD/RAXN-LCDG Remote Annunciator Address Setting (DIP SWITCH SW1)
135
Appendix D: Alarm Verification Timing
135
Appendix E: Wiring for Addressable Supervised Output Module
136
Appendix F: ULC Compatible Speakers
137
Appendix G: ULI Compatible Speakers
138
Appendix H: Power Supply & Batteries for Audio
139
Appendix I - POWER-LIMITED WIRING SCHEME
140
Appendix J FXMNS Used as a Mass Notification System (ACU)
141
Warning Please Read Carefully
146
Warranty & Warning Information
146
Limited Warranty
148
Out of Warranty Repairs
149
