Mircom flexnet User Manual

Module Mounting Locations
114
Typical Addressable Telephone Set-up
The typical addressable telephone set-up is with an addressable fire alarm system using the TNC-5000 and from
the TNC-5000 to the Master Telephone (QMT-5302N/V). The selector panels (QAZT-5302/DS) are connected to the
Master Telephone by cable only. The MIX-M500FP(A) Control Modules are connected to the addressable loop from
the FX-2000N and to each other and the Master Telephone. Remote telephones are connected to the control
modules.

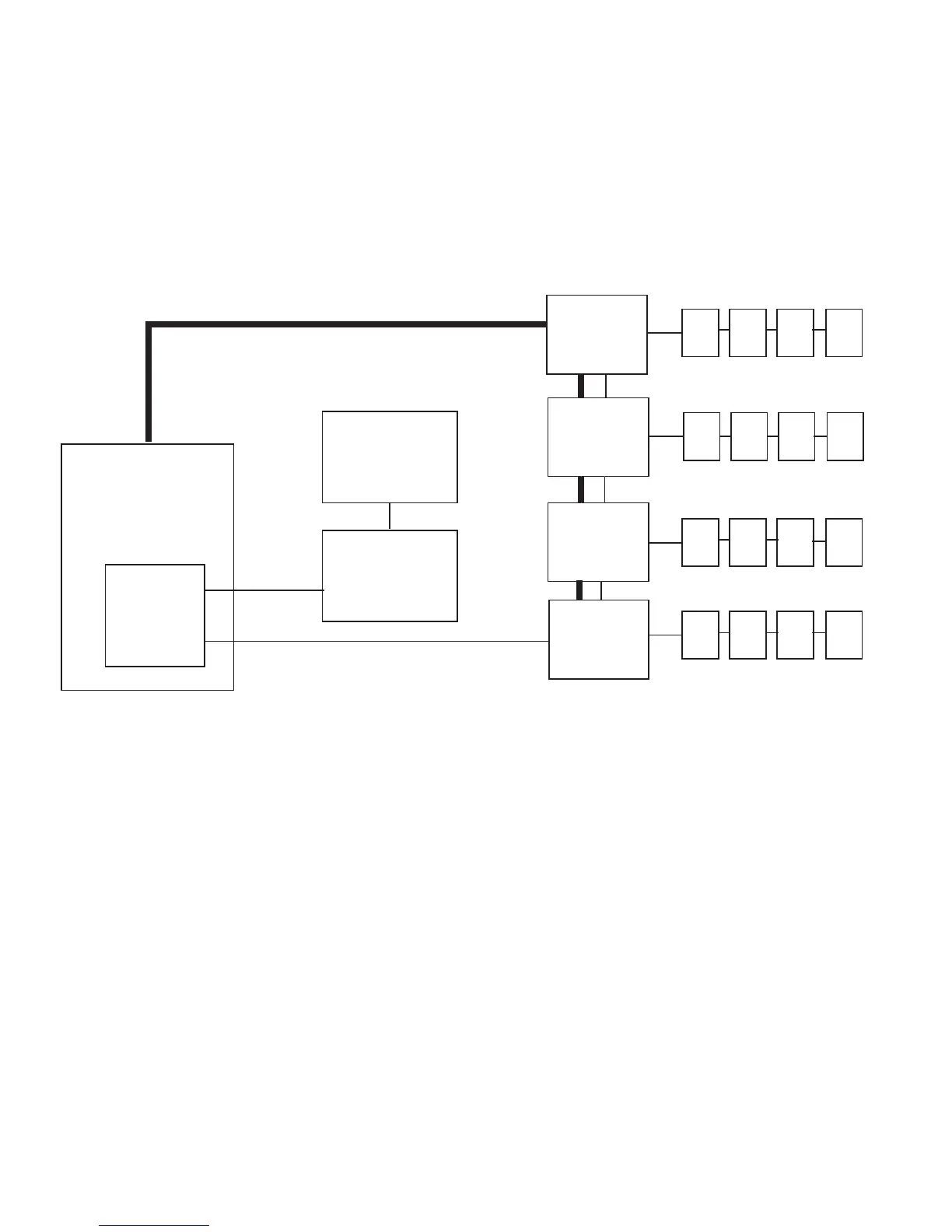

Figure 80: Typical Addressable Telephone Set-up
T T T T
T T T T
T T T T
T T T T
Remote Telephones
Remote Telephones
Remote Telephones
Remote Telephones
MIX-M500FP(A)
CONTROL
MODULE
MIX-M500FP(A)
CONTROL
MODULE
MIX-M500FP(A)
CONTROL
MODULE
MIX-M500FP(A)
CONTROL
MODULE
QMT-5302N/V
ADDRESSABLE
MASTER
TELEPHONE
TNC-5000
TELEPHONE
NETWORK
CONTROLLER
MODULE
QAZT-5302/DS
ADDRESSABLE
TELEPHONE
SELECTOR
FX-2000N
FIRE ALARM PANEL
Addressable Loop
