FleX-Net
TM
Installation and Operation Manual
23

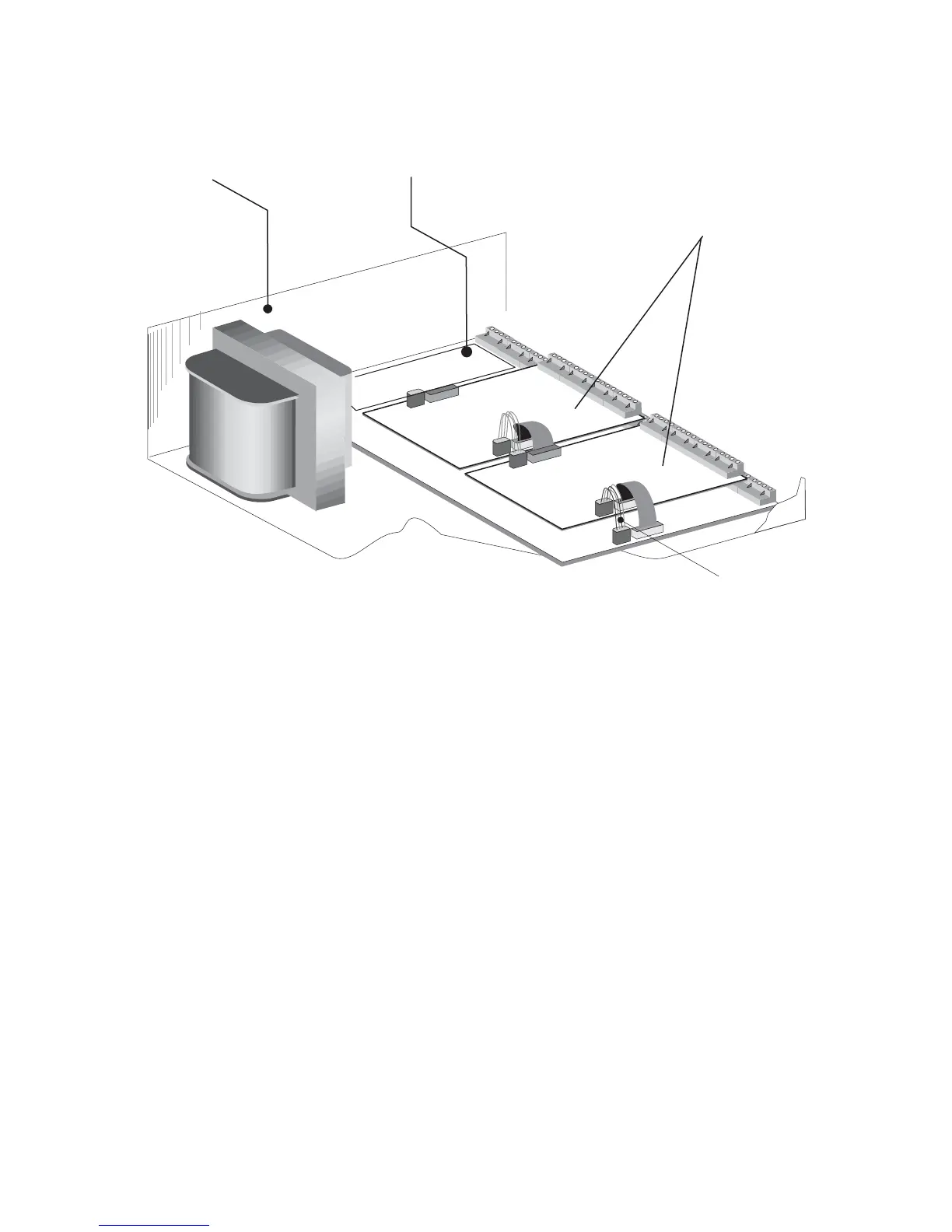

Figure 10: Module Mounting Locations View #2
FNC-2000 Fire Network Controller Module
This module is required in the main lobby and one per node. It mounts over the main fire alarm board, preferably in
position 2. Use the four 2” spacers and four screws to secure the FNC-2000 to the main fire alarm board.
1
2
Main Chassis
FX-20XX-12N/DS
Provision for PR-300 or
UDACT-300A
FNC-2000 in position 2
and other Adder Module
in position 1
MD-579
MD-575 Long Ribbon Cable
MD-579 Short Power Cable
MD-580 Long Power Cable
To Next Page
