Mechanical Installation and Dimensions
10

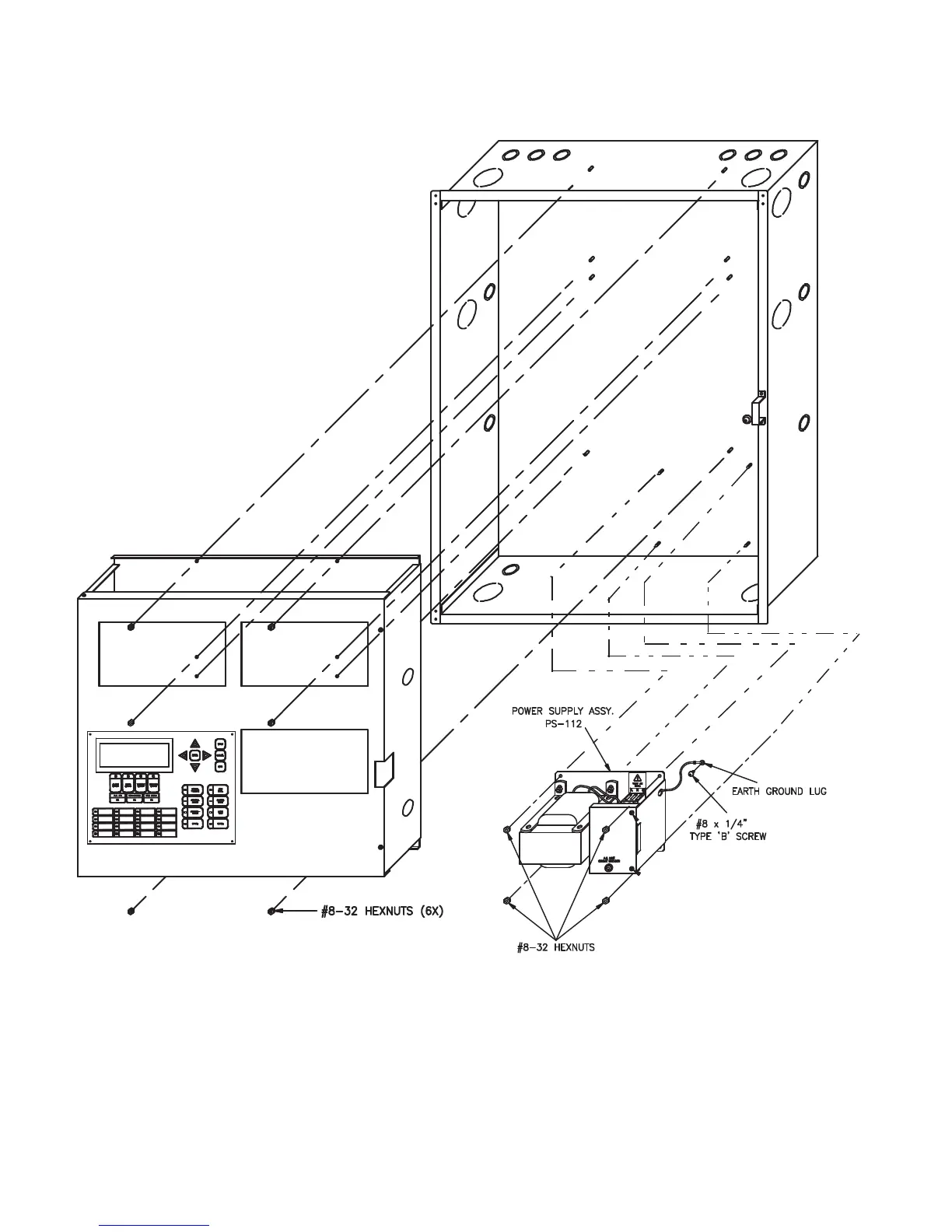

Figure 5: Chassis Installation into BBX-1072A
Mount chassis FX-2017-12A into backbox BBX-1072A using the supplied hexnuts as shown below.
