FX-2000 Series Installation and Operation Manual
41
Detection Module (DM-1008A) Terminal Connections
Wire devices to terminals as shown in Figure 34 below. See Wiring Tables and Information on page 47, Appendix
A: Specifications on page 59 for specifications, and Appendix B: Compatible Devices on page 61 for compatible
devices. Jumpers are required for Class A operation.

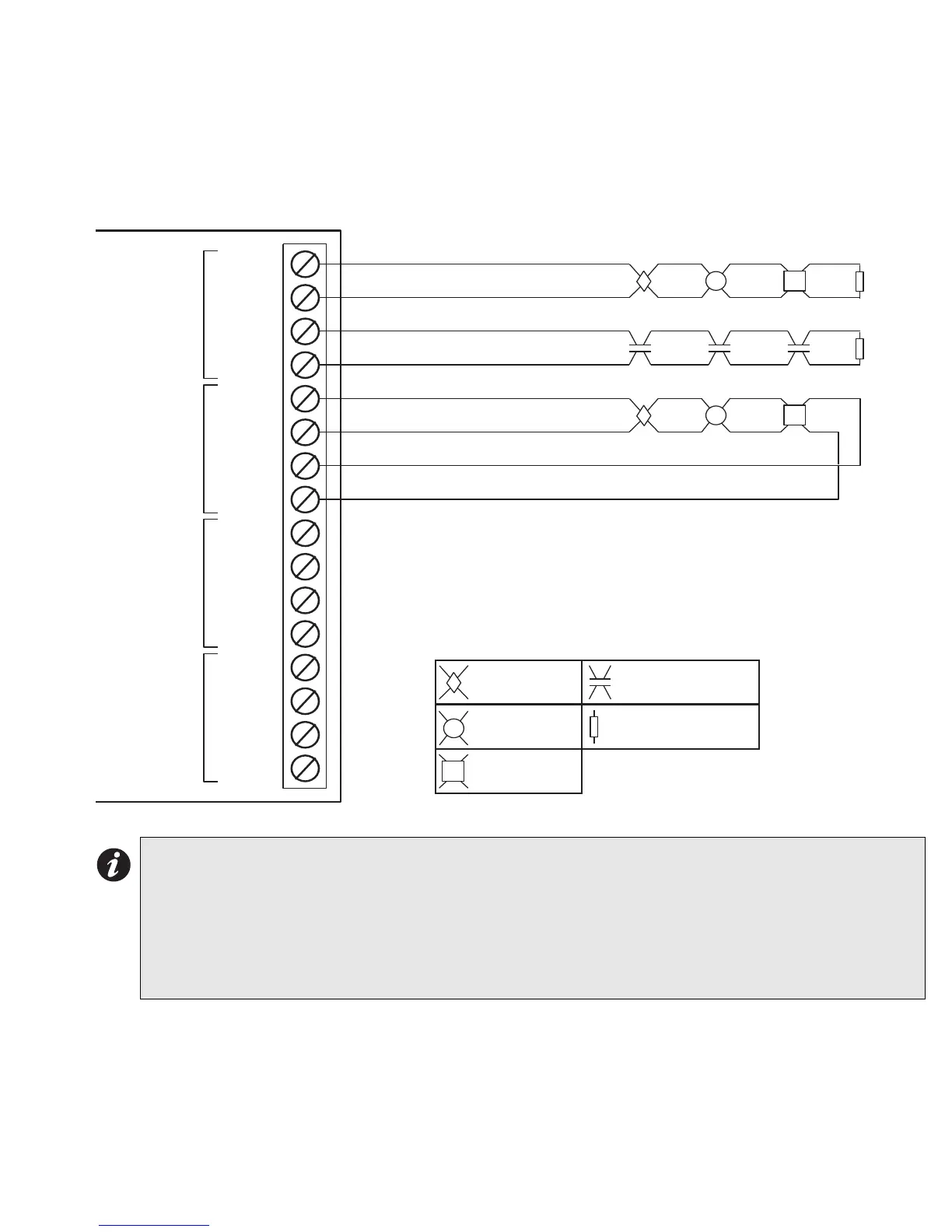

Figure 33: Hardwire Detection Module (DM-1008A) Terminal Connections
Note:
• Terminal blocks are “depluggable” for ease of wiring.
• All power limited circuits must use type FPL, FPLR, or FPLP power limited cable.
• Initiating circuits are fully supervised and rated for 22 VDC, 3 mA standby, 5 mV ripple, 50 mA max alarm.
They may be configured as required. The alarm threshold is 21 mA. Maximum loop resistance is 100 ohms,
50 ohms per side.
• All conventional hardwire initiating circuits are Compatibility ID "A".
SUPERVISORY OR
WATERFLOW
SWITCH (NO)
HEAT DETECTOR
Legen d: See Appendix B for compatible devices.
SMOKE DETECTOR
3.9K 1/2W ELR LISTED S5434
MODEL MP-300
MANUFACTURED BY MIRCOM
INI1+
INI1-
INI2+
INI2-
INI3+
INI3-
INI4+
INI4-
STYLE B/ D
INI2
STYLE B/ D
INI1
PULL STATION
STYLE B
(CLASS B)
WIRING
STYLE B
(CLASS B)
WIRING
STYLE D
(CLASS A)
WIRING
SUPERVISED INITIATING CIRCUIT #2
(SUPERVISORY OR WATERFLOW ZONE)
(POWER LIMITED)
SUPERVISED INITIATING CIRCUIT #1
(ALARM ZONE) (POWER LIMITED)
SUPERVISED INITIATING CIRCUIT #3
(ALARM ZONE) SEE STYLE D NOTE (POWER LIMITED)
INI5+
INI5-
INI6+
INI6-
INI7+
INI7-
INI8+
INI8-
STYLE B/ D
INI4
STYLE B/ D
INI3
Style D Note: Initiating circuits in a series
FX-2000 must be either all Style B (Class B)
or Style D (Class A). If Style D is selected, the
number of circuits is cut in half.

Mircom FX-2000 Specifications

General

Type	Fire Alarm Control Panel
Maximum devices per loop	99
Power Supply	120 VAC, 60 Hz
Battery Backup	24VDC, 7Ah
Programming	Via PC
SLC Loops	1
Operating Temperature	0°C to 49°C (32°F to 120°F)
Compatibility	Mircom devices
Display	LCD
