FX-2000 Series Installation and Ope
ration Manual
11

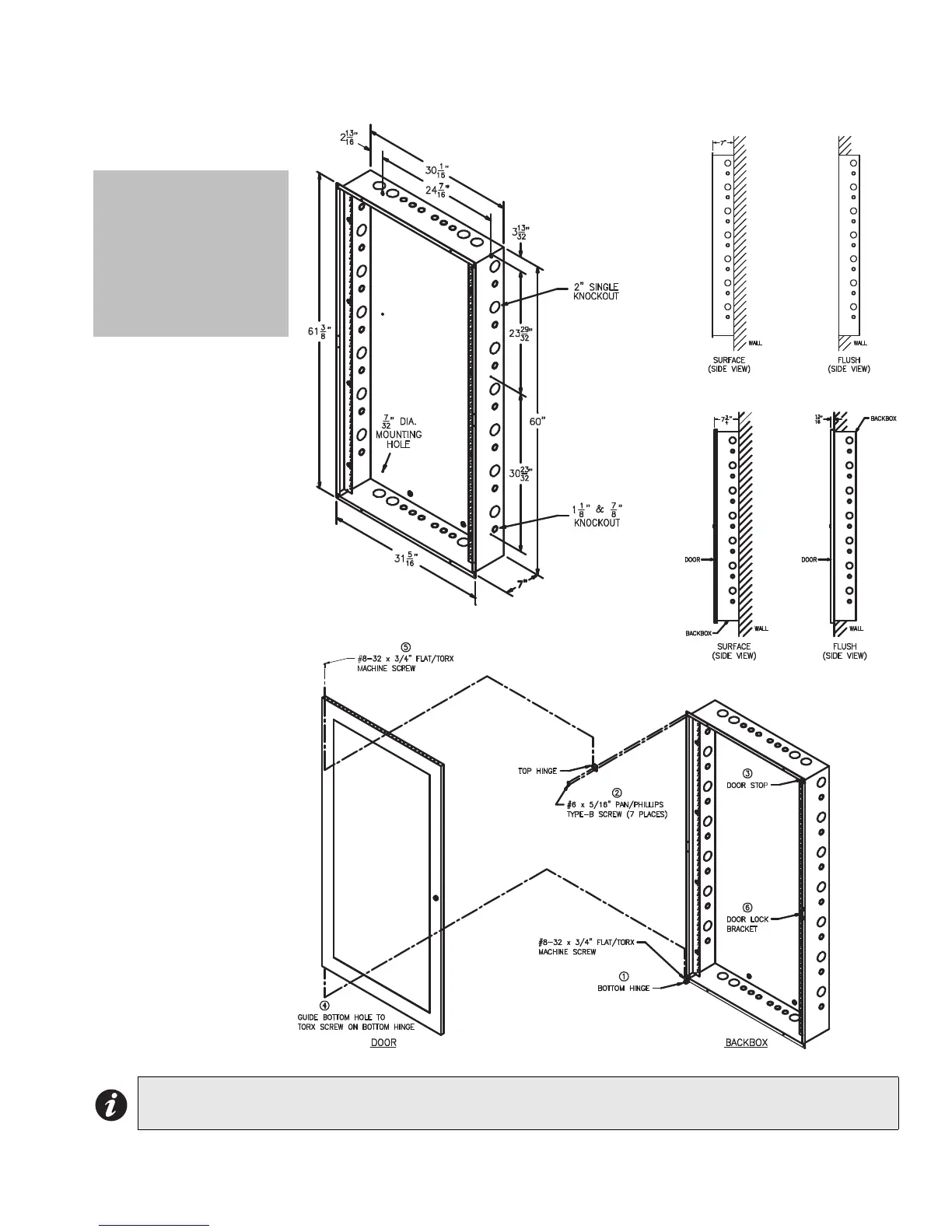

Figure 6: Installation Instruct
ions and Dimens
ions for BB-5014
Note:
Mount the power supply in the sa
me manner as shown in
Figure 5
on p
age 10.
Backbox
BB-5014 Backbox
DOX-5014M Metal Door
Backbox with DOX-5014M Door
Material:
Cold rolled steel
16GA (0.059”) th
ick
for backbox
14GA (0.075”) th
ick
for door
Finish:
Painted except for
hinges
16
18
