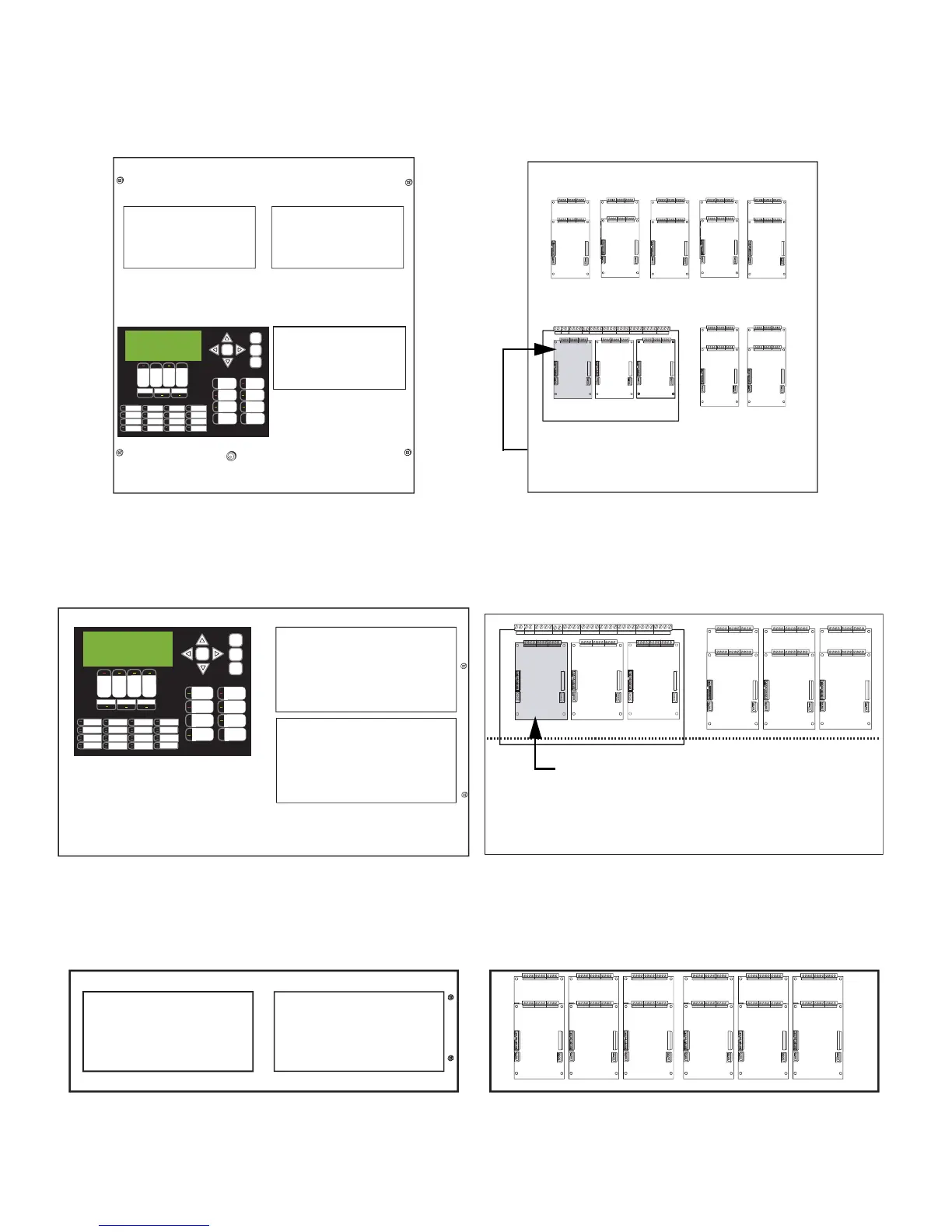

Display and Adder Modules Mounting Locations
14
FX-2017-12 Mid-size Main Chassis
Mounts in the BBX-1072A Enclosure, and supports three display modules and 17 adder modules.
FX-2009-12 Large Main Chassis
Mounts and occupies four display positions in BB-5008 or BB-5014 Enclosures, and supports two display modules and
nine adder modules.
ECX-0012 Expander Chassis for FX-2009-12
Mounts and occupies two display positions in BB-5008 or BB-5014 Enclosures, and supports two display and 12 adder
modules.
Exterior View Interior View
Exterior View Interior View
Exterior View Interior View
Cutout to mount
display module
Cutout to mount
display module
Cutout to mount
display module
AC LINE
CIRCUIT
BREAKER
ALARM
QUEUE
SUPV.
QUEUE
TROUBLE
QUEUE
MONITOR
QUEUE
A.C. ON
CPU FAULT
GND FAULT
SIGNAL
SILENCE
GENERAL
ALARM
ACKNOW-
LEDGE
FIRE
DRILL
SYSTEM
RESET
LAMP
TEST
ENTER
MENU
CANCEL
INFO
LED 0
LED 1
LED 2
LED 3
LED 4
LED 5
LED 6
LED 7
LED 8
LED 9
LED 10
LED 11
LED 12
LED 13
LED 14
LED 15
CONFIGURABLE
SWITCH/LED 3
CONFIGURABLE
SWITCH/LED 7
Mircom FX-2000
Fire Alarm Control Panel
Normal Condition
April 25, 2003
1
23
45
67
89101112
1314151617
FX-2000 Main Board
Slot is reserved for PR-300 or UDACT-
300A. If not required, this slot can be used
to mount any of the adder modules.
ALARM
QUEUE
SUPV.
QUEUE
TROUBLE
QUEUE
MONITOR
QUEUE
A.C. ON
CPU FAULT
GND FAULT
SIGNAL
SILENCE
GENERAL
ALARM
ACKNOW-
LEDGE
FIRE
DRILL
SYSTEM
RESET
LAMP
TEST
ENTER
MENU
CANCEL
INFO
LED 0
LED 1
LED 2
LED 3
LED 4
LED 5
LED 6
LED 7
LED 8
LED 9
LED 10
LED 11
LED 12
LED 13
LED 14
LED 15
CONFIGURABLE
SWITCH/LED 3
CONFIGURABLE
SWITCH/LED 7
Mircom FX-2000
Fire Alarm Control Panel
Normal Condition
April 25, 2003
Cutout to mount
display module
Cutout to mount
display module
4
231
56
789
FX-2000 Main Board
Slot is reserved for PR-300 or UDACT-
300A. If not required, this slot can be used
to mount any of the adder modules.
Cutout to mount
display module
Cutout to mount
display module
1
2
34
56
789101112
