Chapter 11
276
Transferring the system configuration
The Upload and verify result window is opened. Click Yes below at the question
Set device to verified? if the displayed configuration is the expected
configuration. The system is then considered to be verified.
The configuration of the connected elements, for example EFI sensors, is not
included in the process. Their verification is carried out in the same way as the
configuration and verification via the serial interfaces of the devices.
If differences between the project data and the read-back configuration data are
detected, a corresponding message including information about possible actions
is displayed. Verification of the configuration is not possible then. Observe the
information in the error message for the further procedure. Terminate the dialog
box by clicking Close.

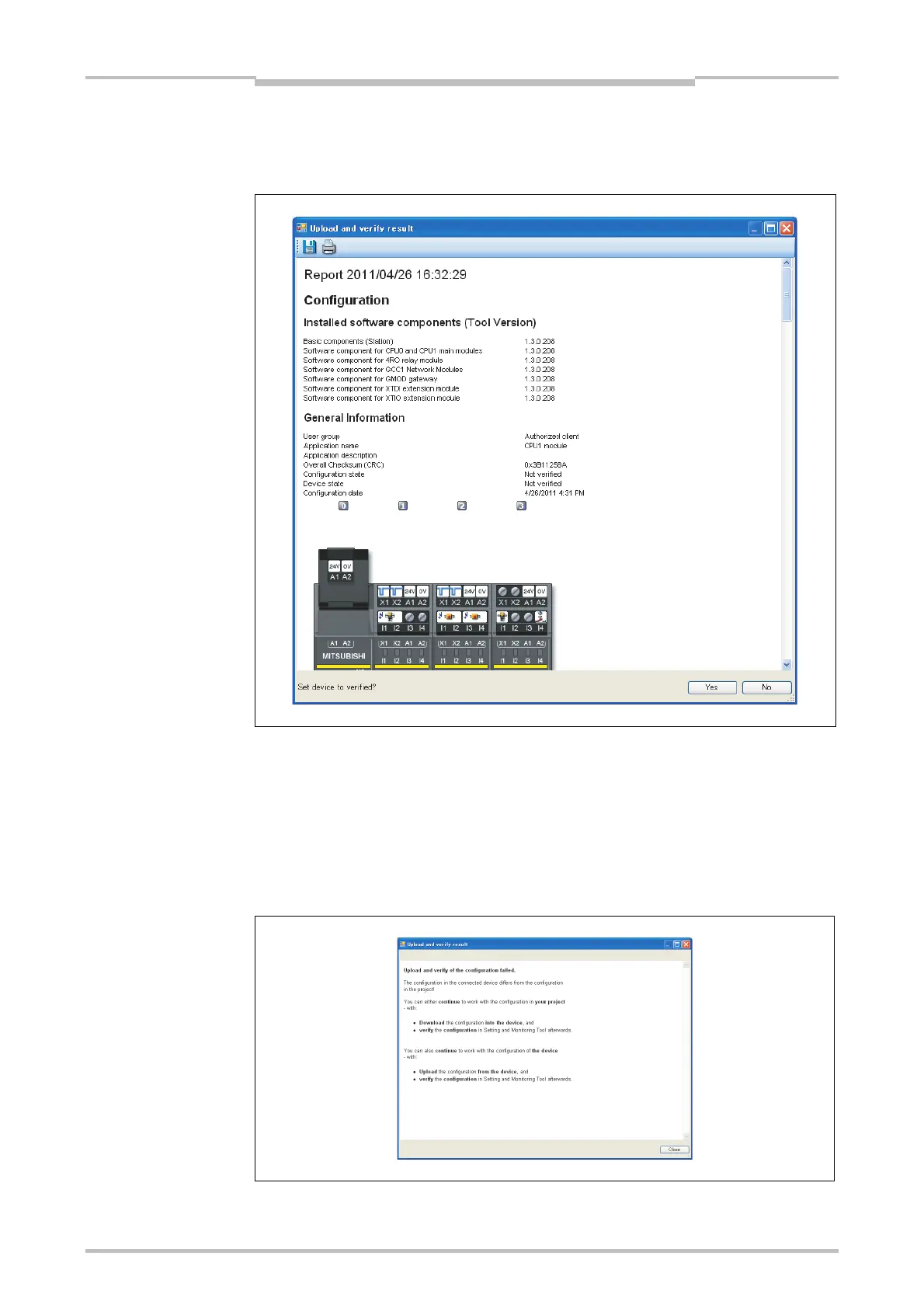

Figure 263:
Setting a device to verified.
Note
Figure 264:
Upload and verify failed
