Mitsubishi 4G9 series User Manual

4G9 ENGINE (E-W) -
Front Case and Oil Pump
11A-10-1
PWEE9502
E
May 1995Mitsubishi Motors Corporation

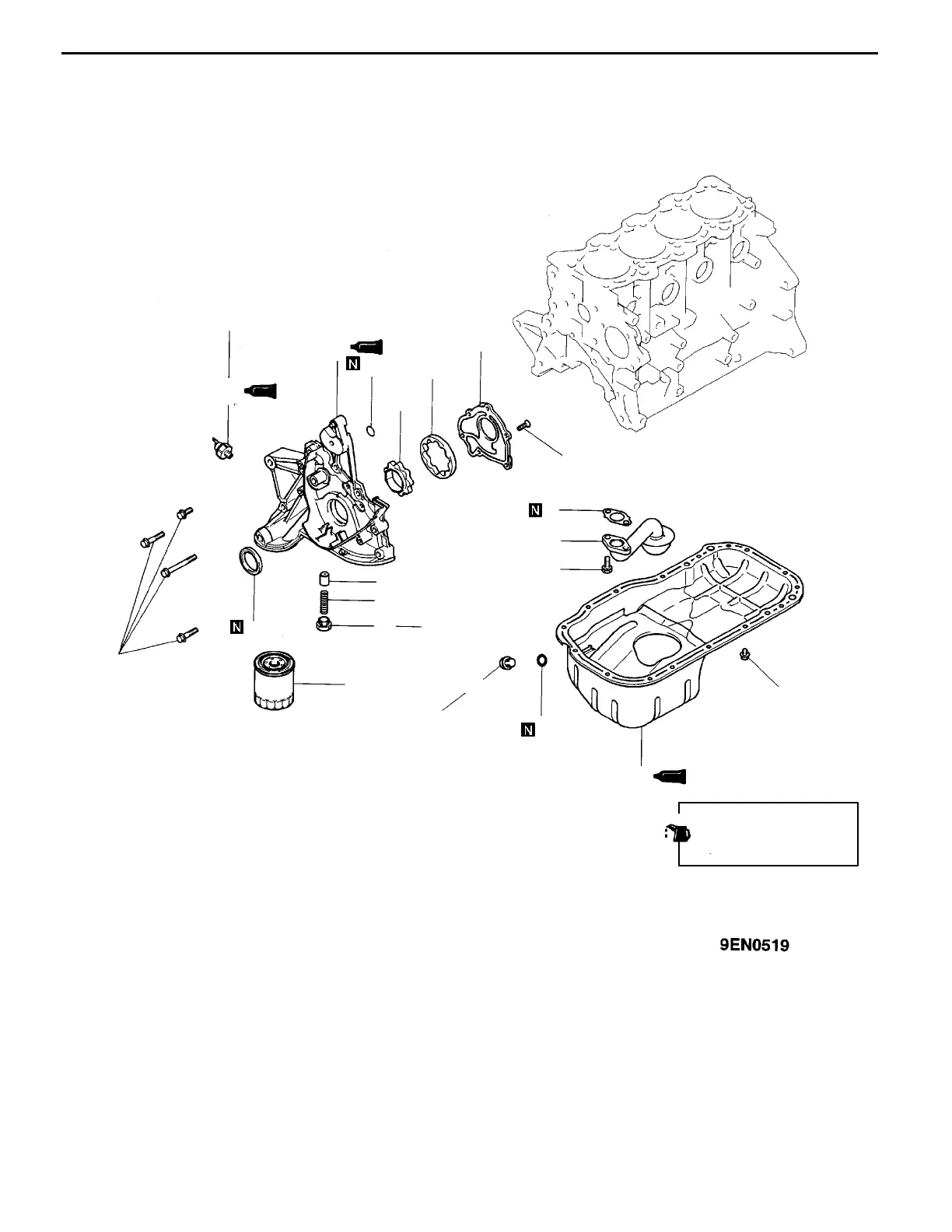

10. FRONT CASE AND OIL PUMP
REMOVAL AND INSTALLATION <SOHC>
10 Nm
10 Nm
19 Nm
44 Nm
14 Nm
39 Nm
7Nm
Apply engine oil to all
moving parts before
installation.
5
4
3
2
11
8
9
10
1
12
13
16
15
14
7
6
Removal steps
"
F
A
1. Oil pressure switch
"
E
A
2. Oil filter
3. Drain plug
4. Drain plug gasket
A
A
""
D
A
5. Oil pan
6. Oil screen
7. Oil screen gasket
8. Relief plug
9. Relief spring
10. Relief plunger
"
C
A
11. Oil seal
"
B
A
12. Oil pump case
13. O-ring
14. Oil pump case cover
A
C
""
A
A
15. Outer rotor
A
C
""
A
A
16. Inner rotor
