Mitsubishi 4G9 series

4G9 ENGINE (E-W) -
Exhaust Manifold (GDI)
11A-6b-1

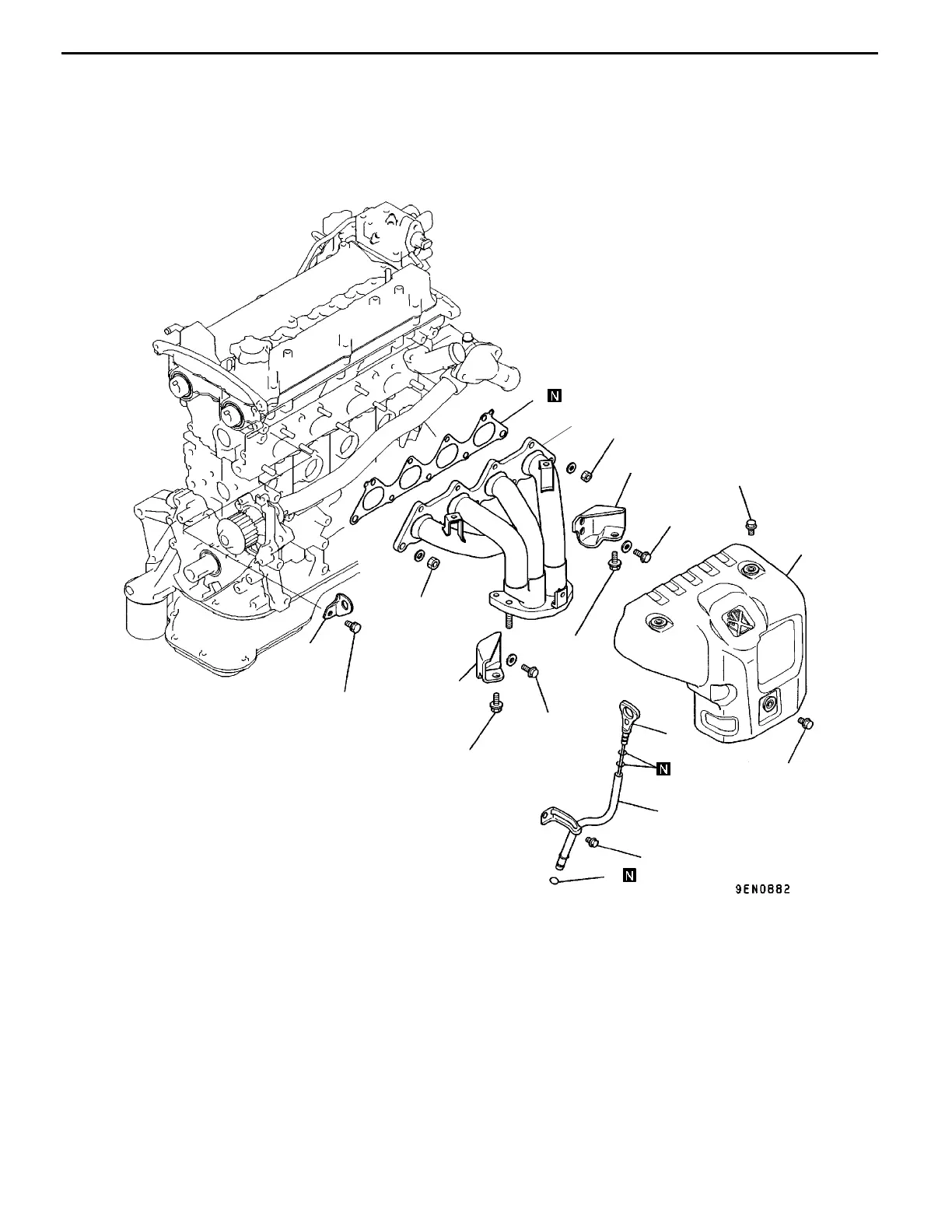

6b. EXHAUST MANIFOLD (GDI)
REMOVAL AND INSTALLATION <For CARISMA>
17 Nm
35 Nm
18 Nm
13 Nm
8
1
9
5
6
7
3
2
4
29 Nm
13 Nm
13 Nm
35 Nm
18 Nm
18 Nm
Removal steps
1. Oil level gauge
2. Oil level gauge guide
3. O-ring
4. Exhaust manifold cover
5. Engine hanger
"
A
A 6. Exhaust manifold bracket A
"
A
A 7. Exhaust manifold bracket B
8. Exhaust manifold
9. Exhaust manifold gasket
PWEE9502-E
E
Dec. 1998Mitsubishi Motors Corporation Revised
